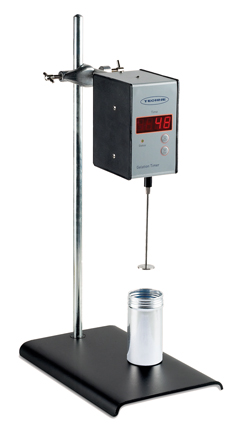

Bibby Scientific Gelation Timers (GT-5 & GT-6)


  2 digital models available; 1rpm and 10rpm
  Stops automatically when gelation occurs
  Easy to use, push button display
  Can be mounted on a retort stand for ease of use
  Plungers are removable for easy cleaning
  Sample cups and disposable plungers are available
  3 year warranty

Bibby Scientific has been setting the benchmark for gelation timing for almost 60 years. In fact, several British Standards for this methodology have been written using our equipment. Gelation timers are used to measure the transition from liquid to solid during polymerisation.

Both models have digital timers, with the time in 1 minute increments (GT-5) up to 9999 minutes or in tenths of a minute (GT-6) up to 999.9 minutes. A bright LED display shows the time to the nearest minute or tenth of a minute, and an audible bleep and light confirm completion of gelation.

The Bibby Scientific Gelation Timer is the ideal instrument for accurate measurement and quality control for the gelation of resin or adhesive based samples in the laboratory. Every unit is supplied with the usual Bibby Scientific quality guarantee, including a calibration certificate for traceability, before leaving the factory each instrument is calibrated and certified.




Data Sheet
Manual

ParameterGT-5GT-6
Digital timer increment1 minute6 seconds
Maximum time9999 minutes999.9 minutes
Dimensions L x W x H (mm)94 x 69 x 11994 x 69 x 119
Voltage230V, 50Hz230V, 50Hz
Power5W5W
Shipping Weight7.7kg7.7kg

Ordering Information


FGT5 GT-5 gelation timer, 1opm (230V, 50Hz) & steel plunger
FGT5 120V 60 GT-5 gelation timer, 1opm (120V, 60Hz) & steel plunger
FGT5Y GT-5 gelation timer, 1opm (100V, 50Hz) & steel plunger
FGT6 GT-6 gelation timer, 10opm (230V, 50Hz) & steel plunger
FGT6 120V 60 GT-6 gelation timer, 10opm (120V, 60Hz) & steel plunger
FGT6Y GT-6 gelation timer, 10opm (100V, 50Hz) & steel plunger

Gelation Timer Accessories

F0985 22mm diameter stainless steel plunger (reusable)
F0979 19mm diameter stainless steel plunger (reusable)
F0982 16mm diameter stainless steel plunger (reusable)
F1794 22mm diameter glass plungers (disposable, pack of 100 ), includes adapter
F1795 Replacement disposable plunger adapter
F7846 Aluminium sample containers with screw caps (pack of 234)



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
