Bibby Scientific MCS Biological Stirrers
The stirrers are designed for optimal suspension cell culture and the use of microcarriers.
A system comprises of a stirrer platform and a number of glass culture vessels.
Five stirrer platform sizes are available, along with 7 sizes of culture vessel
Speed range from 0 to 80rpm
Softstart for slow acceleration and deceleration
Interval setting option
Stainless steel stirrer platform with locators for the culture vessels
Designed for incubator environments
Unique stirring action
The culture vessels incorporate a unique base design which, together with the bulb-ended
stirrer, ensures that the cells are lifted into suspension at the lowest possible speeds. This gentle
stirring action promotes high cell yields.
The stirrers create virtually no heat so there is negligible heat transfer from the magnetic drive
to the culture vessel, making the system suitable for use in both incubators and cold rooms.
Calibrated speed control and interval stirring
Cell attachment to microcarriers and high cell yields are ensured by the special softstart/stop
design and interval stirring option. The former ensures slow acceleration and deceleration of
the stirrer, avoiding excessive turbulence in the culture media and eliminating cell damage.
The interval stirring can be used during the attachment phase to further reduce agitation of
the media or when culturing particularly fragile cells.
|
Technical Specifications
Speed
Speed range - 0 to 80rpm
Speed setting accuracy - < +/- 3rpm
Softstart speed control - 20 second acceleration/20 second deceleration
Interval stirring
Variable on-time - 6 seconds to 5 minutes
Variable off-time - 2 minutes to 2 hours
Limited operating conditions - 40 degC and 95% relative humidity (non-condensing)
Power supply - Dual Voltage 230/110V 50/60Hz
Nominal power consumption - 2W
Fuse rating - 100mA |
|

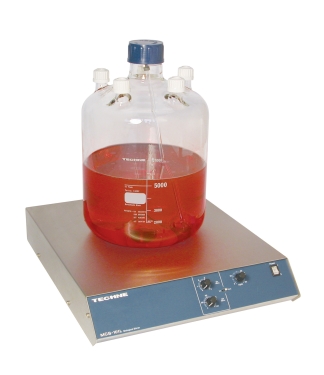

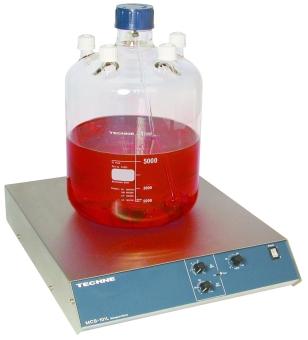

MCS-101L
This product is now obsolete.
Accommodates one large vessel; either 3 or 5 litres
Strong, rugged and lightweight
|
|

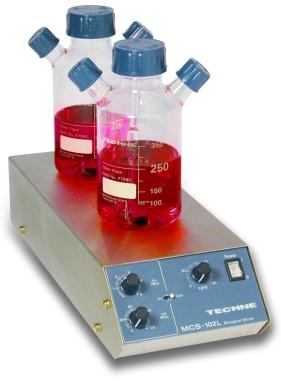

MCS-102L
Holds up to two 1 litre culture vessels
Small, light and compact and space saving
|
|

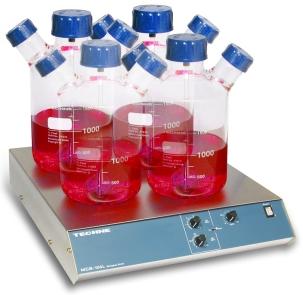

MCS-104L
Holds up to four 1 litre cultures vessels
Strong, rugged and lightweight
|
|
Data Sheet
Manual
Ordering Information
MCS-101L biological stirrer FMCS101L
MCS-102L biological stirrer FMCS102L
MCS-104S biological stirrer FMCS104S
MCS-104L biological stirrer FMCS104L
MCS-104XL biological stirrer FMCS104X
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
