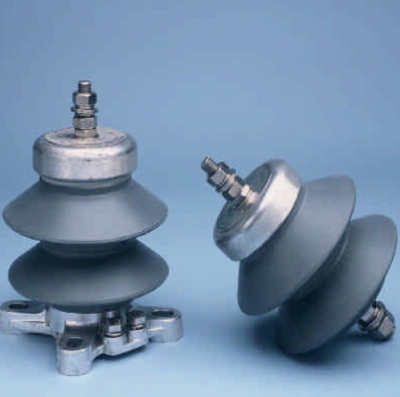

Bowthorpe Polymeric DC Traction Railway Surge Arrester (HE60MC Range)

Home › Lightning Safety › Bowthorpe Polymeric DC Traction Railway Surge Arrester (HE60MC Range)

The arrester has a 10kA nominal discharge current and 100kA duty cycle performance to EN 50123-5- 2003. The patented void free construction of this arrester design results in a unit with strength which is impervious to the ingress of moisture.

The arrester has the following features:

No internal airspace so no moisture ingress
Vandal proof
High cantilever and torsional strength
Non-explosive failure mode
Low weight and small size
Resistant to transport damage and careless handling
Easy to install

Electrical Performance

Classification (8/20 us nominal discharge current) -10,000 Amps
Voltage Rating -1kV to 4.9kV DC
High Current Operation Duty -100kA 4/10us
High Current Single Impulse Energy - 2.3kJ/kV at Ur
Operating Duty Cycle - 2 shots hi-current followed by the voltage profile Ur (300s) then Uc- (1800s) as per EN50123-5 2003 clause 4.7.5.4 and figure 4.1 to prove thermal stability.

Data Sheet

For pricing or further information, please fill out the ENQUIRY FORM or contact us using the details below.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
