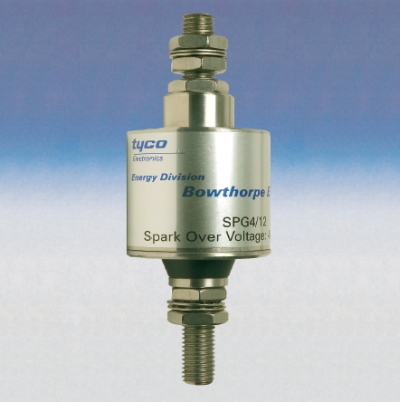

Bowthorpe Spark Gap Railway Surge Arrester (SPG4 Range)
The Bowthorpe EMP SPG4 Spark Gap is designed for use with traction circuits to provide virtually instantaneous protection of
both equipment and personnel from power system faults. The unit also provides protection against lightning generated voltages
which would otherwise cause damage to signalling and cable circuits.
The SPG4 is constructed in stainless steel of rugged design allowing the SPG to be installed in harsh environments such as
track side locations without additional weather protection.
Suitable for use on circuits where standing/induced voltages do not exceed 110v RMS. Fast operation - Typical 5 microseconds with 11kA fault current. Internal spark gap module unit can be replaced using a special tool after fault current operation. Fail safe feature ensures safety to personnel and equipment. Service proven performance. High internal impedance with low capacitance - does not interfere with track signalling circuits.
Technical Characteristics
The SPG4 Spark Gap operates to short circuit with
power system fault current. All lightning induced
overvoltages are passed to earth without permanent
connection to earth.
Typical Applications
Protection between overhead catenary structure
earth and system earth. Protection between indirectly earthed systems and
system or ground earth. Protection of single bonded power cable circuits. Protection of intermediate junction on cross bonded
power cable systems. Protection of cathodic protection power supplies. Protection of low voltage DC power supplies.
Technical Data
Max Open Circuit Voltage 300v RMS Min Spark Over Voltage 50/60Hz 400v RMS Max Spark Over Voltage 50/60HZ 900v RMS 0.1 Second Current Carrying Capacity 10kA 0.5 Second Current Carrying Capacity 5kA Time to Gap Short Circuit 5 microseconds High Current Withstand based on 4/10 Microsecond Wave 65kA (2 shots) Number of Operations based on 10kA 8/20 Microsecond Wave 20
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
Suitable for use on circuits where standing/induced voltages do not exceed 110v RMS.
