BW MicroDock II BW MicroDock II BW MicroDock II

BW MicroDock II

The most cost effective way to manage the calibration and bump testing of Honeywell Analytics portable gas detectors is through the BW MicroDock II automated test and calibration system.

Key Features

  • Quick and easy compliance - automatically maintain accurate records
  • Automatic bump testing, calibration, record keeping and charging
  • One base station with one AC outlet supports up to six modules to suit your application
Get a Quote
BW Technologies

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Fully portable and easily expandable, the MicroDock II requires no computer and provides simultaneous management of up to six modules. Minimize expenses and maximize productivity with the MicroDock II.

Quick Specs:

  • • Size 8.3 x 10.4 x 3.2 in. / 21.2 x 26.3 x 8.2 cm (base station plus one docking module)
  • • Power supply 6V wall adaptor or four C-cell batteries
  • • Real-time clock provides time and date stamp for "last calibratio" and "last bump test" data
  • • Data storage Automatic (instrument and base station)
  • • MultiMediaCard data storage system

Module Configuration
  • Base station with GasAlert Extreme module and 2 inlets* DOCK2-2-1D-00-G

  • Base station with GasAlertMicroClip Series module (charging) with power supply and 2 inlets DOCK2-2-1C1P-00-G

  • Base station with GasAlertMicroClip Series module (charging) with no power supply and 2 inlets DOCK2-2-1P-00-G

  • Base station with GasAlertQuattro module (charging) with no power supply and 2 inlets DOCK2-2-1N-00-G

  • Base station with GasAlertQuattro module (charging) with power supply and 2 inlets DOCK2-2-1C1N-00-G

  • Base station with GasAlertMax XT II module (charging) with power supply and 2 inlets DOCK2-2-1C1M-00-G

  • Base station with GasAlertMax XT II module (charging) with no power supply and 2 inlets DOCK2-2-1M-00-G

  • Base station with GasAlertMicro 5 Series module (charging) with power supply and 2 inlets* DOCK2-2-1C1K-00-G

  • Base station with GasAlertMicro 5 Series module (charging) with power supply and 3 inlets* DOCK2-3-1C1K-00-G

  • Base station with GasAlertMicro 5 Series module (non-charging) with 2 inlets* DOCK2-2-1J-00-G

  • Base station with GasAlertMicro 5 Series module (non-charging) with 3 inlets* DOCK2-3-1J-00-G

Accessory Docking Modules
  • Base station with 2 gas inlets without power supply DOCK2-2-00-G

  • Base station with 3 gas inlets without power supply DOCK2-3-00-G

  • Base station with 4 gas inlets without power supply DOCK2-4-00-G

  • Base station with 5 gas inlets without power supply DOCK2-5-00-G

  • GasAlert Extreme docking module* DOCK2-0-1D-00-G

  • GasAlertMicroClip Series docking module (charging with power supply) DOCK2-0-1C1P-00-G

  • GasAlertMicroClip Series docking module (charging - no power supply) DOCK2-0-1P-00-G

  • GasAlertQuattro docking module (charging - no power supply) DOCK2-0-1N-00-G

  • GasAlertQuattro docking module (charging with power supply) DOCK2-0-1C1N-00-G

  • GasAlertMax XT II / GasAlertMax XT docking module (charging with power supply) DOCK2-0-1C1M-00-G

  • GasAlertMax XT II / GasAlertMax XT docking module (charging - no power supply) DOCK2-0-1M-00-G

  • GasAlertMicro 5 Series docking module (charging with power supply)* DOCK2-0-1C1K-00-G

  • GasAlertMicro 5 Series docking module (charging)* DOCK2-0-1K-00-G

  • GasAlertMicro 5 Series docking module* DOCK2-0-1J-00-G

Accessories and Spares
  • Network USB communication device DOCK2-LAN-1P

  • Demand flow regulation for disposable bottles 0.3 LPM chrome brass REG-DF-1

  • Wall mount adaptor (kit of 2) modules and base station WMA-DOCK

  • 12 Vdc Vehicle adaptor cable for base station power GA-V-CHRG4

  • Replacement power supply for charging modules POWER-UPS-01

Service Parts

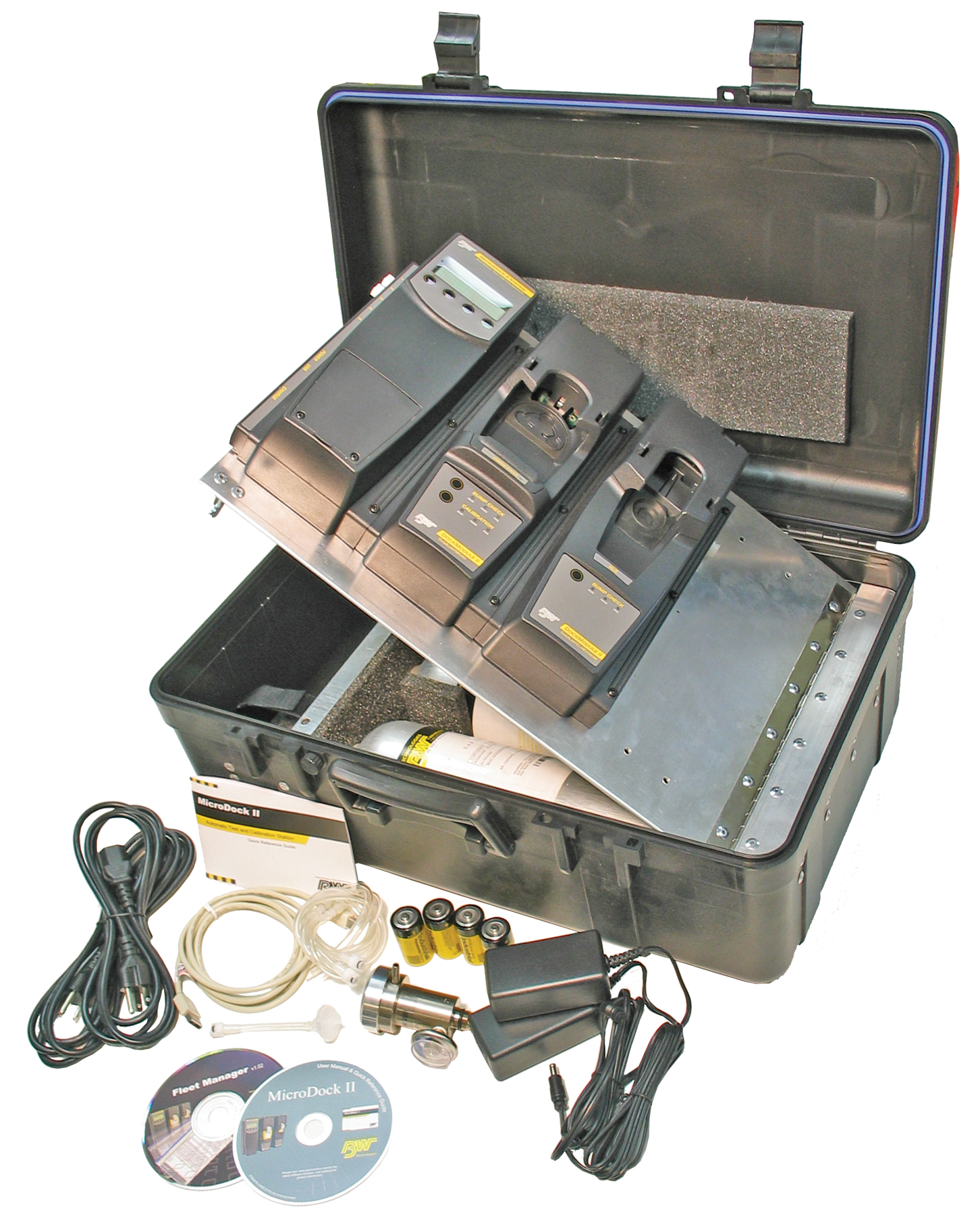

  • Heavy duty carrying case with wheels with space for three modules and three 58 L gas cylinders DOCK2-CC2

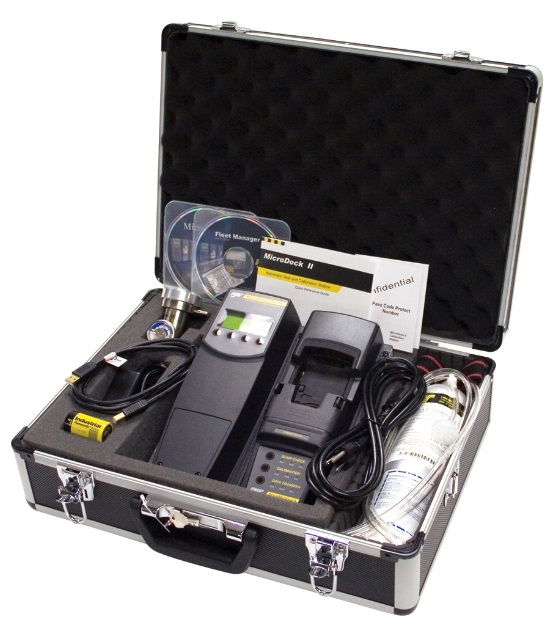

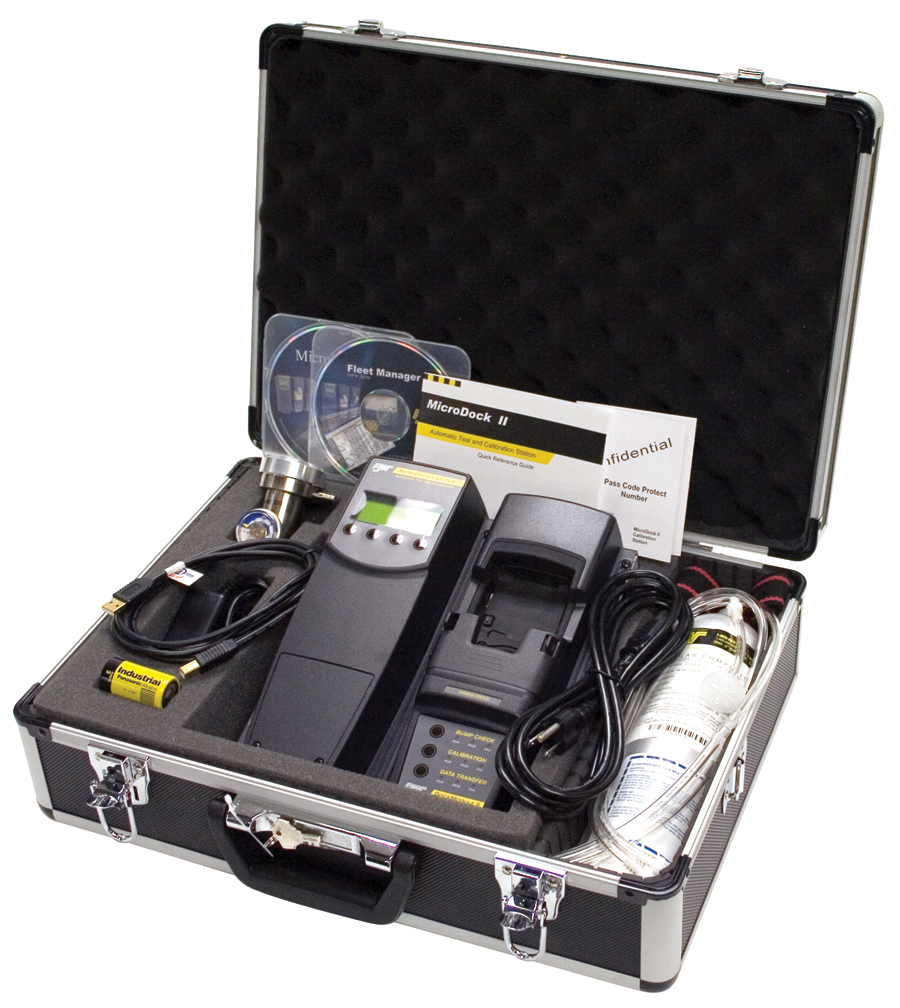

  • Hard-sided carrying case with space for one module and one 34 L gas cylinder DOCK2-CC1

  • Replacement diffusion cover adaptor DOCK2-DA-1

  • Replacement GasAlertMicro 5 Series docking module lid assembly DOCK2-M5LID

  • Replacement inlet filter DOCK-IF-1

  • Replacement multimedia card DOCK2-MMC

  • Replacement rubber grommet for GasAlertMax XT II docking module inlet slider XT-RGD-10

  • Replacement rubber seal for GasAlertMax XT II docking module inlet slider XT-RSD-10
