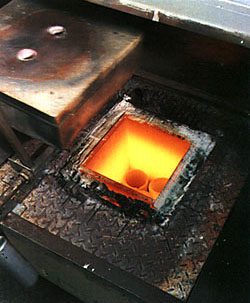

Construction:
The furnace case is constructed from rolled hollow steel section panelled
with zinc coated sheet finished with a hard wearing stoved epoxy polyester
powder coating. This outer case is built around a silicon carbide inner
chamber which is surrounded by refractory brickwork. The top surface
is also made of bricks and is protected by a steel plate. The furnace
lid is fixed to the main body of the furnace by a four bar hinge mechanism.
Heating elements:
Silicon carbide heating elements are positioned on four sides of the
furnace chamber.
Insulation: Robust
refractory brickwork of graded construction is used throughout to ensure
minimal heat losses whilst still ensuring strength of construction.
Controls: The temperature
is regulated by a three term microprocessor based controller which provides
temperature stability of +/-1°C. A back up two term overtemperature
controller protects the heating elements.
Model
SCF 1
Maximum temperature (degC)
1400
Maximum continuous working temperature (degC)
1350
Chamber dimensions (h x w x d - mm)
440 x 285 x 285
External dimensions (h x w x d -mm)
835 x 845 x 845
Please note that the control box is additional to these dimensions
Temperature sensors
Pt/Pt 13% Rh thermocouples
Maximum power rating (kW)
15
Power supply required
415/240V, 3 phase 4 wire & earth
Other voltages available on request
