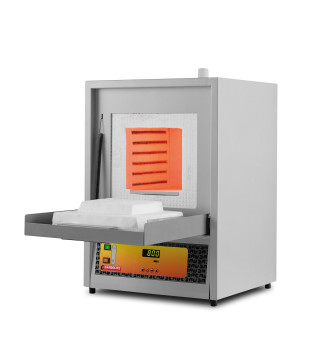

The ELF range bench-mounted with a maximum temperature of 1100°C and is available with chamber capacities of 6 and 14 litres. These furnaces are suitable for light duty general laboratory work.
The heating chamber is insulated with vacuum-formed low thermal mass insulation, which offers exceptional performance in achieving maximum temperature quickly and efficiently. A temperature of 1000°C is achieved in as little as 35 minutes. Semi-embedded free radiating wire wound elements are located on the two side walls - elements are not positioned in the hearth. A hard ceramic hearth is fitted as standard, which offers additional protection from spillage.
The drop down door can be used as a shelf when loading and unloading samples. The door insulation also acts as a trap for radiated heat, thus improving the chamber uniformity, whilst the air gap behind the plug minimises the external door temperature.
A ceramic chimney is fitted for ventilation of the chamber, but is not suitable for smoke/fume extraction.
If large volumes of fumes are to be generated by an ashing process, then a model from our dedicated ashing furnace range should be considered.
The digital Carbolite 201 PID controller is fitted as standard and has an adjustable single ramp to set point, as well as an in-built timer which allows for a delayed start or a fixed process duration.
Models in this range: ELF 11/6
ELF 11/14
ELF 11/23 These models are not designed for ashing/burn-off purposes - please see following bullet points for information.
For ashing furnace information, please click here.
For burn-off furnace information, please click here.
|
|
 Maximum operating temperature of 1100 DegC
Chamber capacity of 6, 14 or 23 litres
Powerful free radiating coiled wire elements on both sides of the chamber ensure good temperature uniformity
Constructed with rigidised low thermal mass insulation for rapid heating
Heats up to operating temperature in a quarter of the time of traditional "slab" designs
Hard ceramic hearth provides robust base, which can be replaced in the event of spillage
Drop down door can be used as shelf for loading/unloading
Postive break door safety switch isolates chamber from power supply, when the door is opened
Double skinned construction allows convection air flow to cool the outer case, to conform to EN61010 safety standard
Ideal for light duty applications requiring good thermal response
Applications in general industry include, ferrous metal heat treatments; annealing, hardening and tempering
Applications in quality control include, testing of component materials or finished products
Applications in coatings
manufacturing include, testing coatings for resistance to fire, and
longevity testing of finished coatings
|
