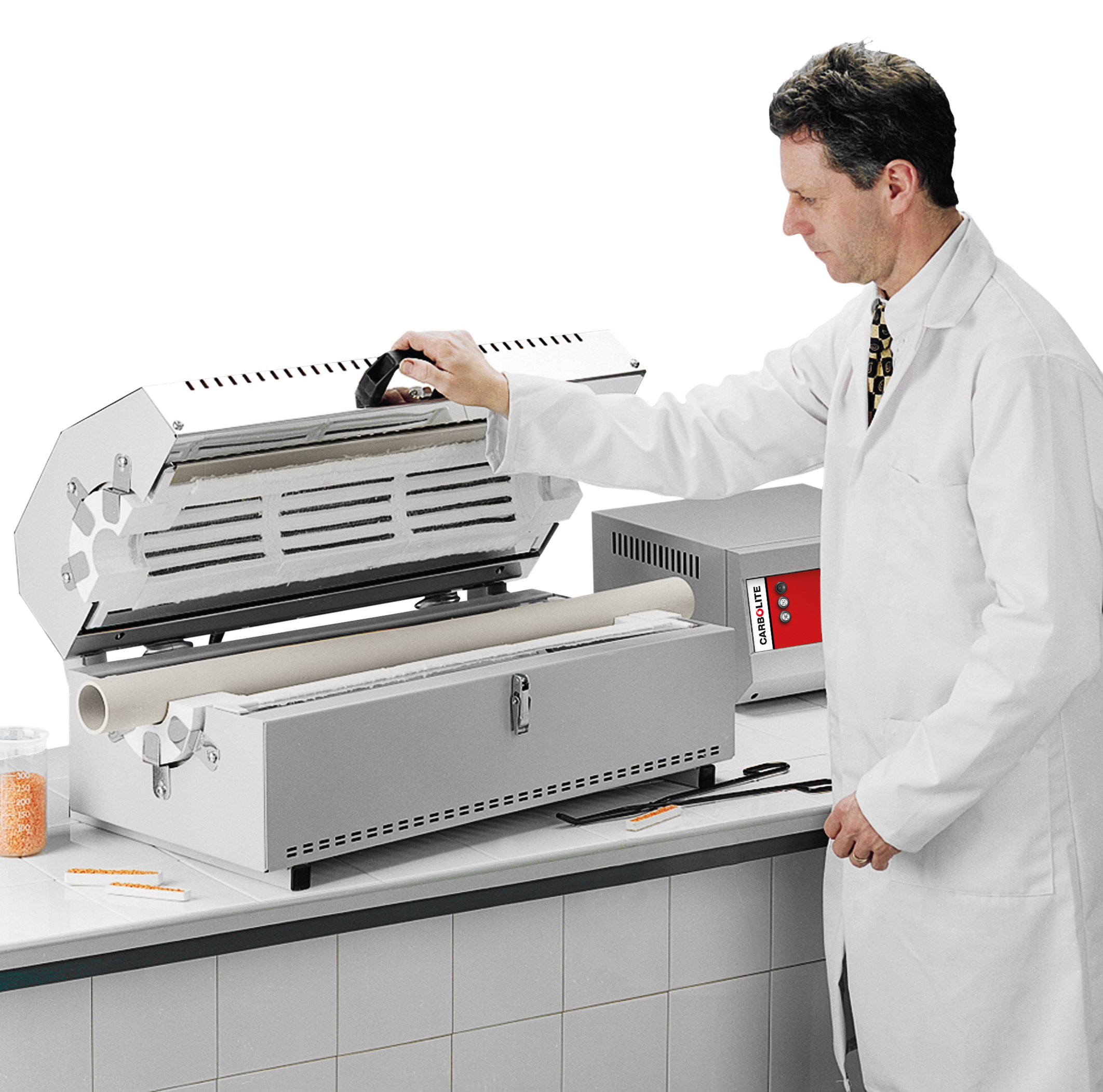

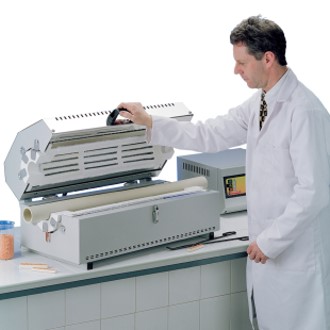

Maximum operating temperature 1200 DegC Tube diameters up to 110mm Heated lengths of 200, 300, 400, 600 and 900mm Resistance wire heating elements are semi-embedded in rigidised low thermal mass insulation A separate ceramic worktube is optional The split design offers the
flexibility to lower the furnace around a fixed item, such as a pipe
with flanges which is too large to pass through a solid tube furnace Removable half tube adapters allow rapid changes for different size worktubes or workpieces up to 110mm outer diameter Built on the horizontal base pictured left, with a separate control box Applications in general industry include, heat treatment of workpieces with unusual dimensions Applications in materials rsearch include testing of novel materials
Please
note - Product designs and specifications are subject to change without
notice. The user is responsible for determining the suitability of this
product.
