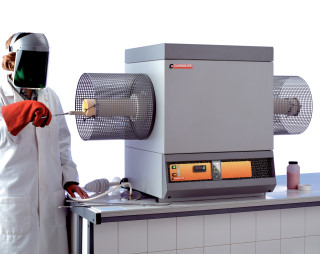

Carbolite TZF 1700 DegC & 1800 DegC Three Zone Tube Furnace
Maximum operating temperatures of 1700 DegC & 1800 DegC Accepts a worktube of 90mm outside diameter Heated length of 600mm These models utilise
molybdenum disilicide heating elements, arranged vertically around a
separate ceramic worktube to ensure excellent thermal uniformity Available for horizontal use only Can be adapted to allow a non-oxidising atmosphere or vacuum, by fitting a longer length worktube and end seals Applications in the ceramics
industry include disintegration, testing and analysis of cement
samples, refractory porosity tests, long term high temperature
temperature tests and firing & sintering of ceramic samples Applications in the semi
conductor industry include annealing silicon, silicon carbide &
nitride samples and solid state synthesis Applications in materials
research include testing of novel materials under strict temperature
and varying atmosphere conditions Applications in
instrumentation include testing of temperature sensors such as
thermocouples and PT100's, which may require enhanced axial thermal
uniformity
Please
note - Product designs and specifications are subject to change without
notice. The user is responsible for determining the suitability of this
product.
