All measurements for complete analysis: powers, harmonics, flicker, symmetry, remote control signals, etc.
  Self-explanatory use
  Touch screen user interface
  Data processing and report publishing software
  Monitoring as per EN 50160 standard
  Network connection

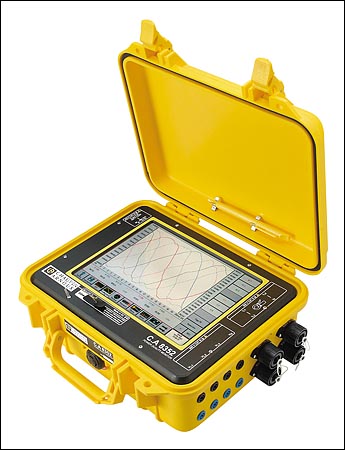

The CA8352 is an electrical network analysis instrument (harmonics, power, EN 50160, flicker, etc.). Easy to use, this instrument can be programmed and read at the touch of the screen, in the particularly user-friendly Windows environment.

The CA8352 includes FFT analysis functions and an oscilloscope mode for displaying curves. The instrument's configuration is defined by the user according to the option chosen:

  "RMS hp" (half-period) power analysis/ monitoring of minimum, maximum and average values calculated over a half-period (i.e. 10 ms) during the integration period defined (option 1);
  Flicker measurement/ EN 50160 standard analysis (option 2);
  Recording of transients (option 3);
  Data logger: analogue data recording (option 4)
  Location and recording of control and remote control signals (option 5)
  "Symmetry" option displaying the direct, indirect and homopolar values in U and I and indicating the unbalance of the system in terms of voltage and current/measurement and monitoring of load and short-circuit impedances on each phase of the electrical grid (option 6)
  Remote communication via ETHERNET of the various graphic screens and the data recorded (option 7)

The software (+USB cable) can be used to generate and print data reports.
