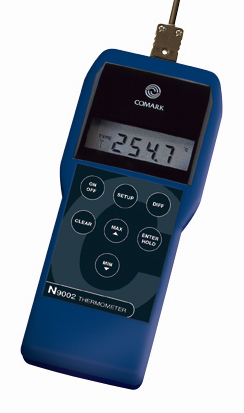

Electronic thermometer with eight thermocouple compatibility for maximum versatility in industrial, heating, ventilating, air conditioning and refrigeration applications.
Features
 Single and Dual (Differential) Inputs
Maximum and minimum temperature memory
Displays temperature in °C, °F and K
Hold function to freeze displayed reading
2 year warranty and free certificate of conformity
Calibration - BS EN 60584 thermocouples (ITS90)
Selectable auto switch off
Sub-miniature connector
Dust and waterproof to IP67
Specifications
Sensor Type - Thermocouple types K, N, T, J, R, S, E, B
Measurement Range for Thermocouple Type K - -200°C to +1372°C, -328°F to +2502°F
Measurement Range for Thermocouple Type N - -200°C to +1300°C, -328°F to +2372°F
Measurement Range for Thermocouple Type T - -200°C to +400°C, -328°F to +752°F
Measurement Range for Thermocouple Type J - -200°C to +1200°C, -328°F to +2192°F
Measurement Range for Thermocouple Type R and S - -50°C to +1767°C, -58°F to +3212°F
Measurement Range for Thermocouple Type E - -200°C to +1000°C, -328°F to +1832°F
Measurement Range for Thermocouple Type B - +100°C to +1820°C, +212°F to +3308°C
Calibration - BS EN 60584 thermocouples (ITS90)
Scales - °C, °F, K
Resolution - 0.1° below +1000°, 1° above (autoranging).
Accuracy at +23°C,+73°F
Type K Only <±0.1% of reading ±0.2°C/0.4°F
Connector Type - Sub-miniature
Operating Temperature Range - -25°C to +50°C, -13°F to +122°F
Environmental Protection - IP67 BS EN 60529 IEC 529
Battery Type - 2 x IEC LR6, Size AA
Battery Life - 200 hours
Dimensions - Length 183mm/7.2 inches, Width 68/79mm/2.68/3.11 inches, Depth 31mm/1.22 inches
Weight - 270g/9.5oz
|
N9002

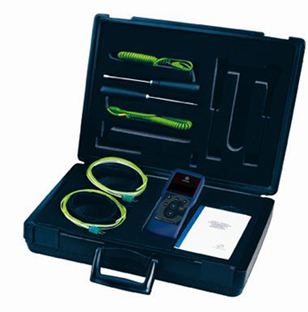

N9002 Heating and Ventilating Kit
A Heating and Ventilating kit version of the N9002 is also available.
This includes:
1 x N9002 Thermometer
1 x LC98 Case
2 x SK29M Surface Probes
1 x SK21M Surface Probe
1 x AK21M Air Probe
N9002 Heating and Ventilating Kit
|
