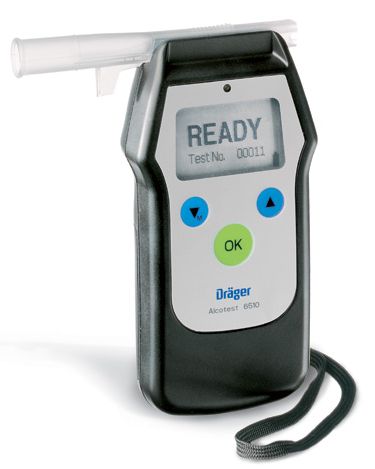

Drager Alcotest 6510

The Drager Alcotest 6510 offers law enforcement rapid and precise breath-alcohol analysis in a compact, user-friendly form. Due to the wide range of possible configurations, this handheld instrument can easily be adapted to meet law enforcement regulations and guidelines.

SAFE AND EASY TO USE - Rapid and intuitive operation make this instrument easy to use. The operator can obtain results safely and quickly with minimal distractions. All measurement functions are controlled by a single key, while menu navigation is controlled by two menu keys.

QUICK AND PRECISE ANALYSIS - The 1/4" DragerSensor technology is alcohol-specific and ensures accurate and precise measurement results under extreme conditions. Even at high concentrations, short reaction times of the sensor ensure that the measurement result displays quickly. Evidential measurement quality exceeds NHTSA's Model Specifications for Evidential Breath Testers.

PRACTICAL DESIGN - Compact dimensions and ergonomic design makes the instrument easy to use for right and left handed people. There is a safe distance between the hand of the operator and the mouth of the person to be tested.

OPTIMIZED INSTRUMENT INTERACTION - The instrument's backlit display prompts the operator with easily comprehensible plain text messages. Multi-color, lightemitting diodes and audible signals support the display.

"SLIDE 'N CLICK" MOUTHPIECE - The mouthpiece is designed to attach quickly and securely, even in poor light conditions. An air outlet which cannot be obstructed prevents any manipulation when the breath sample is given. The individually packaged mouthpieces can be attached to the instrument easily and hygienically. An integrated ejector tab makes mouthpiece removal effortless and sanitary. The mouthpiece also features a built-in spit trap to protect the operator from a subject's direct exhalation.

Data Sheet

Get a Quote

SAMPLING FLEXIBILITY - Various sampling modes are available for the instrument: automatic, passive, manual, and conditional (based on volume parameters.) Results can be displayed in over 10 different units of measure or in a Pass/ Alert/ Fail format.

LOW ENERGY CONSUMPTION - More than 1500 breath-alcohol tests can be conducted with two AA batteries.

INTEGRATED DATALOGGER - Menu keys allow quick access to the last 10 measurement results with their respective test numbers.

Ordering Information

  Drager Alcotest 6510 (measuring instrument, 3 mouthpieces, 2 AA batteries, wrist strap, plastic case) - 83 17 900
  Mouthpieces (pack of 100) - 68 10 690
  Leather pouch (black with belt attachment) - 83 17 911
  AlcoVIEW (PC software kit for communication with the Alcotest 6510) - 44 13 007


Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
