Drager X-am 3000

This product is now obsolete.

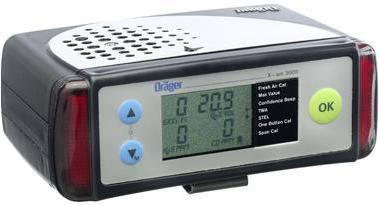

The X-am 3000 by Drager Safety is an innovative 2-4 gas warning instrument. Reliable monitoring of H2S, CO, O2 and combustible gases in ambient air can be achieved by this small lightweight instrument.

The instrument is ideally suited for gas monitoring for all applications and industries with a combination of a compact design with state of the art electronics.

Rugged and Durable

Protection against dust and water is standard and ensures reliable operation in all environments. The optional rubber-boot gives additional protection for the Drager X-am 3000 from bumps and hits.

Easy to use

A large display enables the easy identification of the measured values. The simple 3- button operation and an easy to use menu ensure intuitive operation.

The visible menu makes selecting and performing other functions quick and simple. After switching on the Drager X-am 3000, it performs a self-test.

Intelligent Sensors

The precalibrated electrochemical sensors, and the catalytic sensor are automatically recognized and provide precise and reliable measuring results. All Drager sensors show a fast and accurate response to changing gas concentrations.

Distinctive Alarms

In addition to a very loud audible alarm and a visual alarm, a vibrating alarm is integrated in the instrument.

The functionality and the battery status are monitored continuously and will, if necessary generate an alarm. TWA and STEL are also evaluated.

Different alarm cadences indicate pre and main alarm conditions.

Optional Built-in Pump

An optional internal pump which can be used together with 20 m / 66 ft. tubing is ideal for confined space applications. A convenient pump adaptor makes is easy to switch between pump and diffusion mode.

Meet individual power requirements

NiMH and alkaline batteries are available and can be interchanged. There are different charging options, including a car charger, to meet your specific requirements.

Useful software functions

A life signal assures full functionality of the instrument without a visual check by the operator.

Even if the peak value disappeared before it could get registered, the Drager X-am 3000 can recall all maximum values. When using a defined gas mixture, the instrument can be calibrated by pressing a single button.

Datalogger Option

Drager X-am 3000 can be fitted with a datalogger which records gas concentrations and alarms for 60 hours.


Drager X-am 3000 has worldwide approvals: ATEX, UL, CSA and IECEx.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
