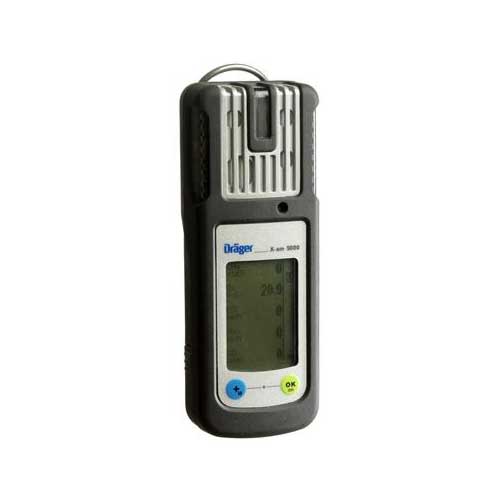

Drager X-am 5000

The Drager X-am 5000 is the smallest gas detector that is suitable for up to five gases. Part of a new generation of gas detectors, the X-am 5000 was designed especially for applications requiring personal monitoring.

This 1 to 5-gas detector reliably measures combustible gases and vapours as well as oxygen and harmful concentrations of CO, H2S, CO2, Cl2, HCN, NH3, NO2, PH3 and SO2. An added advantage of the X-am 5000 is a variety of special calibrations for the catalytic Ex sensor allow even more sensitivity when detecting specific combustible gases and vapours.

The X-am 5000 is also equipped with durable XXS sensor technology. The Drager X-am 5000's key feature is that it offers maximum security and extremely low operational costs.

Ergonomic mobile phone design - Despite its advanced functionality, the Drager X-am 5000's practical, mobile phone design and light weight make it comfortable for users to carry. Reduced to its essentials, the two button control panel and easy to follow menu system allow for intuitive use.

Durable electrochemical sensor technology - The longevity of the catalytic sensor and five year expected lifetime of the oxygen sensor are unique in the market. The Drager X-am 5000 is equipped with the latest in the miniaturised XXS generation of high performance electrochemical DragerSensors.

Flexible and adaptable sensor exchange - It is easy to exchange, upgrade or calibrate the sensors to other gases. The ability to customise the Drager X-am 5000's sensors makes more applications possible, including rental equipment.

Innovate Ex sensor with full range - functionality The catalytic Ex sensor measures 0-100 % LEL and 0-100 Vol.- % methane concentration. The calibration concept simplifies a calibration to vapours. When set for maximum sensitivity, the detector is even more reliable to warn about unknown hazards.

Robust and water-tight - The Drager X-am 5000 is tough: water and dust-resistant according to IP 67, the detector remains fully functional even after falling into water. The integrated rubber protection and shock-proof sensors ensure additional resistance to impact and vibration. Moreover, the Drager X-am 5000 is insensitive to electromagnetic interference.

External pump - The optional external pump, which operates with a flexible hose up to 20 M long, makes it possible to use the detector for pre-entry measurements for tanks, shafts, etc. The pump starts automatically when the detector is inserted.

Ordering Information

Dräger X-am 5000 consisting of: basic instrument with an integrated data logger and manufacturer‘s and calibration certificates. 8320000

A functional instrument must include up to 4 sensors and a power supply unit.


CatEx 125 PR 6812950
CatEx 125 PR Mining 6813080
DrägerSensor XXS O2 6810881
DrägerSensor XXS CO2 6810882
DrägerSensor XXS CO LC 6813210
DrägerSensor XXS CO HC 6812010
DrägerSensor XXS CO / H2 compensated 6811950
DrägerSensor XXS H2S 6810883
DrägerSensor XXS H2S LC 6811525
DrägerSensor XXS H2S HC 6812015
DrägerSensor XXS CO / H2S 6811410
DrägerSensor XXS NO 6811545
DrägerSensor XXS NO2 6810884
DrägerSensor XXS NO2 LC 6812600
DrägerSensor XXS SO2 6810885
DrägerSensor XXS PH3 6810886
DrägerSensor XXS PH3 HC 6812020
DrägerSensor XXS HCN 6810887
DrägerSensor XXS HCN PC 6813165
DrägerSensor XXS NH3 6810888
DrägerSensor XXS CO2 6810889
DrägerSensor XXS CI2 6810890
DrägerSensor XXS H2 6812370
DrägerSensor XXS H2 HC 6812025
DrägerSensor XXS OV 6811530
DrägerSensor XXS OV-A 6811535
DrägerSensor XXS Amine 6812545
DrägerSensor XXS Odorant 6812535
DrägerSensor XXS COCl2 6812005
DrägerSensor XXS Ozon 6811540
DrägerSensor XXS E CO 6812212
DrägerSensor XXS E H2S 6812213
DrägerSensor XXS E O2 6812211

Power supply units

NiMH power pack T4 8318704
Power pack & charging set 8318785
NiMH power supply T4 high capacity 8322244
Alkaline power pack T3 / T4 (without alkaline batteries) 8322237
Alkaline batteries T4 (2 pc.) for alkaline power supply 8322240
Alkaline batteries T3 (2 pc.) for alkaline power supply 8322239

Charging accessories

Charging module 8318639
Charging set basic consisting of one charging module and a single power supply (worldwide use) 8320333
Power supply with connection cable (worldwide use) for max. 20 charging modules 8315805
Single charger (worldwide use) for max. 5 charging modules 8316994
Single charger (worldwide use) for max. 2 charging modules 8315635
Car charging connection cable 12 / 24 V for a charging module 4530057
Vehicle charger mounting kit for a X-am 1/2/5x00 car charging module 8318779

Pump accessories

Dräger X-am 1/2/5x00 external pump 8319400
Hand pump adapter 8319195
Confined space entry set, with an external pump and 3 m hose 8319399
Carrying case Dräger X-am 1/2/5x00 external pump, without content 8319385

Calibration accessories

Calibration cradle for X-am 1/2/5x00 8318752
Dräger X-dock for Dräger X-am 1/2/5x00, not including gas cylinder 8321880
Dräger Bump Test Station for Dräger X-am 5000, not including gas cylinder 8319131
Dräger Bump Test Station for Dräger X-am 5000, complete with one test gas cylinder 58L (gases and concentration variable) 8319130
Nonane Checker for Dräger X-am 5000 8320080

Communication accessories

Dräger GasVision 8314034
Dräger CC-Vision Freeware
USB DIRA with USB cable, communication adapter infrared to USB 8317409

Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
