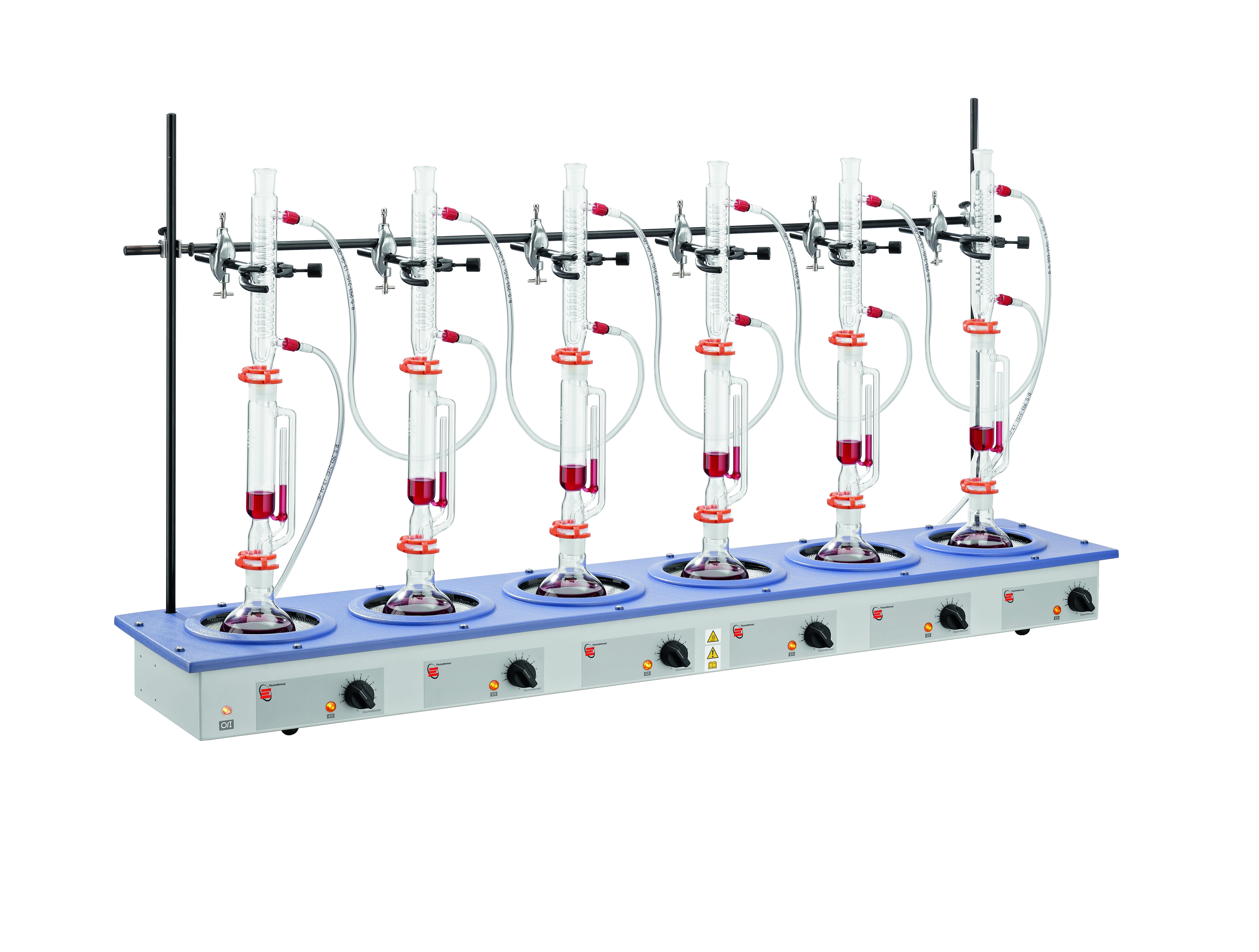

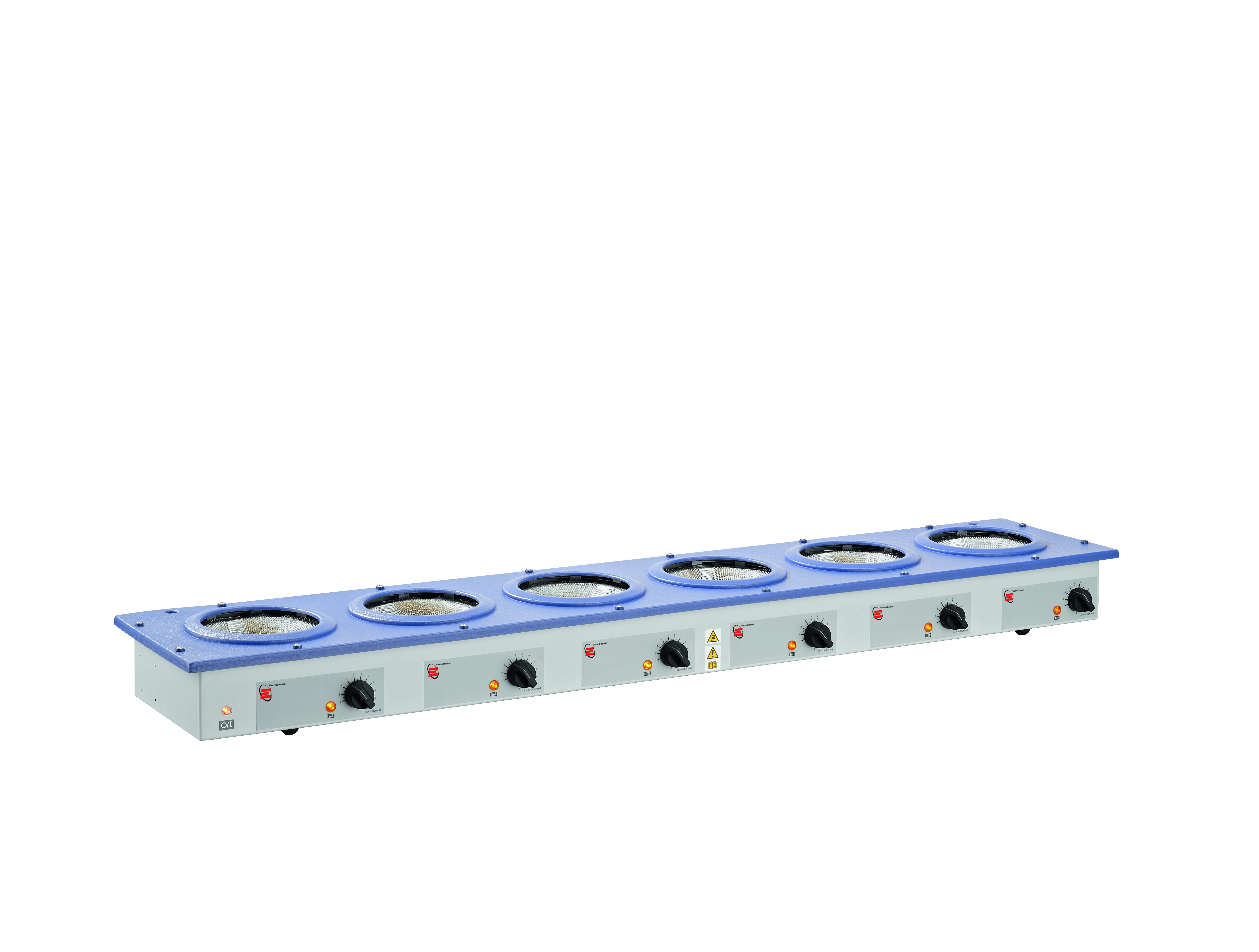

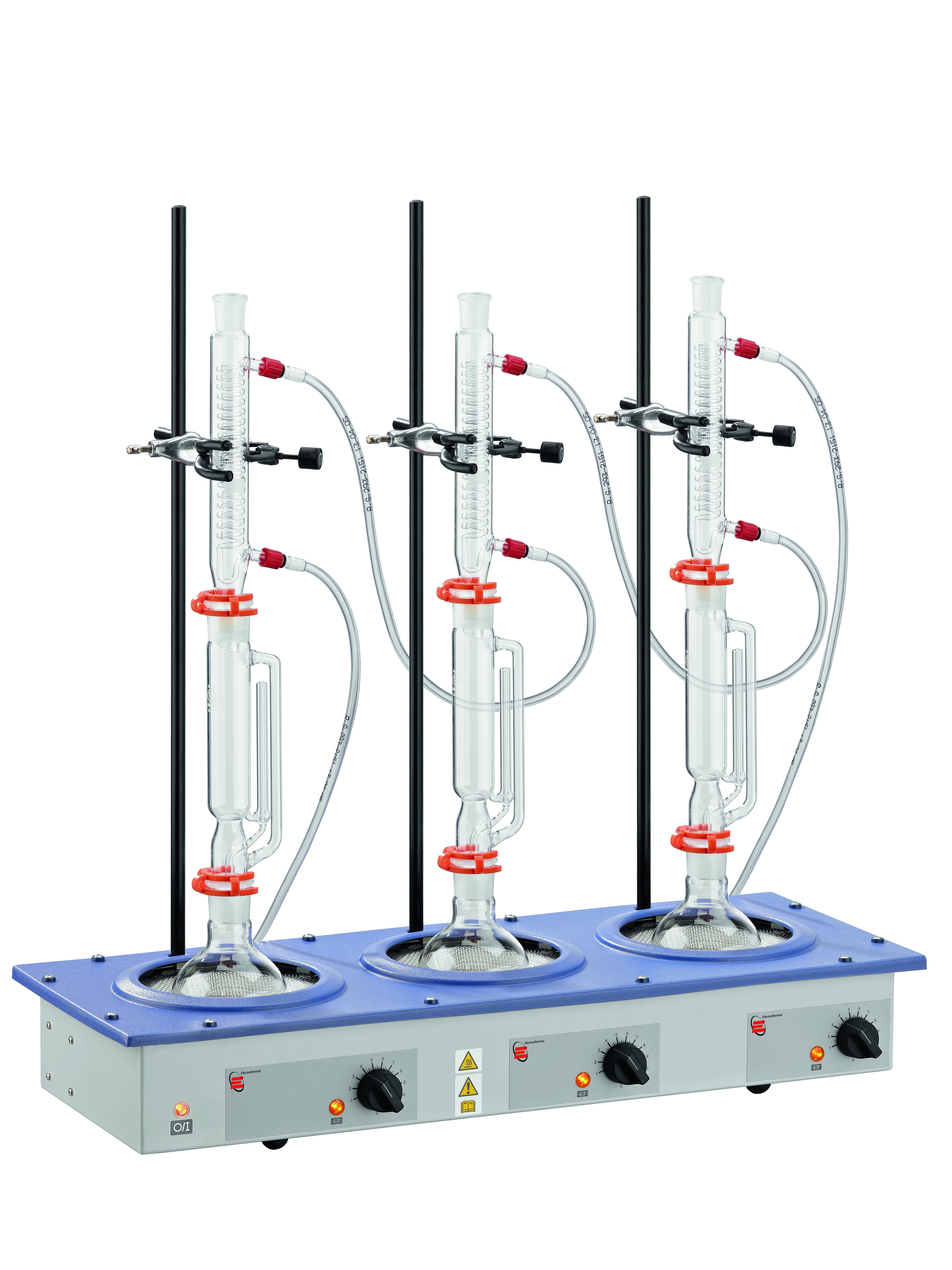

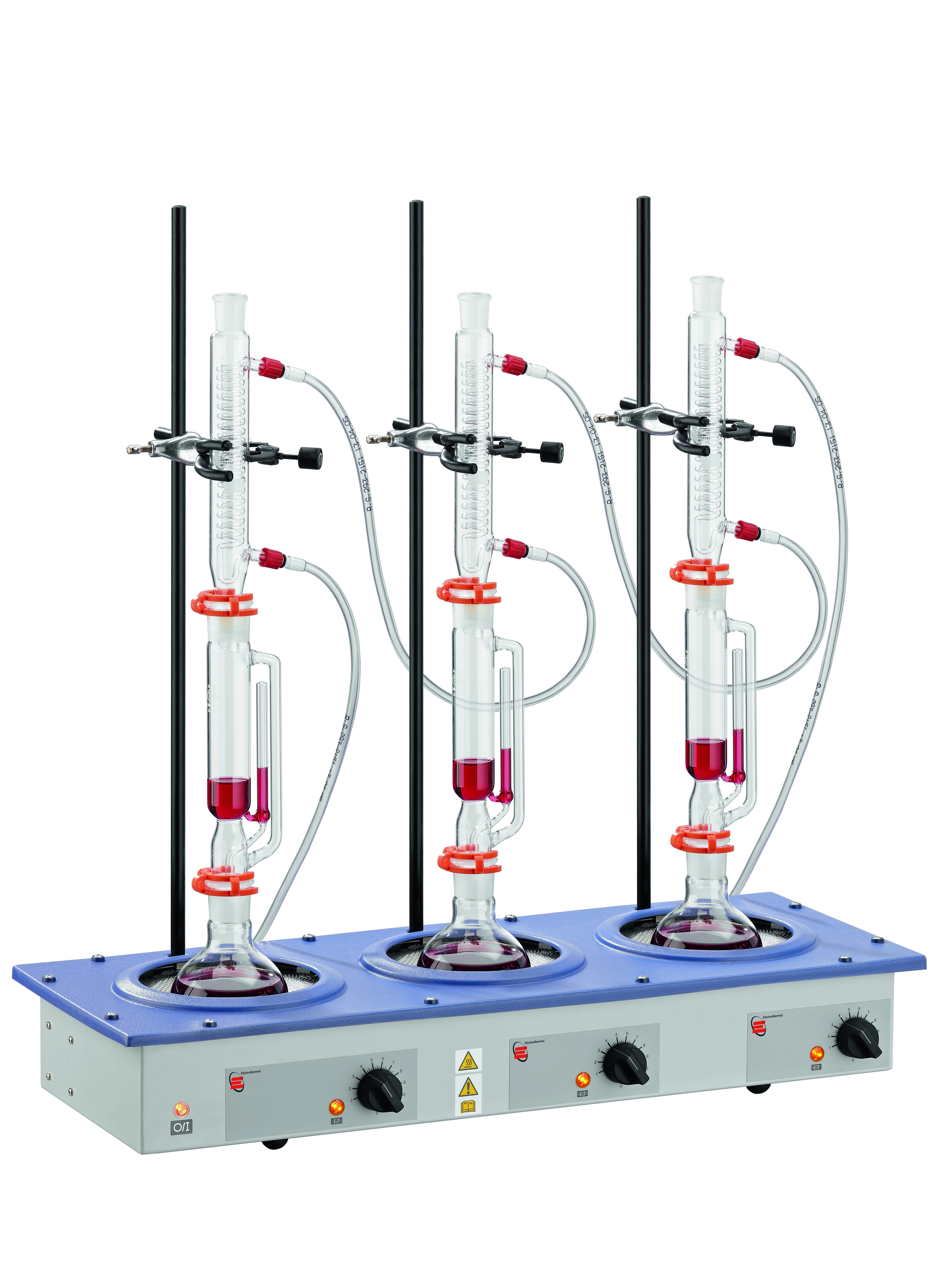

Electrothermal EME Series Electromantle Extraction Heaters

The Electrothermal Electromantle Extraction Heater with three and six recesses has a built-in electronic controller and offers a choice of heater only or heater/stirrer combination. Vented case's unique air flow ensures the case remains "cool-to-the-touch."

Key Features

  • Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching
  • Three 12.7mm(0.5in) diameter support rods are included
  • Top cover is polypropylene and external surfaces are powder coated and resistant to most chemical solutions
  • Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support, while removing sparking associated with mechanical switching
  • Heater cartridge is easy to replace
  • Earth (ground) screen encloses the heater for added safety
  • Pilot lights indicate when power is on and supplied to heaters and supplied to stirrers
Get a Quote
Electrothermal

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

More Features:

 Stirrer models include a stirring speed of 50 to 1000rpm
One stirring control operates each set of three recesses
Stirring Module allows the solution to be stirred and heated simultaneously

Warranty: One year parts and labour.

Certification: CE.




Model Flask Capacity Dimensions (d x w x h), mm No. of Recesses Electrical Requirements Shipping Weight, kg
EME30100/CEB 3 x 100ml 270 x 640 x 110 3 230v 50/ 60Hz, 180W UK and EU plug 6.2
EME30100/CEBX1 3 x 100ml 270 x 640 x 110 3 115v 50/ 60Hz, 180W 6.2
EME30250/CEB 3 x 250ml 270 x 640 x 110 3 230v 50/ 60Hz, 450W UK and EU plug 6.2
EME30250/CEBX1 3 x 250ml 270 x 640 x 110 3 115v 50/ 60Hz/ 450W 6.2
EME30500/CEB 3 x 500ml 285 x 755 x 130 3 230v 50/ 60Hz, 600W UK and EU plug 7.4
EME30500/CEBX1 3 x 500ml 285 x 755 x 130 3 115v 50/ 60Hz, 600W 7.4
EME31000/CEB 3 x 1000ml 285 x 755 x 130 3 230v 50/ 60Hz, 900W UK and EU plug 7.4
EME31000/CEBX1 3 x 1000ml 285 x 755 x 130 3 115v 50/ 60Hz, 900W 7.4



Model Flask Capacity Dimensions (d x w x h), mm No. of Recesses Electrical Requirements Shipping Weight, kg
EME60100/CEB 6 x 100ml 270 x 1210 x 110 6 230v 50/ 60Hz, 420W UK and EU plug 10.1
EME60100/CEBX1 6 x 100ml 270 x 1210 x 110 6 115v 50/ 60Hz, 420W 10.1
EME60250/CEB 6 x 250ml 270 x 1210 x 110 6 230v 50/ 60Hz, 900W UK and EU plug 10.1
EME60250/CEBX1 6 x 250ml 270 x 1210 x 110 6 115v 50/ 60Hz, 900W 10.1
EME60500/CEB 6 x 500ml 285 x 1450 x 130 6 230v 50/ 60Hz, 1200W UK and EU plug 12.5
EME60500/CEBX1 6 x 500ml 285 x 1450 x 130 6 115v 50/ 60Hz, 1200W 12.5
EME61000/CEB 6 x 1000ml 285 x 1450 x 130 6 230v 50/ 60Hz, 1800W UK and EU plug 12.5
EME61000/CEBX1 6 x 1000ml 285 x 1450 x 130 6 115v 50/ 60Hz, 1800W 12.5
