Eurotron GreenLine 8000 & EcoLine 6000 Portable Industrial Combustion & Emissions Analysers
|
The Most Powerful and Advanced Instruments with
Built-In Gas Cooler and Heater for Sampling Hose & Probe
 Up to 9 Sensors
(Temperature
Compensated)
Long Term Monitoring
with Automatic Water
Condensation Drain
Electronic Flow-Meter
Aux 4-20mA Inputs
Graphic Display
with Menu
Easy Maintenance
9000 Full Analysis
Memory, RS232, &
Windows Software
Remote Control Unit
with Built-In Printer
CO, CO and C H
Built-In NDIR Sensors
Full Compliance to
EPA Protocol
Built-In Peltier
Gas Cooler

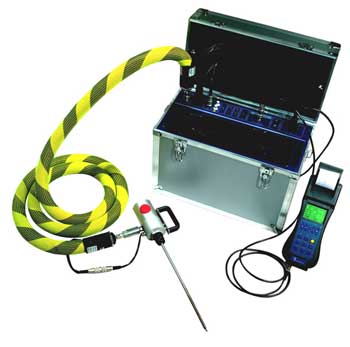

Eurotron portable flue gas
analaysers EcoLine 6000 & GreenLine 8000
represent the
most powerful and advanced
instruments on the market.
The two units are designed using
the new concept of split
architecture. The gas analyser
consists of two sections: the gas
analysis Main Control Unit (MCU)
and the Remote Control Unit
(RCU). The communication
between the two sections use
the industrial standard RS422.
The MCU is a true, portable,
complete flue gas laboratory. The
unit includes: aspiration pump,
filters, condensation drain with
peristaltic pump, gas sensors and
the electronics. It can be
positioned near the stack
sampling point and it can set and
work also as an independent
instrument (black-box).
The GreenLine 8000 model
(only) additional includes: an
internal Peltier gas cooler, NDIR
sensors, and heated industrial gas
probe connection capability. The
operator can easily survey the
overall operation at a distance
from the unit using either the
Remote Control Unit or Laptop or
PC.
The RCU is used to display the
measured data, store the analysis
in the unit’s memory, printout any
data, and to transfer data to your
PC.
Data Sheet
|
The “Clean Air Act”, originated in
the USA in 1970. It was the first
federal law that regulates air
emissions from certain areas,
either by stationary or mobile
sources. The EPA (Environmental
Protection Agency) and other
Federal or State Agencies verify
affordable and reasonable methods
of achieving environmental
compliance under the set emissions
limits.
A number of “Protocols” have been
created to verify industrial
emissions using portable gas
analysers to ensure air quality
compliance. These “Protocols” are
the set guidelines that prescribe
the technical performances of the
electrochemical sensor-based
analysers to be used, as well as
calibration and testing procedures
which should be followed to
completely assure correct
emissions data.
The instrument shows technical
specifications and performance in
compliance with the necessary
protocols and therefore can be
used in periodic testing in many
different countries, states and
regions. The Eurotron’s analysers
are designed to meet the specific
requirements, mainly related to
gas sample conditioning, flow, and
temperature control.
Other operative modes allow the
user to test, view, store, and print
draft measurement, differential
pressure, data logging, various
other performance tests, and PC
interface.
The built-in impact-type printer
uses common, inexpensive, nonthermal,
standard paper rolls. This
allows the user to generate a full,
comprehensive, & LONG LASTING
data report.
The internal memory can store up
to 9000 COMPLETE analysis data
points (1000 data points on the EcoLine 6000).
The digital interface (RS232) allows
for communication between the
instrument and your Laptop or PC,
for instrument configurations, data
transferring, and data logging.
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
