The laboratory eye shower is a requirement for use in areas where chemicals are in.
As a result, it has become a requirement that all workplaces with similar risks should have access to state of the art eye/facewash equipment.
Acids and alkaline solutions, in particular, even at low concentrations, can penetrate the cornea and damage the eye permanently.
The immediate provision of First Aid is crucial to restrict the amount of damage. Even the penetration of foreign particles, e.g. fine dust particles, into the eye represents a risk that is not to be underestimated.
FSP-Tech Laboratory eye shower spray heads ensure the large-scale dispersion of water.
Additionally, all our eye showers feature a flow control, which guarantees the proper volume flow and the right jet configuration in accordance with the applicable standards. Both Laboratory eye showers meet the requirements of DIN EN 15154-2:2006.
ClassicLine Eye Showers

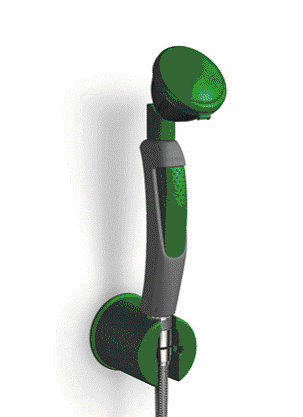

 Hand-held eye showers with one or two high-performance spray heads
Numerous mounting- and hose variations are possible
Water-bearing parts made of brass and plastics in accordance with the requirements of the Drinking Water Ordinances
PremiumLine Eye Showers
Wall mounted and freestanding eye showers with bowl and lid
Ideally for use in industry, craft and laboratories with high dirtiness
Water-bearing parts made of stainless steel and plastics in accordance with
the requirements of the Drinking Water Ordinances
Brochure
ClassicLine Range
|
High-Performance Spray Head
All FSP-Tech eye showers are fitted with our newly developed high-performance spray head.
This spray head not only meets the requirements of DIN EN 15154-2:2006 but also ensures the large-scale dispersion of water.
This also provides the regions surrounding the eye with water and the placement of the eyes under the jet of water does not pose a problem.
Wide, uniform and gentle jet of water
Optimum function at a flow pressure of at least 1 bar and, at most, 10 bar
Integrated flow control ensures a constant jet of water, irrespective of the water pressure
Large outlets in the spray heads protect them
against the build-up of scale
Rubber sleeves protect the person seeking help
against injuries from impact
Comes with dust caps that open automatically
when the eye shower is used
In accordance with DIN EN 15154-2:2006
DIN EN 15154-2:2006
The upper edge of the spray head must be installed
1000 +/- 200 mm above floor level.
A clear area of at least 150 mm must be guaranteed
around the eye shower.
The valve should be fully open after a rotation of
the manual control of a maximum of 90 degrees or a pull of
the manual control of a maximum of 200 mm.
Eye showers must be supplied with drinking
water or water of similar quality.
Eye showers should feature a flow volume of at least
6 litres per minute.
Water output must be guaranteed for a period of at
least 15 minutes.
The jet of water supplied by the spray heads can
have a height of 100 mm to 300 mm.
|
