The GENLAB Large Capacity Multipurpose Ovens offer a unique range of highly efficient, reliable and accurate units suitable for much larger applications in drying, curing, general laboratory and industrial uses.
Features
 Capacities 250 to 1250 Litres - 8 sizes vertical style/9 sizes horizontal style
Temperature range: 40degC to 250degC
Microprocessor digital controller with dual display of set point and actual temperature
Easy clean powder coated body
Aluminium coated mild steel chamber
Fitted castors (from 650 litres)
Safety overheat thermostat
Full two year warranty
C.E. compliant
Design
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.
Heating
Heated by Incoloy sheathed elements positioned in the base fan duct for units up to 650 litres and in the side fan duct on units 650 litres and over.
Controls
All units have as standard a PID Microprocessor controller, with dual displays of set point and actual temperature that are auto-tuned to each individual unit to optimise the heat up, overshoot and control of temperature.

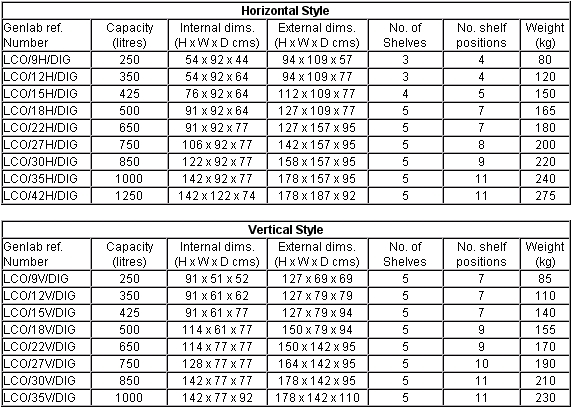

Data Sheet
|
1250 litre oven (LCO/42H/DIG)
Options & Accessories
Stainless steel chamber
300degC units available
Extraction systems
Timers/Recorders
Trolleys and racking
Other accessories available on request
Ordering
The horizontal style ovens in this range are the LCO/9H/DIG,LCO/12H/DIG, LCO/15H/DIG, LCO/18H/DIG, LCO/22H/DIG, LCO/27H/DIG, LCO/30H/DIG, LCO/35H/DIG and the LCO/42H/DIG.
The vertical style ovens in this range are the LCO/9V/DIG, LCO/12V/DIG, LCO/15V/DIG, LCO/18V/DIG, LCO/22V/DIG, LCO/27V/DIG, LCO/30V/DIG and the LCO/35V/DIG.
All units have CLAD interior with the microprocessor digital control as standard.
Where options are required simply add the option code to the original reference.
Option Codes
Stainless steel / SS
350 litre oven (LCO/12V/DIG)
|
