The GENLAB range of Moisture Extraction Ovens are specifically designed to provide rapid drying and removal of excess moisture when standard drying ovens will not perform adequately.
Features
 14 sizes 50 to 1000 litres
Temperature range: 40 to 250degC
Fluctuation +/- 0.75degC
Fan circulation
Easy clean powder coated body
Aluminium coated mild steel chamber
Direct reading thermostat
Safety overheat thermostat
Full two year warranty
C.E. compliant
Design
The ovens are specifically designed for the rapid extraction of moisture and are fitted with special large diameter outlet vents suitable for connection to most external extraction systems.
The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
Heating
Heated by Incoloy sheathed elements fitted around the fan circulation.
Controls
Units up to 200 litres capacity have a basic control system that comprises of a direct reading thermostst and overheat thermostat, both with calibrated scales and tamper proof locks. They also include mains switch with indicator and heat and overheat indicators.
Units 250 litres capacity and larger have a digital control system that comprises a Microprocessor digital temperature, with dual display of set point and actual temperature, and which is auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature. This is also available as an optional extra to the smaller units.
|
50 litre Moisture Extraction Oven with Digital Controls (ME/50/DIG)
Options
Stainless steel chamber
Microprocessor digital controller with dual display of set point and actual temperature
Other accessories available on request
Ordering

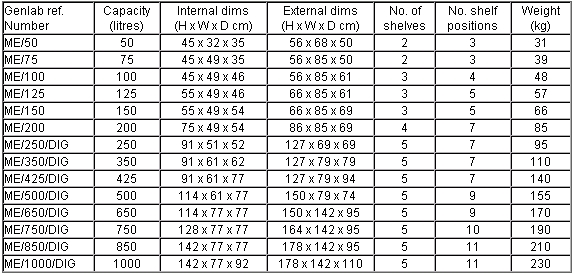

The ovens in this range are the ME/50, ME/75, ME/100, ME/125, ME/150, ME/200, ME/250/DIG, ME/350/DIG, ME/425/DIG, ME/500/DIG, ME/650/DIG, ME/750/DIG, ME/850/DIG and ME/1000/DIG.
All units have CLAD interior as standard with the microprocessor digital control as an option below 250 litres.
Where options are required simply add the option code to the original reference. ie ME/75 with stainless steel chamber and digital controller is ME/75/SS/DIG
Option Codes
Stainless steel / SS
Digital control system / DIG
350 litre Moisture Extraction Oven with Digital Controls (ME/350/DIG)
|
