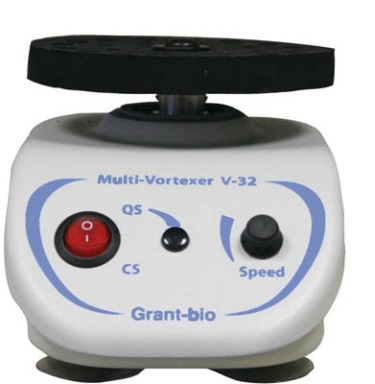

Grant Bio V-32 Vortex Mixer


The Grant Bio V-32 is a versatile multi Vortex Mixer which has been designed for vigorous re-suspension of cells or chemical pellets in tubes up to 1.5 ml. The V-32 has the facility to mix individual tubes up to 15 ml.

  Adjustable speed control: 500 to 3000 rpm
  'Continuous' or 'impulse' operation
  Handles up to 32 tubes in three different sizes/combinations
  Additional VP-1 flat head for single tube mixing supplied with unit
  Compact rugged design plus powerful motor delivering consistent performance and quiet operation - fits neatly and unobtrusively into the workspace
  Rubber suction pads hold tight to the work surface and prevent the unit from 'walking' - they also absorb vibration and prevent its transmission to the workbench
  Extremely easy to operate - select either 'continuous' or 'touch' operation and turn the knob to adjust the speed from 500 rpm to 3000 rpm
  The 32-socket universal platform for three tubes sizes (16 x 1.5ml, 8 x 0.5 ml, 8 x 0.2ml) and a tip for mixing individual tubes up to 15ml provide maximum flexibility for different applications.
  Operating temperature range: + 4°C to 40°C

Applications

Typical applications include intensive stirring of bacterial and yeast cells, extraction of metabolites and enzymes from cells and cell cultures, and various DNA operations such as deproteinisation of DNA/protein complexes and purification of low molecular weight DNA/RNA fragments in PCR diagnostics.



Data Sheet

Ordering Information


Vortex mixer multi-tube, 500 - 3000 rpm for up to 32 microtubes or 1 tube up to 15ml V-32

Platform universal optional for 6 x 10 ml tubes up to 15mm dia. Fits V-32 PV6-10

Platform replacement 32 tube 16 x 1.5ml plus 8 x 0.5ml plus 8 x 0.2ml fits V-32 PV-32



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
