Grant Instruments GD120 Series Stirred Water Baths/Circulators


This product is now obsolete. To see the current products by Grant Instruments, please click here.

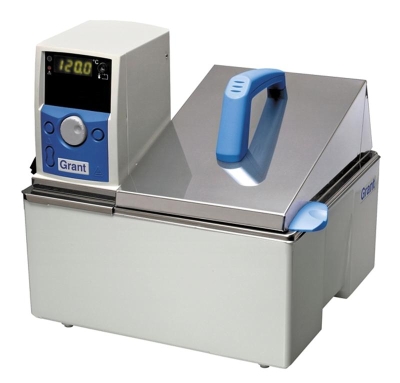

The Grant Instruments Optima GD120 series of digitally controlled stirred water baths and circulators provides outstanding performance and value for money for more sophisticated applications requiring accurate temperature control up to a maximum of 120 degC.

Grant Instruments GD120 series systems combine the versatile Grant Instruments Optima GD120 digital immersion thermostat with a choice of three economy plastic (P) tanks or five stainless steel (S) tanks with different capacities.

The Grant Instruments GD120 immersion thermostat incorporates Intelligent Control Optimisation (ICO) for adaptive intelligent PID temperature control and includes a powerful integral pump, making GD120 systems suitable both for immersing samples and circulating temperature controlled fluid to external devices. It includes a convenient timer function for reaction timing and a variable high temperature alarm setting. The temperature range and heater power are automatically limited according to the liquid type selected.

  Simple-to-use rotor plus two keys provide access to the interactive interface for fast, accurate set-up
  Clear digital display for instant reassurance - easy to read from a distance
  Visual and audible alarms alert you when your attention is required
  Operating setpoint plus 3 adjustable preset temperatures for convenience
  User calibration facility for optimum accuracy at the required operating temperature
  Integral pump - max. flow rate 17L/min
  Low liquid protection by float switch
  User adjustable overtemperature cut-out protects your samples and your workplace
  Maximum cooling/heating range (dependent on tank size): ambient +5 to 99 degC with plastic (P) tank, or -15 to 120 degC with stainless steel (S) tank
  Stability +/- 0.02 degC
  Models include GD120-S5, GD120-S12, GD120-S18, GD120-S26, GD120-S38, GD120-P5, GD120-P12 and GD120-P18.



Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
