Gresswell Valves FIG141 In-line Pressure Relief Valves

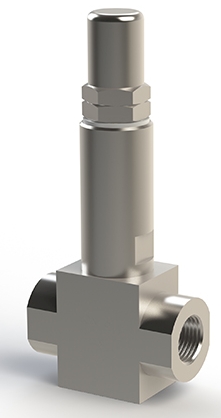

Built by Gresswell Valves, the Gresswell FIG141 is a stainless steel-bodied in-line pressure relief valve used to relieve excess pressure on air, gases & liquids. Gresswell have built the FIG141 with stainless steel inlet connections & internals.

Size Range:

  DN15 only (1/2")

Pressure Range:

  FIG140 = 0.5 BARG to 22.5 BAR.G

Pipe Connections:

  Available either screwed or flanged to suit customer's connection requirements

Features and Benefits:

  Able to accommodate customer's connection requirements.
  Full Cat IV PED approval.
  Quality assurance approved to BS EN ISO 9001: 2008.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Liquid
  Steam
  Gas

Applications:

  Vented systems and unvented systems
  Liquid pump relief, pipeline and vessel protection.
  Steam boiler, pipeline and vessel protection.
  Compressor, pipeline and receiver protection.

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
