Gresswell Valves FIG234 High Pressure Relief Valves

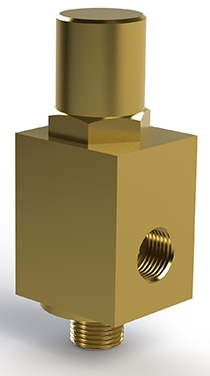

The FIG234, produced by Gresswell Valves, is a range of brass block relief valves that are typically deployed to prevent safe pressures being exceeded in pressurised systems.

The valve lift is proportional to the system over pressure. The FIG234 is commonly used for air, oil, gases and steam, where high discharge rates are not required in thermal and pipeline relief applications.

Size Range:

  DN08 TO DN20 (1/4" TO ¾")

Pressure Range:

  0.5 BAR.G (0.9 PSI) TO 50.0 BAR.G (725 PSI)

Pipe Connections:

  Available male inlet x screwed female outlet (BSP, BSPT, NPT)

Features and Benefits:

  Able to accommodate customer's connection requirements.
  Full Cat IV PED approval.
  Quality assurance approved to BS EN ISO 9001: 2008.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Liquid
  Steam
  Gas

Applications:

  Liquid pump relief, pipeline and vessel protection.
  High pressure.

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
