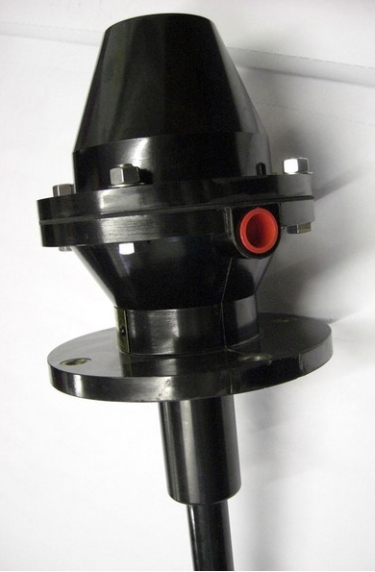

HPE8 Electrode holders are suitable for sewage, water and effluent applications. Moulded in Phenolic (SR4007) for high strength and chemical resistance.

Supplied with SS clamping collar, rubber gasket and SS nuts and bolts to secure cap to base. The holders will accept ¾” B.S.P. pipe electrodes of nominal OD 26.7mm and wall thickness 2.87mm.

Electrodes are available in galvanised mild steel, stainless steel type 316, plain or plastic coated, (for the latter please specify HPE8/1). PPA plastic coating is WRAS approved No 0107503.

Rubber bungs are available to insert in electrode tip. We provide a service to thread ¾” B.S.P pipe. Plastic touch-up paint for electrodes is also available.

Maximum shipping length 3.2m. couplers are available for lengths in excess.

Electrode steady brackets are advisable every 3 metres. Electrode adjustment 114mm.

Electrode length is calculated from the underside of the flange plus 92mm.

INTRINSICALLY SAFE models for use with P7/IS level controller.
