Honeywell Analytics Sensepoint High-Temperature Gas Detector

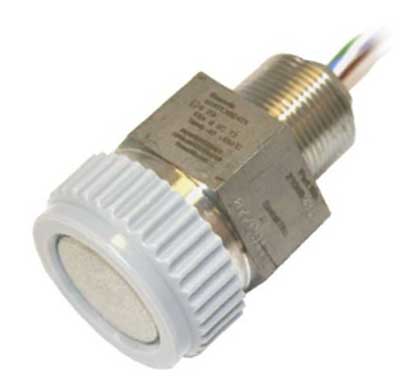

The Sensepoint High Temperature (HT) Combustible Gas Sensor is a sealed disposable sensor for the detection of flammable gases.

Key Features

  • Low cost disposable sensor
  • Greater than 5 year typical operating life
  • ATEX/ IECEx approved design
Get a Quote
Honeywell Analytics

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

The Sensepoint High Temperature (HT) Combustible Gas Sensor is a sealed disposable sensor for the detection of flammable gases. It must be fitted into a suitably approved Ex e or Ex d high temperature junction box (e.g. FEEL Flameproof Enclosures) fitted with an approved cable gland for external wiring (e.g. Peppers Cable Glands, Series A3LF or CR3 CROLOCK Series).

The sensor features a Filter Housing that retains a stainless steel mesh filter. It employs a catalytic pellistor sensor device which is used as part of a bridge measuring circuit.

Sensepoint HT is certified for hazardous areas to EN60079 / EN61241 and is protected against water and dust ingress to IP66. The sensor is available in M20, M25 and 3/4 NPT thread versions.

    Sensepoint Flammable - High Temperature (150?C with 3rd party performance approval)
    • 2106B2310 Sensepoint HT Flammable Sensor (ATEX) M20

    • 2106B2311 Sensepoint HT Flammable Sensor (ATEX) M25

    • 2106B2312 Sensepoint HT Flammable Sensor (ATEX) 3/4 NPT

    • Note: For a complete sensor order correct number of FEEL Exe J.Box 2052D0001 and Weather Housing 00780-A-0076

    Accessories
    • 00780-A-0100 Honeywell Junction Box- Bartec OTB122 With Continuity Plate 1 X 25mm - 3 X 20mm Entries - ATEX Approved

    • 2052D0001 High temperature Exe junction box. ATEX approved

    • 00780-A-0160 Right Angle Mounting Bracket For Junction Box 00780-A-0100

    • 02000-A-1635 Weatherproof cap for use with toxic detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

    • 02000-A-1640 Weatherproof cap for use with combustible detector including remote gassing nozzle (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

    • 00780-A-0076 Stainless steel weather housing for Sensepoint HT or 705 HT (for use with in high temperature applications or with duct mounting kits)

    • 02000-A-1642 Collecting cone for use with flammable detector (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

    • 02000-A-1645 Flow Housing Assembly (for Sensepoint, Signalpoint, Satellite (with adapter), XNX MPD and Series 2000)

    • 2106B2114 Sensepoint & Signalpoint Toxic Calibration Kit including calibration cover, removal tool, potentiometer adjustment tool

    • 2106D2055 M36/M40 thread adaptor

    • 225-262-138 Cable gland and caps, 20mm, Nylon

    • 94000-C-1001 2" Pipe Mount Plate (please separately order 90083-A-8034)

    • 90083-A-8034 2 x 2" U-Bolts x M6 C/W Nuts and Washers 316SS for 2" Pipe Mount Plate

    • 90053-A-7001 1-way Sensepoint M20 Duct Mount Kit. Please order separately 00780-A-0100, 02000-A-1640 (for Combustible versions) or 02000-A-1635 (for Toxic versions)

    • 90053-A-7041 1-way Sensepoint M20 Duct Mount Kit 'High Temp'. Please order separately

    • 2052D0001 and 00780-A-0076

    • 90053-A-8002 1-way Sensepoint M25 Duct Mount Kit. Please order separately 00780-A-0100, 02000-A-1640 (for Combustible versions) or 02000-A-1635 (for Toxic versions)

    • 90068-A-8204 Gassing Block 316SST. 6mm O/D Connector to Sensor and 6mm Tube Connector toGas Bottle

    • 90068-C-8291 PTFE Tubing 8mm O/D x 6mm I/D. Price per Meter

    • 90068-C-8292 Soft PVC Tubing 8mm O/D x 5mm I/D. Price per Meter

    • 00910-A-0404 Hydrophobic barrier assembly for Weather Housing
    Spares
    • 2106B1545 O2 Electrochemical Cell Exch Kit

    • 2106B1546 SO2 Electrochemical Cell Exchange Kit

    • 2106B1547 Cl2 Electrochemical Cell Exch Kit

    • 2106B1548 CO Electrochemical Cell Exch Kit

    • 2106B1549 H2S Electrochemical Cell Exch Kit

    • 2106B1593 NH3 0-100 ppm Electrochemical Cell Exchange Kit

    • 2106B1594 NO Electrochemical Cell Exchange Kit

    • 2106B1595 NH3 0-1000 ppm Electrochemical Cell Exch Kit

    • 2106B1596 NH3 0-50 ppm Electrochemical Cell Exch kit

    • 2106B1597 H2 0-1000 ppm Electrochemical Cell Exchange Kit

    • 2106B1598 H2 10000 ppm Electrochemical Exchange Kit

    • 2106B1599 NO2 0-10 ppm Electrochemical Exchange Kit
