IKA's ULTRA-TURRAX - the epitome of first-rate dispersing devices. Whether used for homogenizing, emulsifying or suspending - IKA's dispersers enable the best possible results.

The digital display allows you to keep track of the speed range up to 24,000 revolutions per minute, starting softly of course. Due to their broad spectrum of dispersing tools, IKA dispersers are highly effective for a variety uses. Common disperser uses include: homogenization of effluent samples, dispersing tasks under vacuum pressure, and PCR analysis. IKA dispersers know no limits when it comes to professional particle reduction.

Functionality, safety, and longevity are the main goals in the development of IKA dispersers.

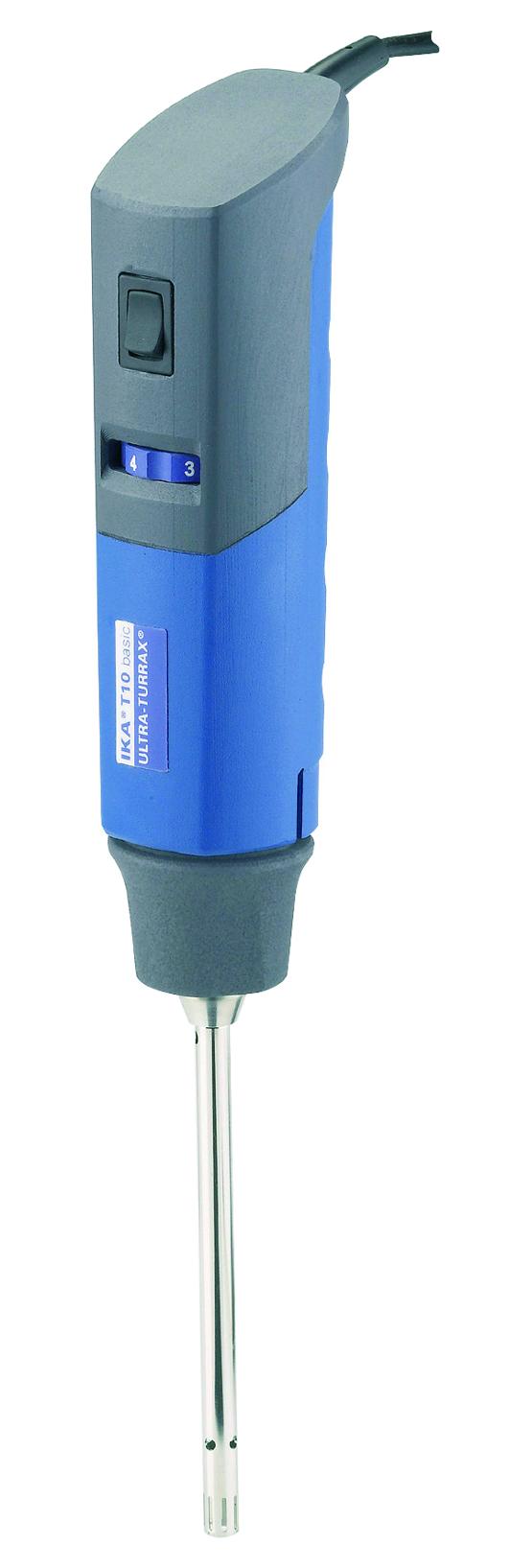

T 10 basic ULTRA-TURRAX

New, competitively priced dispersing instrument for volumes of 0,5 to 100 ml. A wide speed range allows you to work at high circumferential speeds even with small rotor diameters. Perfect ergonomic finish.

  Immense speed stability with various media thanks to high performance 125 Watt drive
  Ideal for manual operation thanks to its light weight and ergonomic form
  Extremely mobile thanks to direct mains operation (no transformer required)
  Stainless steel dispersing elements (5 mm, 8 mm and 10 mm diameter) canbe cleaned quickly and easily as they can be dismounted without tools
  Plastic disposable dispersing elements in two sizes, particularly suitable for PCR analysis
  Quick-release coupling makes changing the dispersing elements easy

Data Sheet

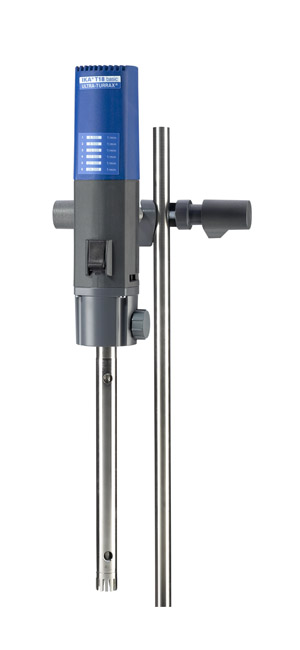

T 18 basic ULTRA-TURRAX

The new ULTRA -TURRAX high-performance disperser by IKA.

  For volumes of 1 to 1.500 ml (H2O)
  A wide speed range allows you to work at high circumferential speeds
  Electronic speed control
  Electronic overload protection
  Quick release button for dispersing element
  As standard, the T 18 is equipped with a connection for a revolution counter

Data Sheet

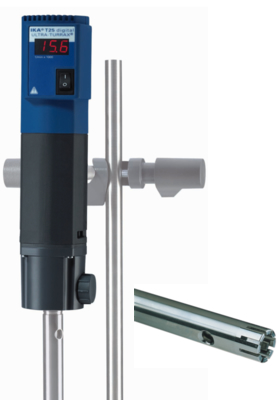

T 25 digital ULTRA-TURRAX

The new ULTRA -TURRAX high-performance disperser by IKA.

  For volumes of 1 to 2.000 ml (H2O)
  The spectrum of applications ranges from homogenizing waste water samples to the use in laboratory reactors, to dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics
  Three types of shaft bearings
  Standard version with digital display
  Rotor-Stator configurations have thirty years of proven, guaranteed comparability of test results

Data Sheet

T 50 basic ULTRA-TURRAX

High-performance dispersing instrument for volumes from 0.25 - 30 l (H2O).

  Three types of shaft bearings
  Several rotor-stator configurations
  Agitator shaft R 50 allows the use of the T 50 basic as a high-speed stirrer (not included in delivery)
  Infinitely variable speed control, for continuous operation
  Reproducible operations due to constant speed even with viscosity changes
  Large selection of dispersing elements
  Plug-in connectors facilitate exchange of dispersing elements
  Electronic safety circuit and smooth start
  As standard, the T 50 basic is equipped with a connection for the revolution counter
  Wide range of dispersing elements (not included in delivery)

Data Sheet

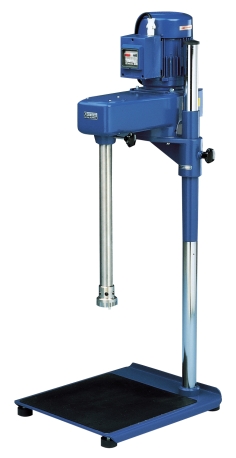

T 65 D ULTRA-TURRAX

The high-performance T 65 D dispersing instrument has been designed for typical pilot plant stations quantities from 2 - 50 l (H2O).

  Three rotor-stator configurations for a variety of applications (not included with delivery)
  Plug-in connectors facilitate exchange of dispersing elements
  Dispersing instruments for the production area: ask for our process technology catalogs
  Cables and plugs not included with delivery

Data Sheet

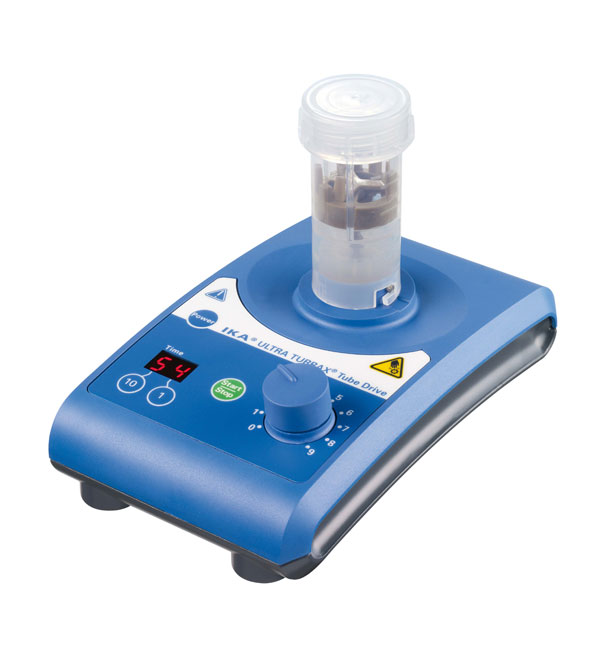

ULTRA-TURRAX Tube Drive

Unique and universal dispersing, stirring, homogenizing and grinding system with hermetically sealable disposable sample tubes. Protection and security for: Infectious sample materials, toxic substances, high-odor substances under defined conditions (time, energy, volume).

The sample containers (tubes) are easily attached to the drive unit. Desired speed and duration are set, then the test is started. An acoustic signal indicates completion of experiment. The tests are any time reproducible and there is no cross-contamination between the samples.

  Disperse, stir, homogenize and grind using a single drive unit
  No possibility of cross-contamination
  Hermetically sealable disposable sample tubes
  No cleaning required
  High level of user safety
  Suitable for individual use and use in series
  Gamma-sterilized tubes
  Tubes with pierceable membrane covers
  Tubes with 2 - 15 ml and 15 - 50 ml
  Anti-locking function
  Increases safety due to low voltage (24 V)
  Chemical-resistant plastic
  Simple and safe disposal
  Worldwide service guaranteed by IKA
  Reproducible tests
  Patented

Data Sheet
