Easy to use

  Versatile sampling system

  Full interfacing capability

  G.L.P. compliant

  320-1000nm/8nm SBW

  Now includes free PC Software worth GBP75 (web registration required)

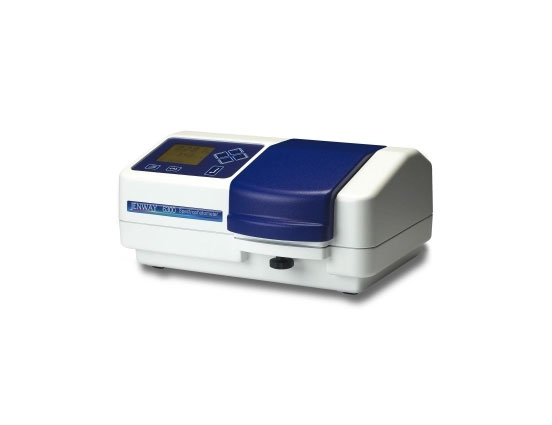

The Model 6300 is designed to provide the user with a high quality, easy to use measurement system for routine analysis. The 6300 has modes for Absorbance, %T and Concentration measurement. Calibration is performed against a blank (Abs and %T) and a standard or factor for Concentration. Wavelength selection is made electronically via a finely geared stepper motor with a displayed resolution of 1nm.

A custom designed LCD gives simultaneous readout of wavelength and photometric result. Error messages, prompts, mode indication and a choice of concentration units are presented in an easily understood format.

Simple keypad layout and operating protocols ensure reliable operation by unfamiliar users.

An impressive optical performance minimises the stray light by the automatic activation of internal filters, whilst the narrow 8nm bandwidth provides the high degree of selectivity essential for most analytical situations. A precision stepper motor gives excellent positional control for the optical grating ensuring wavelength selection is both accurate and highly repeatable.

A versatile sampling system comprising a large cell chamber and the variable length cuvette holder allow 10-100mm path length cells to be accommodated with ease, therefore changing of the sample configuration is quick and simple. Additional sampling flexibility can be gained using 10-25mm diameter test tubes or the optional 4 position cell holder. Flow through cuvettes can be used with the optional sipper pump, while water heated or electrically heated cuvette holder options are available.

Full interfacing capability using RS232 interfacing or an analogue output is provided as standard. Utilising the RS232 facility allows results to be down loaded via the front panel print key. The bi-directional interface also allows remote interrogation and control of the 6300 which is now possible with the PC software provided. This package includes a data logging option.

Traceable calibration standards provide the on-going assurance of accuracy required by Good Laboratory Practice (G.L.P.). The 6300 complies fully with EEC and US directives relating to ESD/EMC emission and susceptibility.

Data Sheet
Manual

630 501 - Model 6300 Visible range spectrophotometer (320-1000nm) supplied with mains lead, pack 100 disposable cuvettes, 10x10mm cell holder and instruction manual. For use on 230V/50Hz

630 531 - Model 6300 Visible range spectrophotometer (320-1000nm) supplied with US line cord, pack 100 disposable cuvettes, 10x10mm cell holder and instruction manual. For use on 110V/60Hz
