% or oxygen concentration display modes
  Full support for B.O.D. 5-day test
  Security code protected user data
  Calibration data status display
  Calibration reminder
  Reading memory - 250 results plus 20 B.O.D. tests (up to 10 samples per test)
  Comprehensive data logging options
  Alarm outputs (open collector and audible)

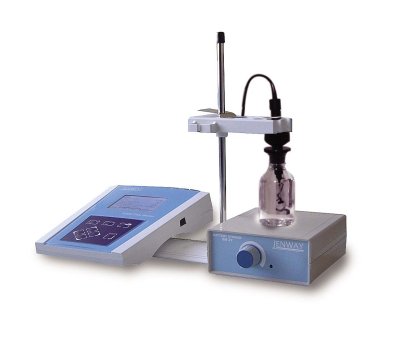

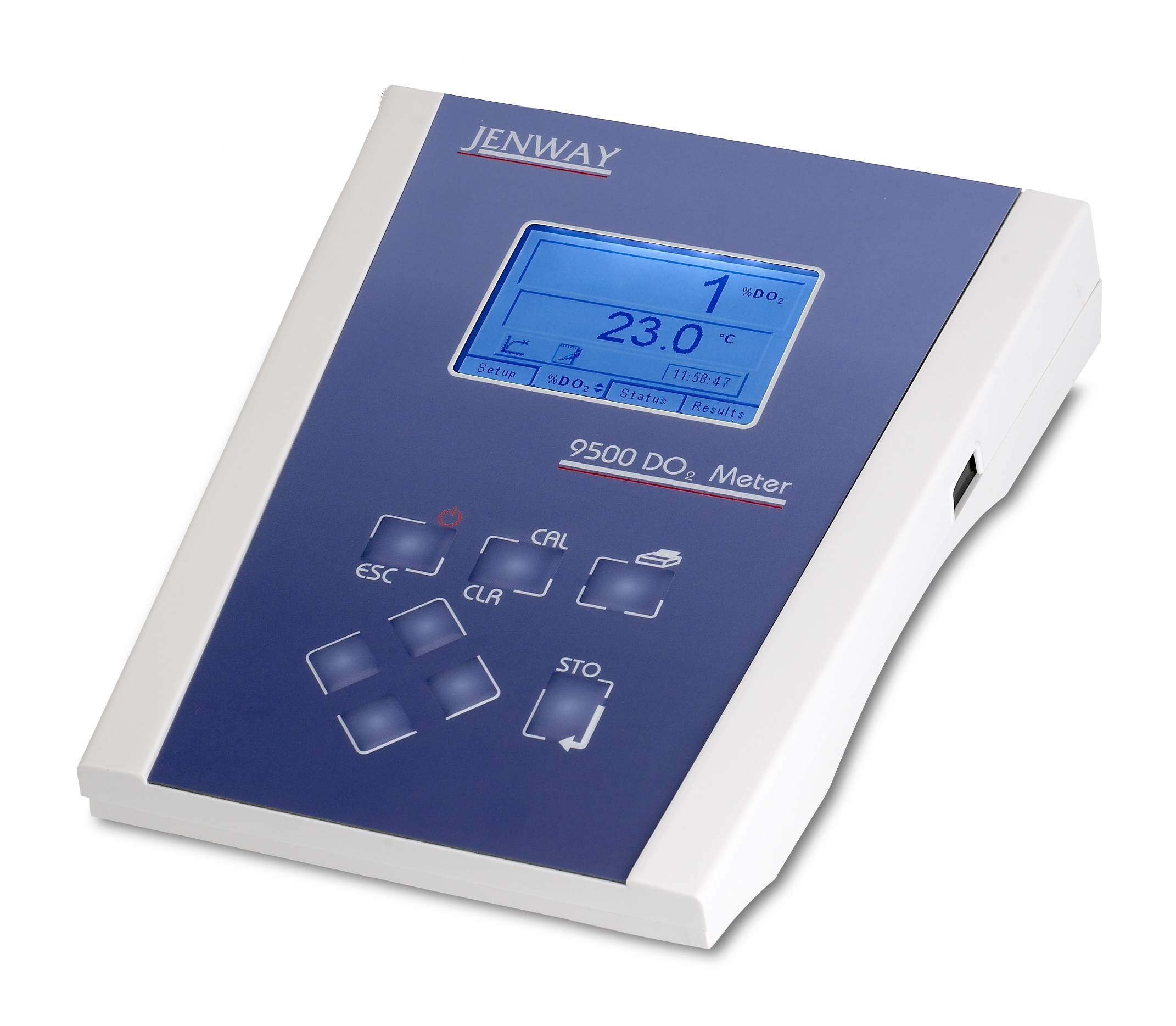

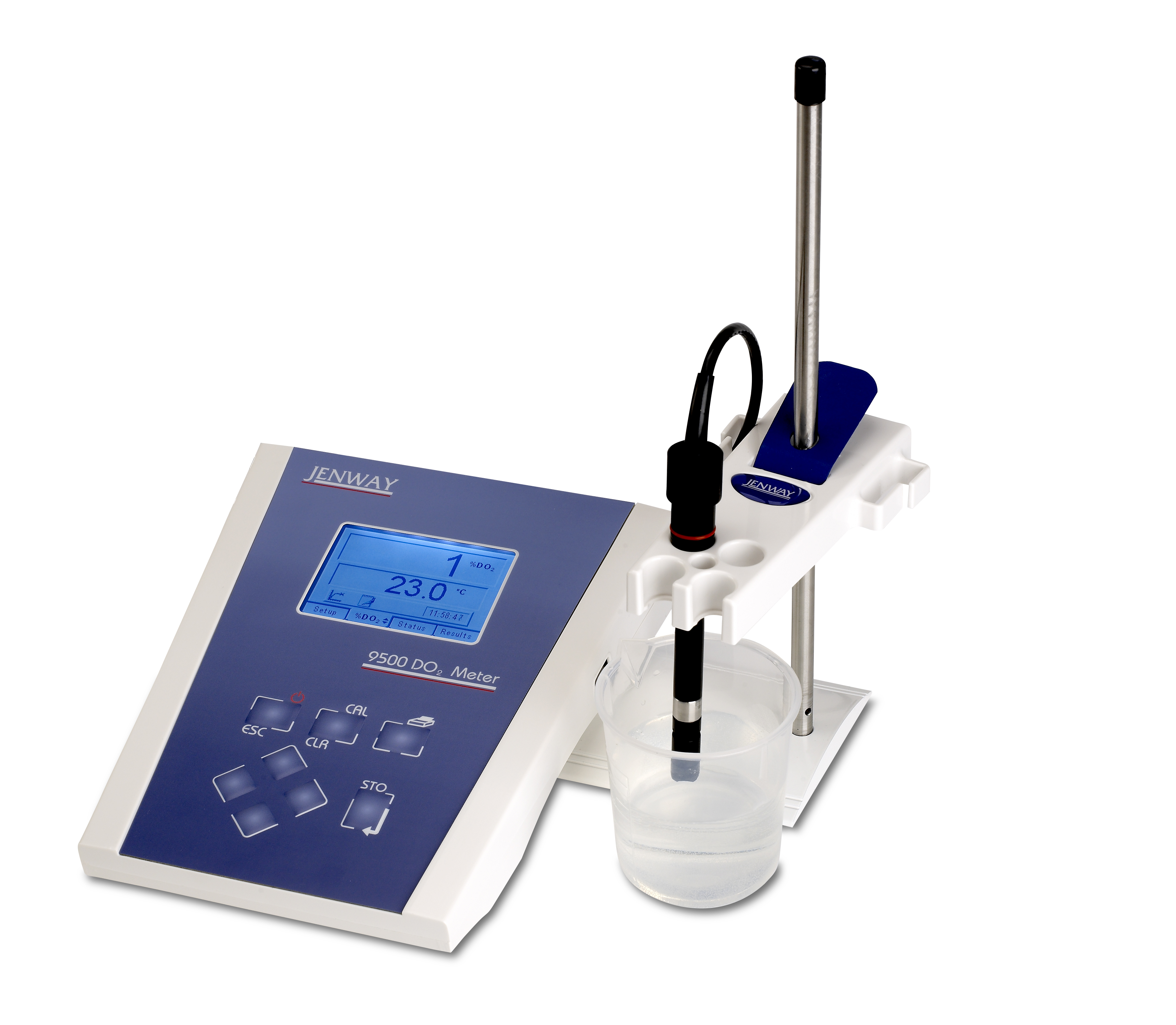

The Model 9500 is a fully specified dissolved oxygen meter that includes full support for the B.O.D 5-day test protocol.

Powerful data logging capabilities are included with the ability to store up to 250 results plus 20 B.O.D. tests (up to 10 samples per test) either manually, at timed intervals or alarmed events.

Remote monitoring and data collection is facilitated by the provision of both analogue and digital outputs and in the event of power removal all user defined parameters are retained.

For larger views, please click on the small photos above.

Data Sheet
Manual

950 001 - Model 9500 Dissolved Oxygen meter supplied with DO2 probe with ATC (522 008), electrode holder, UK power supply, condensed operating instructions and instruction manual

950 101 - Model 9500 Dissolved Oxygen meter supplied with DO2 probe with ATC (522 008), electrode holder, US power supply, condensed operating instructions and instruction manual

950 201 - Model 9500 Dissolved Oxygen meter supplied with DO2 probe with ATC (522 008), electrode holder, European power supply, condensed operating instructions and instruction manual

950 301 - Model 9500 Dissolved Oxygen meter supplied with DO2 probe with ATC (522 008), electrode holder, 230V leaded power supply, condensed operating instructions and instruction manual
