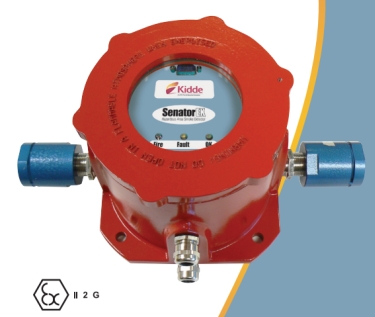

Kidde Senator EX High Sensitivity Smoke Detector



Senator Ex is a reliable very high sensitivity smoke detector for use in Hazarduous areas. The detector is supplied in either a cast aluminium or stainless steel enclosure.

Approvals: ATEX rated EEx d IIB +H2 T3, equipment group 2 (Zones 1, 2 and 3), group gases A and B + Hydrogen.

An external particle filter is provided allowing ease of maintenance without declassifying the area.

Upgradeable Fire and Fault relay outputs are available for interfacing to other fire alarm equipment.

Specifications

  Dimensions 400W x 200H x 165D inc. flame arrestors
  Weight 8.5Kg
  Enclosure rating IP65
  Operating temperature -10 to 60oC
  Operating humidity 0 to 90% RH, non condensing
  Voltage requirements 21.6 to 26.4V dc
  Quiescent current 1.1A @ 24V dc
  Indications LED indications "OK", "Fault" and "Fire"
  Relay outputs 2 x 500mA @ 30V dc - Fire, Fault (energised)
  Inputs RS485 for network connections
APIC address terminals for addressable loop
(Requires APIC addressable interface card)
  Sensitivity range Min 25%, Max 0.0015% ob/m

Kidde Senator EX High Sensitivity Smoke Detector


Datasheet

Ordering Information


9-30731-KID
Senator Ex
Aspirating smoke detector approved for use in hazardous areas. ATEX rated EExd IIB + H2 T3. Equipment group 2 (zones 1, 2 and 3). Group gases A and B + Hydrogen. Supplied with flame arrestors and external filter (30730). Maximum pipe length: 50m (25m in high airflow).Dimensions: 400w x 200h x 165d (inc. flame arrestors)

9-30732-KID
SENATOR Ex - stainless steel enclosure

Aspirating Smoke Detection System Accessories

9-30624-KID
Senator Command Module
Provides a single location display, control and interfacing option for systems of up to 127 detectors. The Command module allows global programming of all detector functions simultaneously.Large LCD and LED status indications. Requires external 24vdc supply.Dimensions: 425w x 370h x 115d

9-30627-KID
Senator 19" rack command module
Command module as per part no. 30624. Constructed in a compact stainless steel enclosure enabling mounting in a 3U high 19" rack mount cabinet.

9-30709-KID
Senator Command Module - steel enclosure
As per part number 30624-KID with a steel front cover for industrial type applications. Requires external 24vdc supply.Maximum pipe length: 4 x 50mDimensions: 425w x 370h x 115d

9-30802-KID
Senator Remote Display Unit (RDU)
The RDU connects to the Senator range of detectors using the RS485 data bus and mimics the LED status indications of the detector. The RDU monitors the status of a single detector. More than one RDU can be allocated to a single detector. The RDU can be mounted in either a single wall mounted enclosure or a 3U high 19" rack enclosure. Requires a 24vdc supply.

9-30803
RDU Relay board
This is an optional relay board which can be used with the Senator RDU to provide Volt Free Changeover Contacts for signalling to other equipment. Five relays are provided for Fire 1, Fire 2, Pre-alarm, Aux Alarm and Fault (energised).

9-30430
APIC card - Apollo protocol
Can be fitted internally to any Senator detector unit or Command Module allowing them to be connected to an Apollo protocol addressable loop. A single APIC may be used in Multi Address mode when installed inside a command module for signalling up to 127 detectors onto the addressable loop reducing costs on larger systems.

9-30720
Nano communication card
Optional card for installation in the Senator Nano Aspirating Detector. The communications card allows the Senator Nano to be connected to a PC or SenseNET network.

9-30436
Relay/Input card
The Relay/Input card can be fitted into the Senator 25 and 100 detectors to provide an additional five relay outputs for signalling to other equipment. Three inputs are provided on the card that can be programmed for remote reset, isolate, classifire override or PSU fault monitoring.



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
