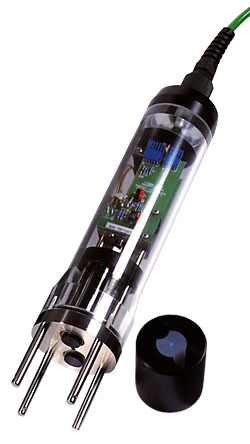

The Turbi-Tech 2000HR Sensor has been specifically designed for use in wastewater treatment systems where high levels of suspended solids are desirable in the aeration phase.

Membrane Batch reactors typically run with MLSS values in the region of 8,000 to 14,000 mg/l. High MLSS concentrations promote numerous process benefits, including stable operation, complete nitrification, and reduced biosolids production reducing biological volume requirements (and associated footprint) to only 20-30 percent of conventional biological processes. Further, the membrane tanks provide extremely space efficient solids separation and do not require a clarifier in the system.

The Turbi-Tech 2000HR sensor is suitable for monitoring solids in higher ranges than the standard LA version of the sensor due to it's shorter path length. The large optical surface and sample volume combine to ensure that the sensor is providing information that is reliable and representative of the solids present in the process. Deposits of fats and grease on the sensing area do not prevent the sensor from measuring unlike sensors with small optical surfaces In addition the sensor incorporates a self cleaning mechanism that ensures that the optical surfaces are kept clean at all times, the cleaning system is designed to avoid problems with ragging and does not smear the optical system. The cleaning system ensures that manual intervention on a routine basis is not required, the sensor should simply be checked as part of general site housekeeping.

The Turbi-Tech 2000HR Sensor uses Infrared Light at 860 nm and operates using the Light Attenuation Principle. The optics are housed in cylindrical glass tubes that are moved past a set of polyurethane wipers seals to carry out the cleaning process. The cleaning mechanism is then sealed by 2 Nitrile 'H' Rings that finish the cleaning process. The Nitrile seals can be exchanged for Viton if the process media dictates.

The cleaning process is automatically initiated by the 7200 Monitor at a user determined frequency. The cleaning process takes only 90 seconds, which means that the sensor is available for 99.5% of the time with a 5 hourly cleaning cycle.

An alternative to fixed installation is the 740 Portable Monitor which works with the Soli-Tech 10 Sensor to monitor both Final Effluent and Mixed Liquor in a single package.
