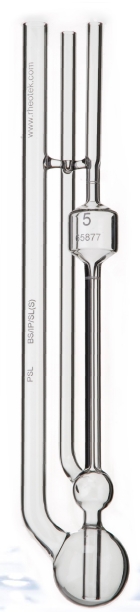

PSL Rheotek offers a comprehensive range of precision calibrated glass capillary viscometers. Viscometers are made by our experienced glass blowers from high grade borosilicate glass tubing. PSL Rheotek viscometers are used by refinery, testing and research laboratories throughout the world and enjoy a high reputation for quality workmanship and accuracy of calibration.

Viscometer calibration is performed on-site by our UKAS accredited ISO 17025 calibration laboratory. The PSL Calibration Laboratory maintains a master viscometer scale in accordance with ASTM D2162. All calibration data us directly traceable to international standards.

PSL Rheotek bitumen viscometers are suitable for measuring a wide range of liquid asphalts, bituminous binders and asphalt cements. For vacuum capillary viscometers, a bitumen vacuum system is available. Other accessories include viscometer bath, silicone bath oil and viscosity oil standards.

PSL Rheotek glass capillary viscometers are suitable for a wide range of applications. Applicable petroleum testing methods include ASTM D445, D446, D2162, D2170, D2171, ISO 3104 & ISO3105. Other applications include polymers, cellulose, blood and plasma.

  ASTM Ubbelohde - Suitable for measuring transparent liquids. High precision & easy to use. Nominal overall length 283 mm; approximate sample volume 18 ml. Complete with ISO 17025 certificate of calibration.

  U-Tube Reverse Flow Viscometers - Suitable for measuring opaque liquids. Type BS/IP/RF. Nominal overall length 275 mm; approximate sample volume 12-25 ml. Complete with ISO 17025 certificate of calibration.

  Cannon-Fenske Routine - Suitable for measuring transparent liquids. Calibration data stated at 40 & 100ºC. Nominal overall length 250 mm; approximate sample volume 7 ml. Complete with ISO 17025 certificate of calibration.

  Cannon-Fenske Opaque - Suitable for measuring opaque liquids. Calibration data stated at 40 & 100ºC. Nominal overall length 295 mm; approximate sample volume 12 ml. Complete with ISO 17025 certificate of calibration.

  Cannon-Ubbelohde Viscometers - Suitable for transparent liquids. Nominal overall length 335mm, approximate sample size 11 ml. Complete with ISO 17025 certificate of calibration.

  Suspended-Level Viscometers - Suitable for measuring transparent liquids. Type BS/IP/SL – Nominal overall length 330mm; approximate sample volume 22-40 ml. Complete with ISO 17025 certificate of calibration.

  Suspended-Level Viscometers Shortened Form - Suitable for measuring transparent liquids. Type BS/IP/SL – Nominal overall length 250mm; approximate sample volume 10 ml. Complete with ISO 17025 certificate of calibration.

  Miniature Suspended-Level Viscometers - Suitable for measuring transparent liquids. Type BS/IP/MSL – Nominal overall length 330mm; approximate sample volume 4 ml. Complete with ISO 17025 certificate of calibration.

  Cannon-Manning Vacuum Capillary Viscometer - Suitable for measuring the dynamic viscosity of bituminous binders. Nominal overall length 245 mm. Calibrated in accordance with EN 12596 and ASTM D2171.

  Asphalt Institute Vacuum Capillary Viscometer - Suitable for measuring the dynamic viscosity of bituminous binders. Nominal overall length 245 mm. Calibrated in accordance with EN 12596 and ASTM D2171.

  Modified Koppers Vacuum Capillary Viscometer - Suitable for measuring the dynamic viscosity of bituminous binders. Nominal overall length 270 mm. Calibrated in accordance with EN 12596 and ASTM D2171.

  Vacuum System for bituminous binders - Complete with vacuum controller, vacuum pump, valve control module and glass bottle.

  U-Tube Viscometers - Suitable for measuring transparent liquids. Type BS/U - Nominal overall length 300 mm, approximate sample volume 13-40 ml. Complete with ISO 17025 certificate of calibration.

  Cannon Manning Semi-Micro Viscometers - Type ASTM – Suitable for transparent liquids. Nominal overall length 275 mm; approximate sample volume 1 ml. Complete with ISO 17025 certificate of calibration.

  Miniature U-Tube Viscometers - Suitable for measuring transparent liquids. Type BS/U/M - Nominal overall length 250 mm, approximate sample volume 4 ml. Complete with ISO 17025 certificate of calibration.

  Zeitfuchs Cross-Arm Viscometers - Type ASTM – Nominal overall length 295 mm; approximate sample volume up to 3 ml. Complete with ISO 17025 certificate of calibration.
