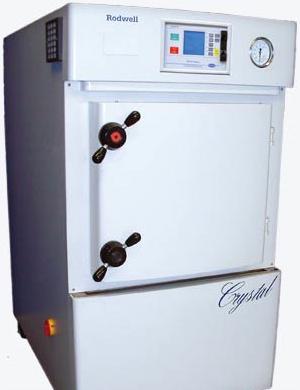

Crystal Autoclave by Rodwell Scientific Instruments
The Crystal is a powerful workhorse, combining large capacity with clever design features designed to save you time and money in the running of your laboratory.
Design Features
200, 250 & 300 litre variants MP 25 Control Square section chamber Cost effective hinge / bolt door Fixed seal Space-saving design Integral drip tray under door Efficient fan assisted cooling
Optional Accessories
Loading trolley Scale prevention system Waste discard system Range of cycle recording systems Air Ballasting option Drain condenser for plastic drains Baskets and Trays Vacuum air removal systems
Formats
1) Separate under chamber steam generator 2) Pre-heated steam generator 3) Heating from an external steam source 4) Steam heated with generator back-up 5) Liquid ring pre & post cycle vacuum
(available with formats 3, 4 & 5) 6) 300 litre double door variant
Capacities and Dimensions
Crystal 200
Chamber Capacity: 200 litres
Vessel dimensions (mm): 510w x 510h x 670d
Overall dimensions (mm: 830w x 1600h x 1450d
Crystal 250
Chamber Capacity: 250 litres
Vessel dimensions (mm): 510w x 510h x 860d
Overall dimensions (mm: 830w x 1600h x 1450d Crystal 300
Chamber Capacity: 300 litres
Vessel dimensions (mm): 510w x 510h x 1030d
Overall dimensions (mm: 830w x 1600h x 1450d
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
