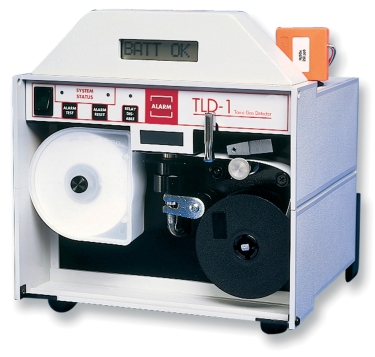

Sieger ChemKey TLD Toxic Gas Detector


The ChemKey TLD Toxic Gas Monitor by Sieger provides a reliable solution for both emergency responses and fixed area gas detection in a cost effective manner.

Utilising the Gas Selection System exclusive to ChemKey, a single monitor is capable of monitoring over 50 different gases with just a change of the ChemKey and Chemcassette.

You are assured of substance specific, fast and sensitive exposure protection. Any danger of false alarms is never the case or results that are inaccurate caused by other commonly present chemicals.

Features & Benefits

  Battery operated or line powered
  Low maintenance and no dynamic gas calibration
  Variety of signals outputs to meet monitoring needs

Quick Specs

  Detection technique: Chemcasstte Direction System
  Response Time: As fast as 10 seconds
  Alarm indication: Audio and visual alarms

Sieger ChemKey TLD Toxic Gas Detector


Brochure
Technical Manual

Ordering Information


TLD-1

870023 100 VAC, 50/60 Hz
870500 115 VAC, 50/60 Hz
870501 230 VAC, 50/60 Hz

Supplies, Accessories and Options

1998M0092 ChemKey/TLD Standard Operating Instructions TLD Operating Instructions (for non-ChemKey instruments previously sold)
102599 Sample Tubing 1/4" O.D. x 1/8" I.D. FEP (per foot)
1998M0092 ChemKey/TLD Standard Operating Instructions (one included with instrument)
870209 Assembly Test Card

Available ChemKey Gases and Alarm Level

870596-1 (1) Ammonia-II (NH3) with 25 ppm alarm
870596-2 Ammonia-II (NH3) with 50 ppm alarm
870682-1 n-Butylamine (N-BA) with 5 ppm alarm
870682-2 n-Butylamine (N-BA) with 10 ppm alarm
870551-1 Bromine (Br2) with 100 ppb alarm
870551-2 Bromine (Br2) with 200 ppb alarm
870597-1 (2) Chlorine-II (Cl2) with 0.5 ppm alarm
870597-2 Chlorine-II (Cl2) with 1.0 ppm alarm
1971-0177 Chlorine (Cl2) Extended Play with 0.5/1.5 ppm alarm
1971-0178 Chlorine (Cl2) Extended Play with 1.0/1.5 ppm alarm
870587-1 (3 )Chlorine Dioxide (ClO2) with 100 ppb alarm
870587-2 Chlorine Dioxide (ClO2) with 200 ppb alarm

(4) Diisocyanates ChemKey

870553-1 CHDI with 5 ppb alarm
870553-2 CHDI with 20 ppb alarm
870554-1 HDI with 5 ppb alarm
870554-2 HDI with 20 ppb alarm
870555-1 HMDI with 5 ppb alarm
930016-1 HMDI with 10 ppb alarm
870555-2 HMDI with 20 ppb alarm
870679-1 IEM with 5 ppb alarm
870679-2 IEM with 20 ppb alarm
870556-1 IPDI with 5 ppb alarm
870556-2 IPDI with 20 ppb alarm
870557-1 MDI with 5 ppb alarm
870997 MDI with 10 ppb alarm
870557-2 MDI with 20 ppb alarm
870593-1 MDI-II with 5 ppb alarm
870593-2 MDI-II with 20 ppb alarm
870558-1 NDI with 5 ppb alarm
870558-2 NDI with 20 ppb alarm
870559-1 PPDI with 5 ppb alarm
870559-2 PPDI with 20 ppb alarm
870560-1 TDI with 5 ppb alarm
870998 TDI with 10 ppb alarm
870560-2 TDI with 20 ppb alarm
870561-1 TMDI with 5 ppb alarm
870561-2 TMDI with 20 ppb alarm
870586-1 TMXDI with 5 ppb alarm
870586-2 TMXDI with 20 ppb alarm
870584-1 XDI with 5 ppb alarm
870584-2 XDI with 20 ppb alarm

(5) Hydrazines ChemKey

1971-0036 MMH with 5 ppb alarm
1971-0035 MMH with 10 ppb alarm
1971-0071 MMH with 20 ppb alarm
870562-1 MMH with 200 ppb alarm
870562-2 MMH with 400 ppb alarm
1971-0072 N2H4 with 10 ppb alarm
1971-0070 N2H4 with 20 ppb alarm
870563-1 N2H4 with 100 ppb alarm
870563-2 N2H4 with 200 ppb alarm
870599-1 UDMH with 10 ppb alarm
870599-2 UDMH with 20 ppb alarm
870564-1 UDMH with 500 ppb alarm
870564-2 UDMH with 1000 ppb alarm

(6) Hydrides ChemKey

870565-1 Arsine (AsH3) with 50 ppb alarm
870565-2 Arsine (AsH3) with 100 ppb alarm
870566-1 Diborane (B2H6) with 100 ppb alarm
870566-2 Diborane (B2H6) with 200 ppb alarm
870567-1 Disilane (Si2H6) with 5 ppm alarm
870567-2 Disilane (Si2H6) with 10 ppm alarm
870569-1 Hydrogen Selenide (H2Se) with 50 ppb alarm
870569-2 Hydrogen Selenide (H2Se) with 100 ppb alarm
870570-3 Phosphine (PH3) with 100 ppb alarm
870570-4 Phosphine (PH3) with 200 ppb alarm
870570-1 Phosphine (PH3) with 300 ppb alarm
870570-2 Phosphine (PH3) with 600 ppb alarm
870571-1 Silane (SiH4) with 5 ppm alarm
870571-2 Silane (SiH4) with 10 ppm alarm
870572-1 Stibine (SbH3) with 100 ppb alarm
870572-2 Stibine (SbH3) with 200 ppb alarm
870595-1 Tertbutylarsine (TBA) with 50 ppb alarm
870595-2 Tertbutylarsine (TBA) with 100 ppb alarm
870976-1 Tertbutylphosphine (TBP) with 300 ppb alarm
870976-2 Tertbutylphosphine (TBP) with 600 ppb alarm

(7) Hydrides - Extended Play - ChemKey only

1971-0126 Arsine (AsH3) with 50 ppb alarm
1971-0127 Arsine (AsH3) with 100 ppb alarm
1971-0125 Arsine LL with 2 ppb alarm
1971-0124 Arsine LL with 4 ppb alarm
1971-0129 Diborane (B2H6) with 100 ppb alarm
1971-0128 Diborane (B2H6) with 200 ppb alarm
1971-0130 Phosphine (PH3) with 300 ppb alarm
1971-0131 Phosphine (PH3) with 600 ppb alarm
1971-0132 Silane (SiH4) with 5.0 ppm alarm
1971-0133 Silane (SiH4) with 10.0 ppm alarm
870573-3 Hydrogen Cyanide (HCN) with 4.7 ppm alarm
930013-3 Hydrogen Cyanide (HCN) with 9.4 ppm alarm
870573-1 Hydrogen Cyanide (HCN) with 10 ppm alarm
870573-2 Hydrogen Cyanide (HCN) with 20 ppm alarm
870585-1 Hydrogen Peroxide (H2O2) with 1 ppm alarm
870585-2 Hydrogen Peroxide (H2O2) with 2 ppm alarm
870574-1 Hydrogen Sulphide (H2S) with 10 ppm alarm
870574-2 Hydrogen Sulphide (H2S) with 20 ppm alarm
930005-8 Hydrogen Sulphide (H2S) Low Level with 3 ppb alarm
930005-10 Hydrogen Sulphide (H2S) Low Level with 10 ppb alarm
930005-6 Hydrogen Sulphide (H2S) Low Level with 30 ppb alarm
930005-12 Hydrogen Sulphide (H2S) Low Level with 50 ppb alarm
930011-6 Methylene Dianiline (MDA) with 20 ppb alarm
930011-4 Methylene Dianiline (MDA) with 40 ppb alarm
Note: Must have unit upgraded to use these calibrations.

(8) Mineral Acids ChemKey

1971-0160 Boron Trifluoride (BF3) LL with 500 ppb alarm
1971-0161 Boron Trifluoride (BF3) LL with 750 ppb alarm
870575-1 Hydrogen Bromide (HBr) with 3 ppm alarm
870575-2 Hydrogen Bromide (HBr) with 6 ppm alarm
870576-1 Hydrogen Chloride (HCl) with 5 ppm alarm
870576-2 Hydrogen Chloride (HCl) with 10 ppm alarm
870577-1 Hydrogen Fluoride (HF) with 2 ppm alarm
870577-2 Hydrogen Fluoride (HF) with 4 ppm alarm
870578-1 Nitric Acid (HNO3) with 2 ppm alarm
870578-2 Nitric Acid (HNO3) with 4 ppm alarm
870579-1 Sulphuric Acid (H2SO4) with 250 ppb alarm
870579-2 Sulphuric Acid (H2SO4) with 500 ppb alarm
1971-0146* Fluorine (F2) with 1.0 ppm alarm
1971-0147* Fluorine (F2) with 2.0 ppm alarm
1971-0148* Fluorine (F2) Low Level with 0.1 ppm alarm
1971-0149* Fluorine (F2) Low Level with 0.2 ppm alarm
*Note: Fluorine Calibration part numbers require unit to have Version 1.07 software.
870977 Nitrogen Dioxide (NO2) with 1 ppm alarm
930004-4 Nitrogen Dioxide (NO2) with 2 ppm alarm
870580-1 Nitrogen Dioxide (NO2) with 3 ppm alarm
870996 Nitrogen Dioxide (NO2) with 5 ppm alarm
870580-2 Nitrogen Dioxide (NO2) with 6 ppm alarm
870581-1 Ozone (O3) with 100 ppb alarm
870581-2 Ozone (O3) with 200 ppb alarm
870676-1 p-Phenylenediamine (PPD) with 20 ppb alarm
870676-2 p-Phenylenediamine (PPD) with 40 ppb alarm
870582-1 Phosgene (COCl2) with 100 ppb alarm
870582-2 Phosgene (COCl2) with 200 ppb alarm
870583-1 Sulphur Dioxide (SO2) with 2 ppm alarm
870583-2 Sulphur Dioxide (SO2) with 4 ppm alarm
870691-1 Toluene Diamine (TDA) with 20 ppb alarm
870691-2 Toluene Diamine (TDA) with 40 ppb alarm
870594-1 Trimethyl Amine (TMA) with 10 ppm alarm
870594-2 Trimethyl Amine (TMA) with 20 ppm alarm

(9) Mineral Acids - Extended Play - ChemKey

1971-0247 Hydrogen Bromide (HBr) LL with 500 ppb alarm
1971-0248 Hydrogen Bromide (HBr) LL with 1000 ppb alarm
1971-0228 Hydrogen Bromide (HBr) with 2 ppm alarm
1971-0229 Hydrogen Bromide (HBr) with 4 ppm alarm
1971-0249 Hydrogen Chloride (HCl) LL with 200 ppb alarm
1971-0250 Hydrogen Chloride (HCl) LL with 400 ppb alarm
1971-0224 Hydrogen Chloride (HCl) with 2 ppm alarm
1971-0225 Hydrogen Chloride (HCl) with 4 ppm alarm
1971-0251 Hydrogen Fluoride (HF) LL 500 ppb alarm (export restrictions)
1971-0252 Hydrogen Fluoride (HF) LL 1000 ppb alarm (export restrictions)
1971-0220 Hydrogen Fluoride (HF) with 2 ppm alarm
1971-0221 Hydrogen Fluoride (HF) with 4 ppm alarm
1971-0243 Boron Trifluoride (BF3) LL with 500 ppb alarm
1971-0244 Boron Trifluoride (BF3) LL with 750 ppb alarm
1971-0245 Boron Trifluoride (BF3) LL with 1 ppm alarm
1971-0246 Boron Trifluoride (BF3) LL with 2 ppm alarm

Electronics

711328 Cord, Power 230 VAC
870268 Charger, Battery TLD (90-264VAC, 47-63Hz)US, Eur and UK connectors
870270 Battery, 12V, 2 Amp

Flow System

1991-0147 End of Line Particulate Filter for Corrosive Gases, Disposable. This disposable filter provides protection against particulate build up in the sample line when monitoring for Corrosive Gases
1830-0055 End of Line Particulate Filter for Corrosive Gases, Reusable. This reusable filter housing provides protection against particulate build up in the sample line when monitoring for Corrosive Gases. Replaceable filter element (P/N 0235-1072) purchased separately
0235-1072 Replacement "Corrosive" Filter Elements (pk 100). For use in 1830-0055 filter housing
0235-0095 Union Fitting - use to connect disposable filter to end of line



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
