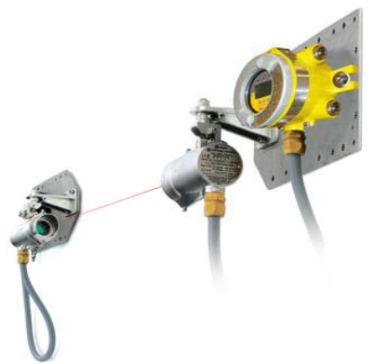

Sieger Searchline Excel Kits with XNX Transmitters


Excel kits including standard XNX transmitter configured with HART® over 4-20mA output and local IS HART® port.

For Excel kits including other XNX transmitter configurations, please contact us.

A calibration has to be ordered with every XNX Excel kit.

For more details on both the Searchline Excel and the XNX Transmitter, please click on either of the following links:

Searchline Excel

XNX Universal Transmitter

Part Numbers

Excel kits including standard XNX transmitter with HART® over 4-20mA outputs and local IS HART® port.

Excel Short Range 5m - 40m (15ft - 130ft)

02104-N-XSAA XNX Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA and HART® outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, Ex e junction box with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-XSSA XNX Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA and HART® outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, Ex e junction box with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-XSAU XNX Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA and HART® outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XSSU XNX Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA and HART® outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XSAC XNX Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA and HART® outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XSSC XNX Excel line-of-sight gas detection system, short range (5 to 40m), 4 to 20mA and HART® outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-NSNA Excel line-of-sight gas detection system (without XNX, please order required XNX separately), short range (5 to 40m), 4 to 20mA output, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware. XNX and junciton boxes to be ordered seperately.

Excel Medium Range 40m - 120m (130ft - 390ft)

02104-N-XMAA XNX Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA and HART®outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, Ex e junction box with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-XMSA XNX Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA and HART® outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, Ex e junction box with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-XMAU XNX Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA and HART® outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XMSU XNX Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA and HART® outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XMAC XNX Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA and HART® outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XMSC XNX Excel line-of-sight gas detection system, medium range (40 to 120m), 4 to 20mA and HART® outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-NMNA Excel line-of-sight gas detection system (without XNX, please order required XNX separately), medium range (40 to 120m), 4 to 20mA output, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware. XNX and junciton boxes to be ordered seperately.

Excel Long Range 120m - 200m (390ft - 650ft)

02104-N-XLAA XNX Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA and HART® outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, Ex e junction box with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-XLSA XNX Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA and HART® outputs, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, Ex e junction box with M20/M25 cable entries, 316SS mounting plates, brackets and hardware

02104-N-XLAU XNX Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA and HART® outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XLSU XNX Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA and HART® outputs, UL, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XLAC XNX Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA and HART® outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, aluminimum XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-XLSC XNX Excel line-of-sight gas detection system, long range (120 to 200m), 4 to 20mA and HART® outputs, FM/CSA, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, stainless steel XNX, junction box with 3/4"NPT cable entries, 316SS mounting plates, brackets and hardware

02104-N-NLNA Excel line-of-sight gas detection system (without XNX, please order required XNX separately), long range (120 to 200m), 4 to 20mA output, ATEX/IECEx, fully wired with flexible conduit, electro polished 316SS. Includes Tx, Rx, 316SS mounting plates, brackets and hardware. XNX and junciton boxes to be ordered seperately.

XNX and Excel Alignment Kits

02104-N-4006X Short Range Excel & XNX alignment and conformity kit including telescope, carry case and test filters (no SHC1)
02104-N-4007X Long/Medium Range Excel & XNX alignment and conformity kit including telescope, carry case and test filters (no SHC1)

Installation Accessories

94000-A-1017 XNX / Excel receiver & transmitter sunshade kit with fixing bolts in 316SST painted white - fits standard Excel mounting plate
90083-A-8055 Excel Kit 4 off 6" U-Bolts x M8 C/W Nuts and Washers 316SS. For Use with Standard Mounting Plate
90083-A-8034 2 x 2" U-Bolts x M6 C/W Nuts and Washers 316SST (Note: Please order 4 pcs per Excel)
90082-A-5020 Excel SR snow cover
90082-A-5024 Excel MR / LR snow cover

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
