One of the key building blocks of the MeshGuard intelligent network of connected sensors, the Sieger MeshGuard is a battery-powered wireless gas detector.

The MeshGuard network is used for gas detection in oil and gas applications, as well as industrial safety.

The MeshGuard system has been designed for rapid deployment in areas where low cost/high ROI solutions are required.

Toxic and flammable gases are detectable with the MeshGuard, which also has field replaceable precision sensors.

Key Features

  Self-forming wireless network; units come online automatically
  Compact and lightweight
  IP-65 rated weather resistant, and splash guard equipped for sensor protection
  Multiple controller options for real-time wireless data collection and viewing
  Self-healing network automatically routes data back to controller through best wireless path available
  Battery powered operation for up to 6 months
  SolarPak provides 24/7 uptime
  Intrinsically Safe
  Magnetic mounting option for quick and easy MeshGuard installation

Applications

  Oil and gas drilling operations
  Oil and gas production
  Plant maintenance turnarounds
  Industrial safety
  Tank farms
  Shipyards and maritime

Data Sheet
Manual

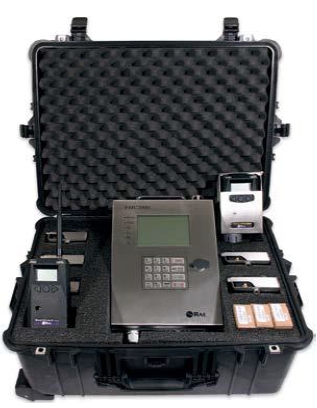

MeshGuard System Kits

D01-M144-203 MeshGuard Hydrogen Sulfide Compliance Kit 6x H2S Detectors + 1x Router Disposable batteries needs to be ordered separately. See also *note below. Minimum 15 disposable batteries are recommended to be ordered seperately.

D01-M044-203 MeshGuard Hydrogen Sulfide Extension Kit (same as Compliance Kit w/o controller) 6x H2S Detectors + 1x Router Disposable batteries needs to be ordered separately. See also *note below. Minimum 15 disposable batteries are recommended to be ordered seperately.

D01-M140-003 MeshGuard Hydrogen Sulfide Compliance Kit 4x H2S Detectors Disposable batteries needs to be ordered separately. See also *note below. Minimum 12 disposable batteries are recommended to be ordered seperately.

D01-M188-203 MeshGuard Carbon Monoxide Compliance Kit 6x CO Detectors + 1x Router Disposable batteries needs to be ordered separately. See also *note below. Minimum 15 disposable batteries are recommended to be ordered seperately.

D01-0001-001 MeshGuard LEL Kit including external powerpaks (comes in 3 ruggedized transportation cases) 4x LEL Detectors Disposable batteries needs to be ordered separately. See also *note below. Minimum 8 disposable batteries are recommended to be ordered seperately.

D01-0002-001 MeshGuard LEL and H2S Kit including external powerpaks (comes in 3 ruggedized transportation cases) 4x LEL Detectors + 4x H2S Detectors Disposable batteries needs to be ordered separately. See also *note below. Minimum 8 disposable batteries are recommended to be ordered seperately.

*Note: All Kits will not include disposable batteries. The batteries need to be ordered separately and will be shipped separately as dangerous goods. Please use following part numbers to order the batteries as required: P/N: 500-0111-000-01: Battery, Cell, Li/SO Cl2, D-Size, 3.6V, each or P/N: 500-0111-000-05: Battery, Cell, Li/SO Cl2, D-Size, 3.6V, pack of 5

Accessories included in the MeshGuard Compliance Kit

D01-0300-001 Kit, MeshGuard Detector stainless steel mounting bracket, with pole mounting
019-2034-010 SENSOR FILTER, PACK of 10
019-3020-000 CALIBRATION CAP
081-0014-000 SERVICE TOOL
430-0377-002-10 O-ring for sensor cover, PACK OF 10
430-0377-004-10 O-ring for filter cover, PACK OF 10
430-0377-003-10 O-ring for battery cover, PACK OF 10
300-3002-000 ANTENNA, EXTENSION, 2.4GHZ, SMA CONNECTOR
D01-4013-000 QUICK START GUIDE
D01-4005-001 RESOURCE CD

Accessories included in the MeshGuard Compliance Kit

F01-0001-001 KIT, MULTI CONTROLLER, 2.4GHZ 1.5DB, FMC2000 Supports 24 detectors
W021-0020-000 RadiantReader Real Time Wireless Communication. Modem Mesh 2.4GHZ. STD.
W021-0030-000 RadiantReader - Russia Real Time Wireless Communication. Modem Mesh 2.4GHZ. STD.

MeshGuard Detectors

D01-B001-011 MeshGuard Detector, Hydrogen Sulfide H2S Range: 0.1 to 100 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B00G-011 MeshGuard Detector, Flammables LEL* Range: 1 to 100% LEL Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B00J-011 MeshGuard Detector, Flammables LEL IR* Range: 1 to 100% LEL Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B003-011 MeshGuard Detector, Carbon Monoxide CO Range: 0 to 2000 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B00P-011 MeshGuard Detector, Carbon Dioxide CO2 Range: 0 to 5% vol Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B00Q-011 MeshGuard Detector, Carbon Dioxide CO2 Range: 0 to 100% vol Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B00D-011 MeshGuard Detector, Oxygen Range: 0 to 25% vol Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B00A-011 MeshGuard Detector, Ammonia NH3 Range: 0 to 100 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B008-011 MeshGuard Detector, Chlorine CI2 Range: 0 to 10 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B005-011 MeshGuard Detector, Sulfur Dioxide SO2 Range: 0.1 to 20 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

D01-B006-011 MeshGuard Detector, Sulfur Dioxide SO2 Range: 0.1 to 100 ppm Disposable batteries needs to be ordered separately. See also **note below. Minimum 1 disposable battery is recommended to be ordered seperately.

Accessories

F03-0002-000 Stainless Steel PowerPak (4 cell) - no charger

F04-B111-100 Mesh Router, 2.4 GHz Disposable batteries needs to be ordered separately. See also **note above. Minimum 1 disposable battery is recommended to be ordered seperately."

F04-C111-100 EchoView, 2.4 GHz Disposable batteries needs to be ordered separately. See also **note above. Minimum 1 disposable battery is recommended to be ordered seperately."

F06-0002-000 SolarPak Kit with LEL detector and PowerPak - US (Includes LEL detector in Stainless Steel housing, PowerPak, Mounting plate, SolarPak, Pole/Wall mount, AC charger, all in a single Pelican case)

F06-0002-001 SolarPak Kit with LEL detector and PowerPak - EU (Includes LEL detector in stainless steel housing, PowerPak, Mounting plate, SolarPak, Pole/Wall mount, AC charger, all in a single Pelican case)

F06-0002-002 SolarPak Kit with LEL detector and PowerPak - UK (Includes LEL detector in stainless steel housing, PowerPak, Mounting plate, SolarPak, Pole/Wall mount, AC charger, all in a single Pelican case)

F06-0001-000 SolarPak (Solar panel charger for PowerPak with pole/wall mount assembly)

F06-0002-100 SolarPak Kit - (SolarPak, PowerPak Mounting Plate, Pelican Case )

F06-3006-000 SolarPak pole/wall mount assembly (no solar panel)

F06-3007-000 SolarPak pole/wall mount assembly replacement screws/washers/nuts. Pack of 10.

F03-0005-000 Kit, 2 stainless steel PowerPaks (4 cell) + chargers in pelican case (US cables)

F03-0005-001 Kit, 2 stainless steel PowerPaks (4 cell) + chargers in pelican case (EU cables)

F03-0005-002 Kit, 2 stainless steel PowerPaks (4 cell) + chargers in pelican case (UK cables)

D01-3003-000 Connection cable for RAE PowerPak to MeshGuard 1m (C1D1 / Zone 0)

D01-3004-000 Connection cable for RAE PowerPak to MeshGuard 5m (C1D1 / Zone 0)

701-0010-200 Transportation box for 2 PowerPaks (PowerPak Kit)

701-0010-300 Transportation box for SolarPak (Pelican case with custom foam that holds SolarPak, PowerPak, detector, mounting plate, AC charger)

701-0021-000 Transportation box for 8 MeshGuard detectors (Extenstion Kit)

701-0027-000 Transportation box for controller and 8 MeshGuard detectors (Compliance Kit)

F03-3016-000 Steel mounting board Kit for PowerPak

D01-0300-001 Kit, MeshGuard Detector stainless steel mounting bracket, with splash guard, with pole mounting

D01-0300-002 Kit, MeshGuard Detector stainless steel mounting bracket, with splash guard, with magnet mounting

019-2055-000 MeshGuard detector stainless steel mounting bracket

033-2004-000 Splash Guard for stainless steel mounting bracket

D01-3002-000 Magnet Mount, Stainless Steel, MeshGuard

019-2052-000 Pole Mount, Aluminium, MeshGuard

032-0102-003 Sensor, H2S for MeshGuard, 0 to 100 ppm

032-0100-000 Sensor, CO for MeshGuard, 0 to 2000 ppm

D01-3012-000 Sensor, CO2 IR for MeshGuard, 0 to 5% Vol

D01-3013-000 Sensor,CO2 IR for MeshGuard, 0 to 100%Vol

014-0212-000 Sensor, LEL for MeshGuard, 0 to 100% LEL

D01-3011-000 Sensor, LEL IR for MeshGuard, 0 to 100% LEL

045-1113-000 Sensor, SO2 for MeshGuard, 0 to 20 ppm

045-1113-000 Sensor, SO2 for MeshGuard, 0 to 100 ppm

045-1116-000 Sensor, Cl2 for MeshGuard, 0 to 10 ppm

045-1118-000 Sensor, NH3 for MeshGuard, 0 to 100 ppm

046-1161-000 Sensor, O2 for MeshGuard, 0 to 25 % vol

081-0014-000 Maintenance tool for MeshGuard battery and sensor replacement

019-3020-000 Detector Calibration Cap

Consumables and Spares

019-2034-010 SENSOR FILTER, PACK of 10

019-2046-010 Carbon Filter, CO Sensor, MeshGuard, pack of 10

500-0111-000-01 Battery, Cell, Li / SO Cl2, D-SIZE, 3.6V, each

500-0111-000-05 Battery, Cell, Li / SO Cl2, D-SIZE, 3.6V, pack of 5

550-7024-000 Antenna,rubberized, 5dBi,SMA Connector(standard on detector and controller)

D01-3005-000 Antenna, Fiberglass, Outdoor, 8 dbi, pole mount, 10m/30ft extension cable

D01-3005-001 External Antenna with 10m RF cable and lightning arrester, N(MALE)

019-2015-000 Sensor cover, MeshGuard

430-0377-002-10 O-ring for sensor cover, PACK OF 10

019-2014-000 Battery cover, MeshGuard

430-0377-003-10 O-ring for battery cover, PACK OF 10

019-2025-000 Filter Cover, Stainless Steel, MeshGuard

430-0377-004-10 O-ring for filter cover, PACK OF 10

490-3027-002 Replacement keys for FMC-2000 controller.

430-4031-000-10 Replacement screws and washers for detector steel mounting bracket. Pack of 10.

F03-3014-000 CHARGER KIT, RAE POWERPAK, W/ EU POWER CABLE

F03-3014-001 CHARGER KIT, RAE POWERPAK, W/ US POWER CABLE

F03-3014-002 CHARGER KIT, RAE POWERPAK, W/ UK POWER CABLE

F01-3010-001 Replacement wall mounting bracket for FMC-2000

F03-3021-000 Replacement screws for PowerPak steel mounting board.

Fixed Head Wireless Relays

F08-0011-010 KIT,RAEPOINT W/ ALARM BAR,REMOTE,2.4G

F08-0001-010 KIT,RAEPOINT W/ ALARM BAR,REMOTE,2.4G,ATEX/IECEX

F08-0011-000 RAEPOINT,RRA2000.CSA.REMOTE.RM2400A_2.4GHZ.W/ O ALARM BAR.STD. KIT

F08-0001-000 RAEPPOINT, RRA2000.ATEX/IECEX.REMOTE.RM2400A_2.4GHZ.W/O ALARM BAR.STD.KIT

F08-0013-000 RAEPOINT,RRA2000.CSA.ROUTER.RM2400A_2.4GHZ.W/ O ALARM BAR.STD. KIT

F08-0003-000 RAEPOINT, RRA2000.ATEX/IECEX.ROUTER.RM2400A_2.4GHZ.W/O ALARM BAR.STD.KIT

Accessories

550-7024-000 Antenna, rubberized, 5dBi, SMA Connector (standard)

D01-3005-000 Antenna, Fiberglass, Outdoor, 8dBI, Pole mount, 10m/30ft extension cable

F08-2005-000 Replacement steel antenna base cover (for standard antenna)

Calibration Gases

GASNH3-50-N2-58 50 PPM AMMONIA IN NITROGEN 58L
GASCO-500-AIR-34 500 PPM CARBON MONOXIDE IN AIR 34L
GASCO2-5000N2-34 5000PPM(0.5%) CO2INN2 34L
GASCL2-5-N2-58 5 PPM CHLORINE IN NITROGEN 58L
GASH2S-25-N2-58 25 PPM HYDROGEN SULPHIDE IN NITROGEN 58L
GASCH4-22-AIR-58 2.2% CH4 IN AIR (ATEX = 50% LEL) 58L
GASCH4-25-AIR-58 2.5% CH4 IN AIR (US = 50% LEL) 58L
GASSO2-5-N2-58 5 PPM SULPHUR DIOXIDE IN NITROGEN 58L

Regulators and Kit Case

REG-0.50 FIXED FLOW REG. 0.5 LPM
REG-1.00 FIXED FLOW REGULATOR 1 LPM
CK-01 Calibration kit case (no gas or regulator) holds two 34 or 58 liter cylinders
