Zareba Sensepoint XCL

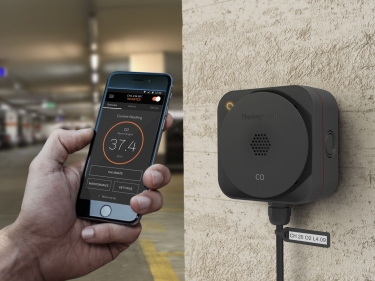

Sensepoint XCL is a fixed gas detector that delivers the safety and compliance you expect - plus the affordability and ease of use that you don't. It was designed especially for commercial and light industrial applications, delivering just the right amount of functionality to protect people on your premises and ensure compliance with regulations. Sensepoint XCL combines a simple yet robust mechanical housing with a gas detector app, so you can use everyday technology to set up and maintain your gas detector - and quickly get back to business. Sensepoint XCL is available as a flammable gas detector for the detection of potentially explosive gases, or as a toxic gas detector for the detection of a range of toxic gas hazards commonly found in commercial premises.

Thanks to Honeywell's use of Bluetooth Low Energy (BLE) technology, you can install, commission and maintain your Sensepoint XCL gas detector - all from the palm of your hand. Simply pair the detector with your smartphone; then use Honeywell's Sensepoint XCL gas detector app to wirelessly perform many tasks - from adjusting set points to checking fault codes - from up to 10 meters away.

Everything you need for installation is in the box, organized for fast, convenient startup. Use our simple drilling templates and a standard toolkit for installation. And for initial calibration, all you need is our gas detector app on your smartphone and a cylinder of calibration gas - no need for walkie-talkie guidance with the control room. Use the app to create a profile for the detector, choose alarm set points, run test procedures and automatically generate a commissioning report, which you can send from your phone to other stakeholders or store for easy access in a safety inspection. No need for paperwork.


Data Sheet
Brochure
Quick Start Guide
Manual

Sensepoint XCL's smartphone-based experience significantly reduces the time you spend on gas detector maintenance. For sensor replacement, simply remove one screw on the cover plate, and our app guides you on the rest. And when doing maintenance checks, our app puts diagnostic information at your fingertips.

You can also save valuable time with easy reporting on the smartphone app. Whether you need a maintenance report for a certain detector or a gas history for a safety audit, just select the right report on the app and send it to other parties - or store it for easy recall.

For a complete gas leak detection system, Sensepoint XCL has the perfect partner in Touchpoint Plus, a configurable, easy-to-use controller for up to sixteen channels of gas detection.

Features & Benefits

  Manage installation, commissioning and maintenance from the gas detector app on your smartphone
  Aesthetic design blends in to the environment
  Simple, robust housing with our easiest ever installation and maintenance
  Integral gassing port for hard-to-reach locations
  Compatible with Touchpoint Plus and other industry-standard controllers

Quick Specs

  mA loop or Modbus RTU output with optional relays
  Multi-colour LED status indicator
  Operating temperature -20 to 50°C, ingress protection IP65
  Choice of toxic, oxygen or flammable sensors

Ordering Information


Sensepoint XCL with Bluetooth

Charcoal, 4-20mA, without relay

SPLCF6BAXCXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BAXCXNZZ O2 0-25%,BT
SPLCC1BAXCXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BAXCXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BAXCXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BAXCXNZZ H2 1000ppm (fixed),BT
SPLCN1BAXCXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BAXCXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

Charcoal, 4-20mA, with relay

SPLCF6BARCXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BARCXNZZ O2 0-25%,BT
SPLCC1BARCXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BARCXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BARCXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BARCXNZZ H2 1000ppm (fixed),BT
SPLCN1BARCXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BARCXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

Charcoal, Modbus, without relay

SPLCF6BMXCXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BMXCXNZZ O2 0-25%,BT
SPLCC1BMXCXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BMXCXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BMXCXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BMXCXNZZ H2 1000ppm (fixed),BT
SPLCN1BMXCXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BMXCXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

Charcoal, Modbus, with relay

SPLCF6BMRCXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BMRCXNZZ O2 0-25%,BT
SPLCC1BMRCXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BMRCXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BMRCXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BMRCXNZZ H2 1000ppm (fixed),BT
SPLCN1BMRCXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BMRCXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

White, 4-20mA, without relay

SPLCF6BAXWXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BAXWXNZZ O2 0-25%,BT
SPLCC1BAXWXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BAXWXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BAXWXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BAXWXNZZ H2 1000ppm (fixed),BT
SPLCN1BAXWXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BAXWXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

White, 4-20mA, with relay

SPLCF6BARWXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BARWXNZZ O2 0-25%,BT
SPLCC1BARWXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BARWXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BARWXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BARWXNZZ H2 1000ppm (fixed),BT
SPLCN1BARWXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BARWXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

White, Modbus, without relay

SPLCF6BMXWXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BMXWXNZZ O2 0-25%,BT
SPLCC1BMXWXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BMXWXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BMXWXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BMXWXNZZ H2 1000ppm (fixed),BT
SPLCN1BMXWXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BMXWXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

White, Modbus, with relay

SPLCF6BMRWXNZZ LEL cat 0-100% (precalibrated CH4),BT
SPLCO1BMRWXNZZ O2 0-25%,BT
SPLCC1BMRWXNZZ CO 300ppm (adjustable 50-1000ppm),BT
SPLCH1BMRWXNZZ H2S(L) 50ppm (adjustable 10-50ppm),BT
SPLCH2BMRWXNZZ H2S(H) 100ppm (adjustable 50-200ppm),BT
SPLCG1BMRWXNZZ H2 1000ppm (fixed),BT
SPLCN1BMRWXNZZ NO2 20ppm (adjustable 5-50ppm),BT
SPLCA1BMRWXNZZ NH3(L) 100ppm (adjustable 50-200ppm),BT

Accessories

SPXCLCAL Sensepoint XCL Calibration/Flow Cap
SPXCLDMK Sensepoint XCL Duct Mount Kit
SPXCLRGP Sensepoint XCL Fixed Remote Gassing Port
SPXCLGLD Sensepoint XCL M20 cable glands, 10 pack

Consumables (Spare Sensors)

SPXCLZZF6SS Sensepoint XCL Replacement Sensor - Flam Catalytic
SPXCLZZO1SS Sensepoint XCL Replacement Sensor - O2
SPXCLRLC1SS Sensepoint XCL/XRL Replacement Sensor - CO
SPXCLRLH1SS Sensepoint XCL/XRL Replacement Sensor - H2S (Low and High Range)
SPXCLRLG1SS Sensepoint XCL/XRL Replacement Sensor - H2
SPXCLRLN1SS Sensepoint XCL/XRL Replacement Sensor - NO2
SPXCLRLA1SS Sensepoint XCL/XRL Replacement Sensor - NH3

Spares (Miscellaneous)

SPXCLFLT Sensepoint XCL Replacement Filter - Pack of 10 ea
SPXCLSK1 Sensepoint XCL Service Kit
SPXCLSCC Sensepoint XCL Sensor Cover - Charcoal
SPXCLSCW Sensepoint XCL Sensor Cover - White
SPXCLDCC Sensepoint XCL Decal Cover - Charcoal
SPXCLDCW Sensepoint XCL Decal Cover - White

Sensepoint XCL without Bluetooth

Charcoal, 4-20mA, without relay

SPLLF6XAXCXNZZ CH4 cat 100%
SPLLO1XAXCXNZZ O2 25%
SPLLC1XAXCXNZZ CO(L) 100ppm
SPLLC2XAXCXNZZ CO(H) 300ppm
SPLLH1XAXCXNZZ H2S(L) 50ppm
SPLLH2XAXCXNZZ H2S(H) 100ppm
SPLLG1XAXCXNZZ H2 1000ppm
SPLLN1XAXCXNZZ NO2 20ppm
SPLLA1XAXCXNZZ NH3(L) 100ppm

White, 4-20mA, without relay

SPLLF6XAXWXNZZ CH4 cat 100%
SPLLO1XAXWXNZZ O2 25%
SPLLC1XAXWXNZZ CO(L) 100ppm
SPLLC2XAXWXNZZ CO(H) 300ppm
SPLLH1XAXWXNZZ H2S(L) 50ppm
SPLLH2XAXWXNZZ H2S(H) 100ppm
SPLLG1XAXWXNZZ H2 1000ppm
SPLLN1XAXWXNZZ NO2 20ppm
SPLLA1XAXWXNZZ NH3(L) 100ppm

Accessories

SPXCLCAL Sensepoint XCL Calibration/Flow Cap
SPXCLDMK Sensepoint XCL Duct Mount Kit
SPXCLRGP Sensepoint XCL Fixed Remote Gassing Port
SPXCLGLD Sensepoint XCL M20 cable glands, 10 pack

Consumables (Spare Sensors)

SPXCLZZF6SS Sensepoint XCL Replacement Sensor - Flam Catalytic
SPXCLZZO1SS Sensepoint XCL Replacement Sensor - O2
SPXCLRLC1SS Sensepoint XCL/XRL Replacement Sensor - CO
SPXCLRLH1SS Sensepoint XCL/XRL Replacement Sensor - H2S (Low and High Range)
SPXCLRLG1SS Sensepoint XCL/XRL Replacement Sensor - H2
SPXCLRLN1SS Sensepoint XCL/XRL Replacement Sensor - NO2
SPXCLRLA1SS Sensepoint XCL/XRL Replacement Sensor - NH3

Spares (Miscellaneous)

SPXCLFLT Sensepoint XCL Replacement Filter - Pack of 10 ea
SPXCLSK1 Sensepoint XCL Service Kit
SPXCLSCC Sensepoint XCL Sensor Cover - Charcoal
SPXCLSCW Sensepoint XCL Sensor Cover - White
SPXCLDCC Sensepoint XCL Decal Cover - Charcoal
SPXCLDCW Sensepoint XCL Decal Cover - White



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
