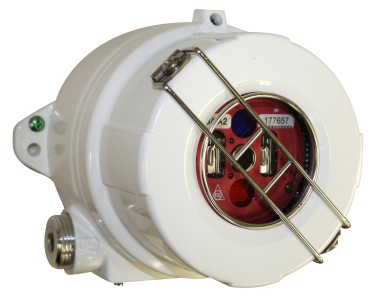

Zellweger SS4 UV and UV/IR Flame Detectors


The Fire Sentry SS4 Electro-Optical Digital Flame Detectors represent leading edge UV/IR technology.

FireSentry SS4-A

The Fire Sentry SS4-A represents the world's pre-eminent UV/IR technology for electro-optical flame detectors with tens of thousands successfully operating in a multitude of installations worldwide. This multi-spectrum detector senses radiant energy in the ultraviolet (UV), visible and Wide Band Infrared™ (IR) spectrum. The radiant energy from all types of flaming fires will alert the detector to their presence.

Fire Sentry SS4-AUV

The Fire Sentry SS4-AUV represents the leading edge technology UV optical flame detectors. This flame detector senses radiant energy in the ultraviolet (UV) spectrum. The radiant emissions of flaming fires will alert the detector to their presence.

Fire Sentry SS4-AS

The Fire Sentry SS4-AS processes UV, IR and Visible (Vis) spectral ranges from rugged solar-blind UV, quantum-effect IR and VIS sensors correspondingly. It is optimized for detection of hydrogen, ethanol, methanol and methane (natural gas) fires and like the other detectors in its family, it responds to Type A, B and C flaming fires.


SS4 Data Sheet
Fire Sentry SS4 Specifications
Fixed-Point Industrial Fire and Gas Detection Brochure
Fire and Gas Detection for the Petrochemical Industry Brochure
Fire Sentry Accessories Brochure
Fire Sentry Controllers Brochure
MODEL SS4-A/-A2 (CENELEC) Manual
SS4-AS/-AS2 For Special Applications Manual
FS2000 FIRE EARLY WARNING SYSTEM

Features

Fire Sentry SS4:

  Multi-Spectrum™: senses Ultraviolet, Visible and Wide Band IR™
  Built-In Test for optical "through the lens" testing
  False alarm immunity
  Detects hydrocarbon and non-hydrocarbon based fires
  Wide 120° field-of-view and solar-blind
  Adjustable detector sensitivity
  Microprocessor based algorithms: FirePic™, and Tri-Mode Plot™
  Wide temperature range of operation
  Compatible with standard approved fire alarm panels
  Explosion-proof housing
  Time programmable alarm verification
  FS2000™ System compatible or stand alone operation

Fire Sentry SS4-AUV:

  Senses solar-blink ultraviolet band
  Built-in test for optical "through the lens" testing
  Utilizes long-live, ruggedized UV sensors
  Detects hydrocarbon- and nonhydrocarbon-based fires
  Wide field-of-view and solar-blind
  Adjustable detector sensitivity
  Microcomputer based algorithms: FirePic™, Snapshot™ and UV Plot
  Wide temperature range of operation
  Compatible with standard approved fire alarm panels
  Explosion-proof housing
  Time programmable alarm verification

Ordering Information


SS4-AS Series

SS4-A2 Aluminum UV/IR, FM, Hydrocarbon Fires, Non Latching Alarm LED, FM, cFM, CSFM for Class I, Div.1 groups B,C and D (2) 3/4 NPT
SS4-A2-SS Stainless Steel UV/IR, FM, Hydrocarbon Fires, Non Latching Alarm LED, FM, cFM, CSFM for Class I, Div.1 groups B,C and D (2) 3/4 NPT
SS4-A2-C-E Aluminum UV/IR, ATEX, Hydrocarbon Fires, Non Latching Alarm LED, FM, cFM, ATEX, IECEx FOR Zone 1 (2) M25
SS4-A2-CSS-E Stainless Steel UV/IR, ATEX, Hydrocarbon Fires, Non Latching Alarm LED, FM, cFM, ATEX, IECEx FOR Zone 1 (2) M25
SS4-AS2 Aluminum UV/IR, FM, Hydrogen and Non-Hydrocarbon Fires, Non-latching Alarm LED, FM, cFM, CSFM for Class I, Div.1 groups B,C and D (2) 3/4 NPT
SS4-AS2-SS Stainless Steel UV/IR, FM, Hydrogen and Non-Hydrocarbon Fires, Non-latching Alarm LED, FM, cFM, CSFM for Class I, Div.1 groups B,C and D (2) 3/4 NPT
SS4-AS2-C-E Aluminum UV/IR, ATEX, Hydrogen and Non Hydrocarbon Fires, Non Latching Alarm LED, FM, cFM, CSFM for Class I, Div.1 groups B,C and D (2) M25
SS4-AS2-CSS-E Stainless Steel UV/IR, ATEX, Hydrogen and Non Hydrocarbon Fires, Non Latching Alarm LED, FM, cFM, ATEX, IECEx for Zone 1 (2) M25

Accessories SS4-AS

SM4 Stainless Steel Swivel mounting assembly for FS24X, FS20X and SS4 detectors
MA420-4 0-20 MA Module for SS4 Detectors New version (FACTORY INSTALLED) Order with Detector
SS4-FSHCOM SS4 Module HART Factory fitted, order with detector
FT-2145 UV/IR Test Lamp with universal charger (FM and ATEX approval)
2029-INTERFACE-KIT Interface Kit for SS4 Detector, with Universal charger
SH-001 Sunshield for SS2, SS4, FS20X and FS24X Detectors, 316 Stainless Steel

Spares SS4-AS

SS4-MOD-A2 Replacement Electronics Module for SS4-A2 (UV/IR) Detectors. Module only, non-latching LED
SS4-MOD-AS2 Replacement Electronics Module for SS4-AS2 (UV/IR) Detectors. Module only, non-latching LED
H200 UV Test Source Module for SS4 Detectors
LAMP-3135-0002 IR Test Lamp Bulb (FT-2145)
DT-3124-0001A UV Test Lamp Bulb (FT-2145)

SS4-AU Series

SS4-AUV2 Aluminum UV, FM, Hydrocarbon and Non-Hydrocarbon Fires, Non-latching Alarm LED, FM, cFM, CSFM for C1, D1, Groups B,C,D (2) 3/4 NPT
SS4-AUV2-C-E Aluminum UV, FM, ATEX, Hydrocarbon and Non-Hydrocarbon Fires, Non-latching Alarm LED, FM, cFM, ATEX, IECEx Zone 1 (2) M25
SS4-AUV2-CSS-E Stainless Steel UV, FM, ATEX, Hydrocarbon and Non-Hydrocarbon Fires, Non-latching Alarm LED FM, cFM, ATEX, IECEx Zone 1 (2) M25
SS4-AUV2-SS Stainless Steel UV, FM Hydrocarbon and Non-Hydrocarbon Fires, Non-latching Alarm LED, FM, cFM, CSFM for C1, D1, Groups B,C,D (2) 3/4 NPT

Accessories SS4-AU

SM4 Stainless Steel Swivel mounting assembly for FS24X, FS20X, SS4, SS2 detectors
MA420-4 0-20 MA Module for SS4 Detectors New version (Factory Installed) Order with Detector
SS4-FSHCOM SS4 Module HART Factory fitted, order with detector
FT-2145 UV/IR Test Lamp with universal charger (FM and ATEX approval)
SH-001 Sunshield for SS2, SS4, FS20X and FS24X Detectors, 316 Stainless Steel

Spares SS4-AU

SS4-MOD-AUV2 Replacement Electronics Module for SS4-AUV2 (UV) Detectors. Module only, non-latching LED
H200 UV Test Source Module for SS4 Detectors
LAMP-3135-0002 IR Test Lamp Bulb for FT-2145/2045
DT-3124-0001A UV Test Lamp Bulb for FT-2145/2045

Universal Accessories

DASA1-P Airshield to prevent dust build up with fitting for 1/4" tubing. SS4, FS20X, FS24X
DASA6-N Airshield to prevent dust build up with fitting for 6mm tubing. SS4, FS20X, FS24X
94000-C-1001 Universal 2" pipe Mounting Plate. For Fire Sentry SS4, FS20X and FS24X (use 90083-A-8034 Kit)
90083-C-8034 2" U Bolts For use with Mounting Plate
90086-A-2008 2" Pipe Mounting Sunshade Kit for SS4 / FS20X / FS24X in 316SST painted white
FVR-01 Field of View Restrictor



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
