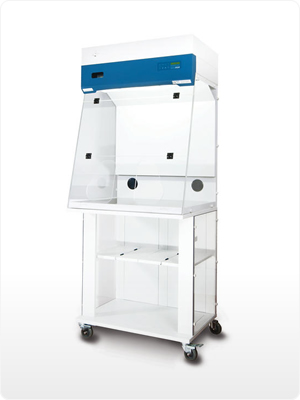

ESCO - Ascent Opti Ductless Fume Hoods

Probably the most technologically advanced low-cost ductless fume cabinet in the world, the Esco Ascent Opti Ductless Fume Cabinet can be enjoyed at an economical cost and is equipped with features previously found only on high-end ductless fume cabinets.

Key Benefits

  Certified to AFNOR NF X 15-203, BS7258, BS7989.
  3 years limited warranty
  Low Cost
  Easy to install
  Oval shaped arm ports provide good working flexibility and high containment levels
  State of the art airflow monitor and alarm system.

Other Features

  Grade 304 stainless steel work surface that will never rust, chip, or generate particles.
  A fully configurable Sentinel microprocessor control with audible and visual alarms for unsafe conditions.
  Built-in 5000k warm white fluorescent lighting.
  Removable work surface on a removable drain-pan for easy cleaning.
  Small Filter ID window to easily identify the type of filter being used.
  Optional transparent back , ideal for classroom demonstrations.
  Optional mobile cart for convenient relocation. Cart is equipped with shelves for storage purposes.
  Over 7 different Nanocarb carbon filter types, choose from: volatile organic compound, acid, mercury, sulphur, halogen, aldehyde or ammonia.
  Isocide antimicrobial coated structure eliminates 99.9% of bacterial presence on external surfaces within 24 hours.
  Extremely low energy consumption.
  Low noise levels (55 dBA).
  2 provisions for electrical wiring at the back to easily connect any apparatus to a power supply from inside the main chamber.
  Models include the SPB-2A1, SPB-2A2, SPB-2A3, SPD-3A1, SPD-3A2, SPD-3A3, SPD-3B1, SPD-3B2, SPD-3B3, SPD-4A1, SPD-4A2, SPD-4A3, SPD-4B1, SPD-4B2 and the SPD-4B3.

Esco Ascent Ductless Fume Hoods provide protection to both laboratory personnel and the environment from toxic fumes and are quickly becoming a viable alternative to conventional fume hoods.

Unlike conventional fume hoods, these hoods filter out chemical fumes and recycle air directly back to the laboratory, providing energy savings, personnel and environmental protection, convenience as you do not have to deal with complicated ducting systems, and mobility, since ductless hoods are independent systems which do not require connection to extraction systems.

Esco ductless fume hoods are independently tested by INVENT-UK for the ability to filter contaminated air with efficiency and retention capacity as required by the British Standard BS 7989 and French Standard AFNOR NF X 15-211. Fume containment and airflow uniformity meet the requirements of ASHRAE 110-1995, BS 7258, EN 14175-3 and AFNOR NF X 15-203. The Esco combination of effective containment and safe carbon filtration opens new, cost effective applications for fume hood technology in laboratories of the 21st century.


Filter Chemical Guide

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
