Furse Cable & Wire System

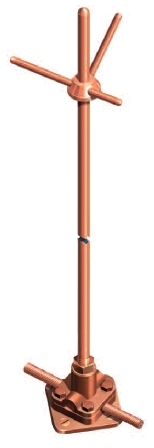

Air rod

Manufactured from high conductivity hard drawn copper, with rolled threads. Supplied complete with locknut.

"Field Trials in the United States, carried out over many years research have confirmed that blunt air rods are struck by lightning in preference to taper pointed air rods."

"Lightning rod improvement studies" by C B Moore, W Rison, J Mathis, G Aulich. Journal of Applied Meteorology, May 2000. Note: during high winds and extreme weather conditions air rods over 1000mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Part numbers in this range include RA215, RA225, RA230, RA240 RA250 and RA600.


Datasheet

Flat saddle

Manufactured from a high quality copper alloy. Simple to install, providing an effective connection between air rod and stranded air termination conductors.

Part numbers in this range include SD155, SD160 and SD165.


Datasheet

Rod brackets

Manufactured from high quality copper alloy. Simple to install, providing an effective means of mounting an air rod on a vertical surface e.g. a chimney stack. Use in conjunction with the rod to cable coupling.

Part numbers in this range include BR105.


Datasheet

Rod to cable coupling

Manufactured from high quality copper alloy. Provides an effective connection between air rod and stranded air termination conductor. Use in conjunction with rod brackets.

Part numbers in this range include CG705 and CG710.


Datasheet

One hole cable clip

Manufactured from pure copper, these simple pressed clips are available to suit a range of stranded copper conductors.

Part numbers in this range include CP910, CP915 and CP920.


Datasheet

Heavy duty cast cable saddle

Manufactured from high quality copper alloy. Simple to install, providing an effective fixing for stranded copper cables.

Part numbers in this range include CP810, CP815 and CP835.


Datasheet

Test clamp

Manufactured from high quality copper alloy. Simple to install, providing an effective low resistance overlap connection between stranded copper cables.

Part numbers in this range include CR855, CR860 and CR865.


Datasheet

Square conductor clamp

Manufactured from high quality copper alloy. Simple to install, providing an effective low resistance connection between overlapping stranded conductors allowing cross, tee, through and right angle joints to be formed.

Part numbers in this range include CR810, CR815 and CR820.


Datasheet

Cable to tape square clamp

Manufactured from high quality copper alloy. Simple to install, providing an effective low resistance connection between conductor tape and stranded copper conductor.

Part numbers in this range include CT125, CT130 and CT135.


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
