Furse ESP CCTV Series


Combined Category D, C, B tested protector (to BS EN 61643-21) suitable for coaxial CCTV cables with BNC connectors (ESP CCTV/B) or twisted pair CCTV lines (ESP CCTV/T) on systems with either an earthed or an isolated screen. Not suitable for use on broadcast, satellite or cable TV systems. For use at boundaries up to LPZ 0A to protect against flashover (typically the service entrance location) through to LPZ 3 to protect sensitive electronic equipment.

Features and Benefits

  Very low let-through voltage (enhanced protection to BS EN 62305) between all lines - Full Mode protection
  Full mode design capable of handling partial lightning currents as well as allowing continual operation of protected equipment
  Repeated protection in lightning intense environments
  100MHz bandwidth prevents the degradation of high frequency signals
  Low in-line resistance to minimise unnecessary reductions in signal strength and maximise signalling distance
  Very low reflection coefficient/VSWR ensure that the protector doesn't disrupt system operations
  Suitable for either earthed or isolated screen systems
  Sturdy, conductive ABS housing for 2 way shielding - preventing emissions & providing signals with immunity from external interference
  Convenient holes for flat mounting on base or side
  Built-in DIN rail foot for easy installation on top hat DIN rail
  ESP CCTV/T has colour coded terminals for a quick and easy installation check - grey for the dirty (line) end and green for the clean end
  Substantial earth stud to enable effective earthing
  Integral earthing plate for enhanced connection to earth via CME kit
  ESP CCTV/B has Network Rail Approval PA05/02510. NRS PADS reference 086/023410


Data Sheet



Application

Use these protectors on the video cable to outdoor CCTV cameras and central control and monitoring equipment.

Accessories

When CCTV protectors are installed in groups, or alongside protectors for signal and mains power lines, these can be simultaneously mounted and earthed on a CME kit.

A CME 4 will accommodate the video, telemetry and power protectors to a camera.

If protectors cannot be incorporated within an existing panel or enclosure, WBX enclosures are available for up to 4, 8, 16 or 32 protectors and their associated CME kit.

The WBX 4/GS is a secure IP66 enclosure suitable for a CME 4 and associated protectors.

Models

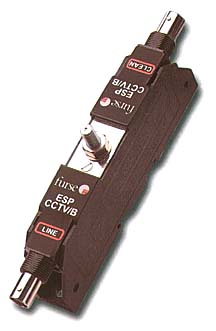

  ESP CCTV/B
  ESP CCTV/B-15V
  ESP CCTV/B-30V
  ESP CCTV/B-50V
  ESP CCTV/T
  ESP CCTV/T-15V
  ESP CCTV/T-30V
  ESP CCTV/T-50V

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
