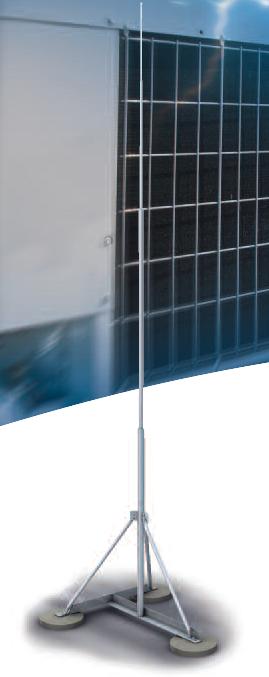

Furse Free Standing Interception Masts


The new Furse interception masts are designed to provide a fast and easy solution to protecting roof top installations, like air conditioning units or solar panels, from a direct lightning strike, all in accordance with IEC/BS EN 62305:2006.

Offering a choice of copper, aluminium or stainless steel with aluminium tip, these free-standing interception masts use concrete blocks to secure them to the roof surface, minimising the time and effort needed by the installer.

Once the required mast height has been decided, a Wind Zone map and wind speed tables can be used to choose the type of frame and its size, plus the number of concrete blocks needed to secure the installation.

Furse free standing interception masts are easily constructed from a small range of components including interception pole, support frame and concrete bases to provide a highly versatile and effective lightning protection solution.

The straightforward design of this multi-component system enables rapid installation of interception masts to protect rooftop and exposed equipment from lightning damage.

Features and Benefits

  Protects rooftop mounted equipment from direct lightning strikes
  Complies to with IEC/BS EN 62305 standard
  Lightweight construction
  Corrosion resistant
  Quick and easy to assemble
  Available in a range of heights from 3 m to 10 m
  Range of frames and concrete weights for different wind zones
  Large protection zones
  Modular, versatile and robust

Product Options

Circular base interception mast

  Non wind zone specific mast
  For protection heights 0.5 m to 3 m
  1 piece interception pole
  Circular concrete base

Square base interception mast

  For protection heights 3 m to 4 m
  2 piece interception pole
  Square support frame
  4 square concrete bases (or 8 doublestacked for higher wind speeds)

Tripod base interception mast

  For protective heights 4.5 m to 5.5 m
  2 piece interception pole
  Tripod support frame
  3 circular concrete bases


Tripod base interception mast

  For protective heights 6 m to 8 m
  3 piece interception pole
  Tripod support frame
  6 circular concrete bases

H-Frame base interception mast

  For protective heights 8 m to 10 m
  3 piece interception pole
  'H' shaped support frame
  10 circular concrete base


Data Sheet

Part numbers in this range include 912000-FU, 912001-FU, 912002-FU, 912003-FU, 912004-FU, 912005-FU, 912006-FU, 912007-FU, 912008-FU, 912009-FU, 912010-FU, 912011-FU, 912012-FU, 499000-FU, 499005-FU, 499006-FU, 499007-FU, 499 100, 103 101, 103 103, 103 110 and 103 118.

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
