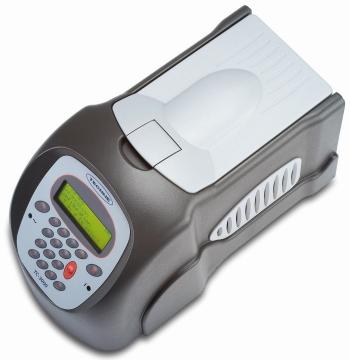

Techne TC-3000 Thermal Cycler


Please note - this product is now obsolete. Please click here for the current models.

  Heated lid: The selectable temperature range heated lid is designed to reduce the risk of sample evaporation, and it can be enabled or disabled.

  Unparalleled block uniformity, ensuring optimal reproducibility.

  Small, low cost: The TC-3000 is one of the smallest, lowest cost unit on the market. It is available with 25 x 0.2ml or 20 x 0.5 ml microtube interchangeable block formats.

  PC control & networking: The TC-3000 can be networked together with other Techne cyclers allowing up to 32 cyclers to be connected to one computer.

  Password protection: Protect your program against unwanted modifications.

  Portable dual voltage: This compact unit is not only light, but has a variable voltage selector.

  Full 4-year warranty.

Fastest heating rate

Utilising the latest Peltier technology The TC-3000 can go up to 3.6 degrees/sec heating rate and 2.0 degrees/sec cooling rate.

Space saving designed small footprint

One of the worlds best selling thermal cyclers. At only 561 cm2, the TC-3000 is even economical on space.

Proven reliability, high performance

Experience in thermal cycler manufacturing since 1987, ensures that the TC-3000 provides both guaranteed performance and quality results, everytime.

Fast-track programming

With modern, intuitive programming and ready-to-go templates, creating even the most complicated protocols is simple.

Ordering Information

FTC3/02 - Thermal cycler TC-3000 for 25 x 0.2ml micro tubes
FTC3/05 - Thermal cycler TC-3000 for 20 x 0.5ml microcentrifuge tubes
FTC31B02 - Block for 25 x 0.2ml tubes
FTC31B05 - Block for 20 x 0.5ml microcentrifuge tubes
FTUB02TW - Micro tubes 0.2ml Pack 1000
FTUB05TW - Micro centrifuge tubes thin wall 0.5ml Pack 1000

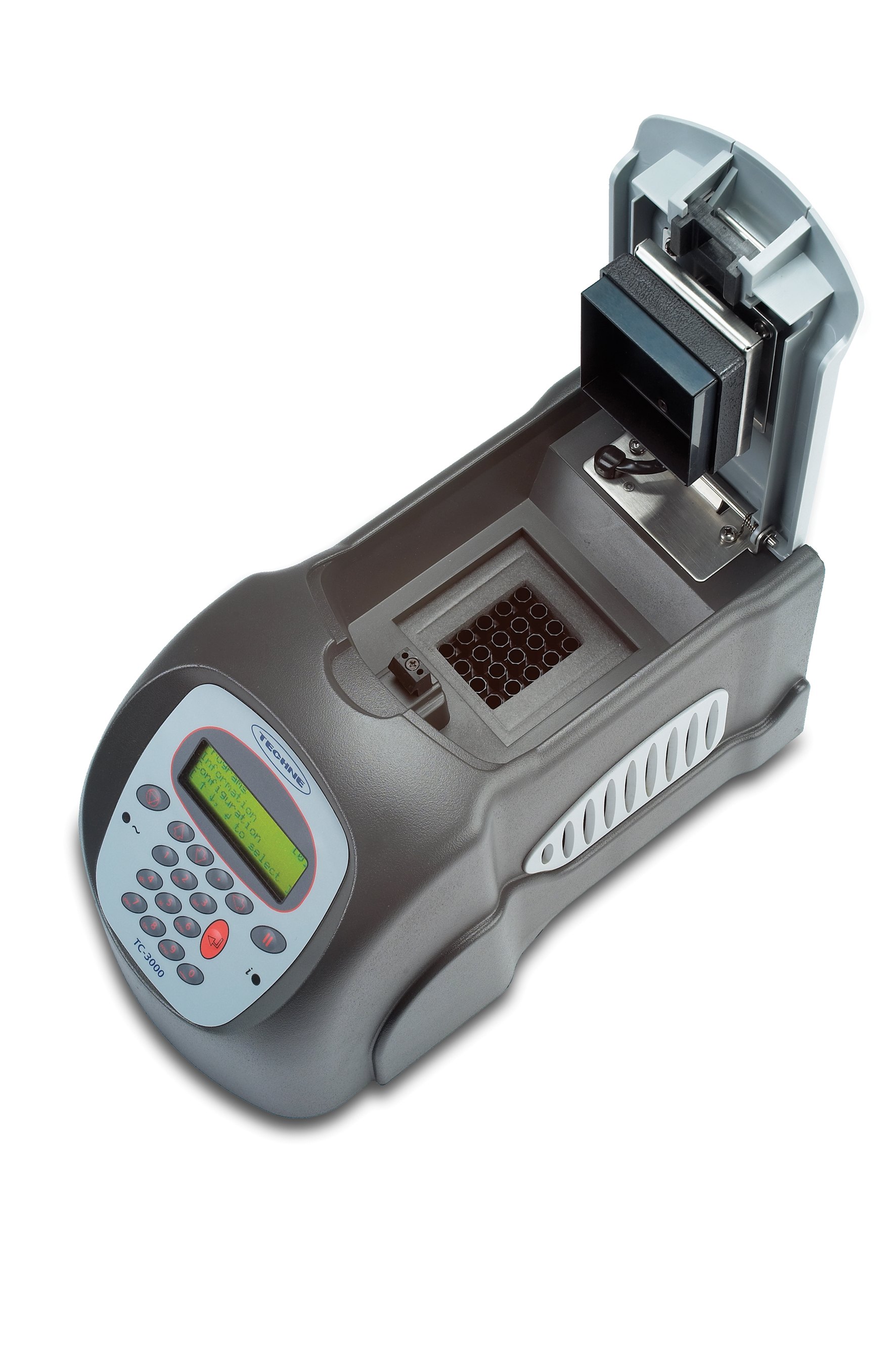

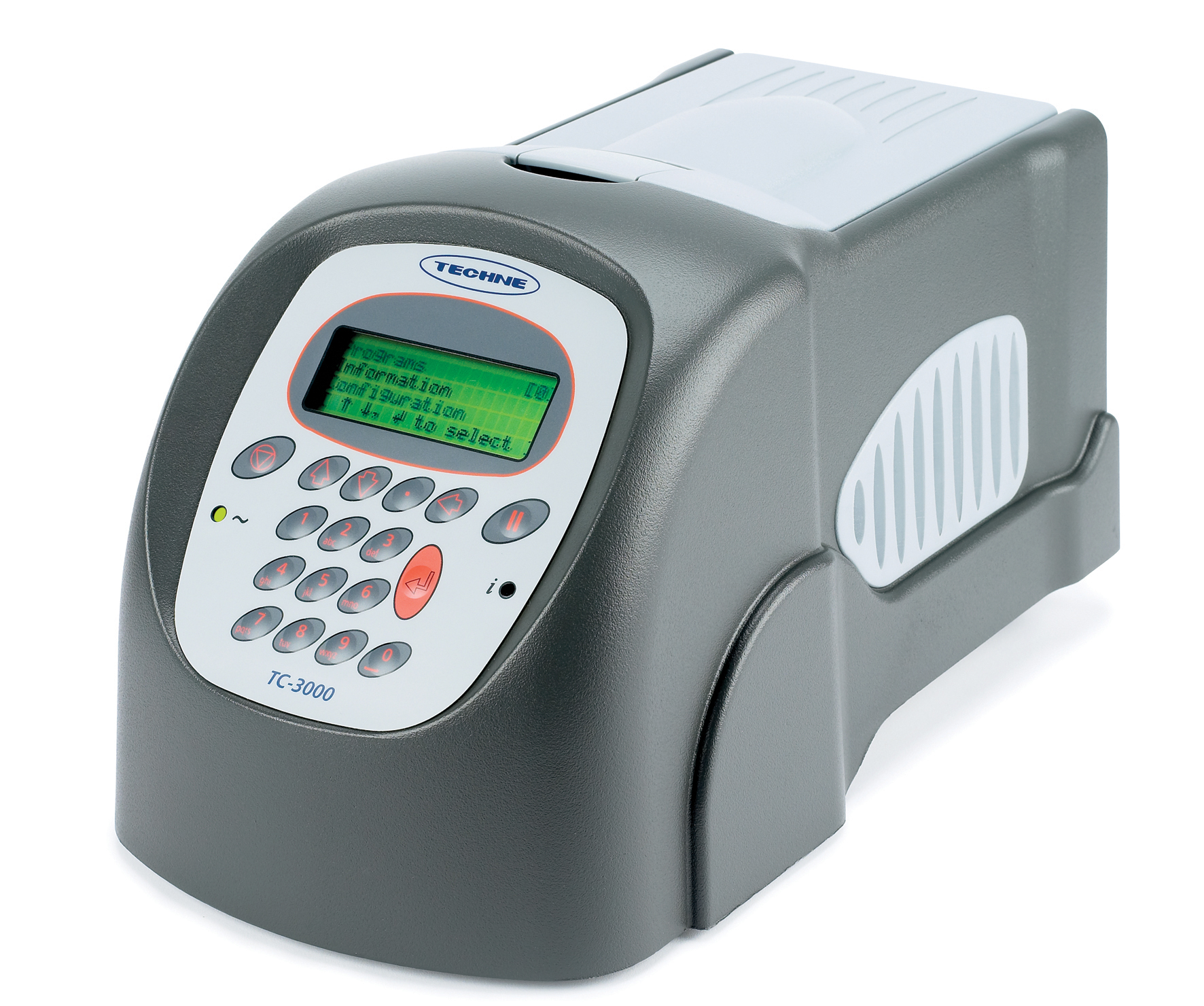

For larger views, please click on the small photos above.

Technical Specifications

Temperature range - 4 degrees to degrees
Number of programs - 99 (3 segment programs)*
Alnumeric Key Pad - Yes
Program naming capability - Alphanumeric
Program password Protection - Yes
Display - Large 4 line Alphanumeric
Maximum number of segments/loop - 80 *
Maximum number of repeat cycles per program - 99*
End of program alarm - Yes (can be disabled)
Pause facility - Yes
Incremental/Decremental timing & Temperature - Yes
Auto Restart on power failure - Yes
Run end time calculation - Yes
Serial port RS 232 socket & PC connection - Yes
Voltage selection switch (230 V/120V) - Yes
Dimensions LxWxH - 305 x 185 x 190mm
Footprint - 561 cm2
Net Weight - 5kg

*dependent on complexity of the programs


Data Sheet
Manual

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
