Endecotts - Perforated Plate Sieves

Home › Laboratory › Sieving and Weighing › Endecotts - Perforated Plate Sieves

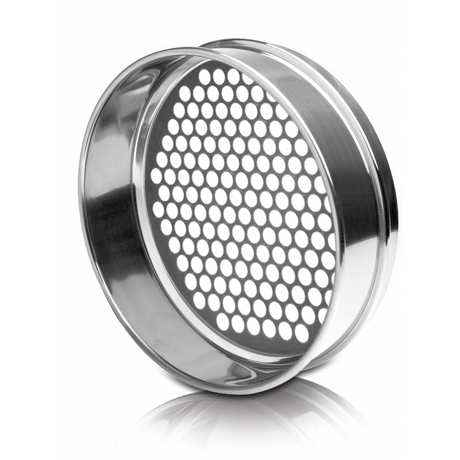

Endecotts manufacture a wide range of perforated plate sieves for the many industries that require them. These are available in diameter sizes of 200, 300, 315, 350, 400 and 450mm. Aperture sizes range from 125mm to 4mm in square hole and 125mm to 1mm in round hole.

Perforated plate sieves can be supplied in frame materials of brass, stainless steel or plated steel, and are all manufactured to the highest engineering standards to ensure quality and accurcay. Woven Sieves and perforated plate sieves are available to every national and international standard. Other materials and sizes can be produced to order.

Air-Jet Sieves - These sieves are specifically designed for use with air jet systems. They are available in 200mm diameter brass or stainless steel frames and an extensive range of aperture sizes.

Grain Sieves - As used by Government Intervention Boards and similar organisations within the EC for testing grains and cereals. Available in 200mm diameter brass frames with with plated mild steel slotted plate and a range of aperture sizes as specified in ISO 5223.

Lids and Receivers - Lids, receiving pans and intermediate receiving pans are available in brass, stainless steel or plated steel with the following diameters: 38, 100, 150, 200, 250, 300, 400 and 450mm as well as 3, 8, 12 and 18 inches. Half height receivers are also available.

Pocket Sieve Set - High quality pocket sieves are very useful for testing small samples either in the laboratory or on site. The brass sieve has a range of of interchangeable mesh discs of different aperture sizes. It is supplied complete with sieve brush and belt pouch.


Wire Mesh Series	Wire Mesh Series	Perforated Plate Series
ISO 3310-1:2000 BS410-1-2000	ISO 3310-1:2000 BS410-1-2000	ISO 3310-2:2000 BS410-2-2000
Nominal Aperture Sizes	Nominal Aperture Sizes	Nominal Aperture Sizes
mm	microns	Round & Square Holes (mm)
125.00	900	125.00
112.00	850	112.00
106.00	800	106.00
100.00	710	100.00
90.00	630	90.00
80.00	600	80.00
75.00	560	75.00
71.00	500	71.00
63.00	450	63.00
56.00	425	56.00
53.00	400	53.00
50.00	355	50.00
45.00	315	45.00
40.00	300	40.00
37.50	280	37.50
35.50	250	35.50
31.50	224	31.50
28.00	212	28.00
26.50	200	26.50
25.00	180	25.00
22.40	160	22.40
20.00	150	20.00
19.00	140	19.00
18.00	125	18.00
16.00	112	16.00
14.00	106	14.00
13.20	100	13.20
12.50	90	12.50
11.20	80	11.20
10.00	75	10.00
9.50	71	9.50
9.0	63	9.00
8.0	56	8.00
7.10	53	7.10
6.70	50	6.70
6.30	45	6.30
5.60	40	5.60
5.00	38	5.00
4.75	36	4.75
4.50	32	4.50
4.00	25	4.0
3.55	20	Round Hole Only
3.35		3.55
3.15		3.35
2.80		3.15
2.50		2.80
2.36		2.50
2.24		2.36
2.00		2.24
1.80		2.00
1.70		1.80
1.60		1.70
1.40		1.60
1.25		1.40
1.18		1.25
1.12		1.18
1.00		1.12
		1.00


Wire Mesh Series
Designation
Standard	Alternative
mm
125.00	5.00 in
106.00	4.24 in
100.00	4 in
90.00	3½ in
75.00	3 in
63.00	2½ in
53.00	2.12 in
50.00	2 in
45.00	1¾ in
37.50	1½ in
31.50	1¼ in
26.50	1.06 in
25.00	1 in
22.40	7/8 in
19.00	¾ in
16.00	5/8 in
13.20	0.530 in
12.50	½ in
11.20	7/16 in
9.50	3/8 in
8.00	5/16 in
6.70	0.265 in
6.30	¼ in
5.60	No. 3½
4.75	No. 4
4.00	No. 5
3.35	No. 6
2.80	No. 7
2.36	No. 8
2.00	No. 10
1.70	No. 12
1.40	No. 14
1.18	No. 16
1.00	No. 18
microns
850	No. 20
710	No. 25
600	No. 30
500	No. 35
425	No. 40
355	No. 45
300	No. 50
250	No. 60
212	No. 70
180	No. 80
150	No. 100
125	No. 120
106	No. 140
90	No. 170
75	No. 200
63	No. 230
53	No. 270
45	No. 325
38	No. 400
32	No. 450
25	No. 500
20	No. 635

Sieve Diameters and Frame Materials
Diameter	Height	Depth to Mesh or Plate	Frame Material
38mm	Full	19mm	Br or SS
100mm	Full	40mm	Br or SS
100mm	Half	20mm	Br or SS
150mm	Full	38mm	SS
200mm	Full	50mm	Br or SS
200mm	Half	25mm	Br or SS
250mm	Full	60mm	SS
300mm	Full	75mm	Br, SS or PS
300mm	Half	40mm	Br, SS or PS
315mm	Full	75mm	SS
350mm	Full	60mm	Br or SS
400mm	Full	65mm	Br, SS or PS
450mm	Full	100mm	SS or PS

Sieve Diameters and Frame Materials
Diameter	Height	Depth to Mesh or Plate	Frame Material
3 in	Full	1¼ in	Br or SS
8 in	Full	2 in	Br or SS
8 in	Half	1 in	Br or SS
12 in	Full	3 in	Br, SS or PS
18 in	Full	3½ in	SS or PS

Br - Brass SS - Stainless Steel PS - Plated Steel (Other materials and sizes available on request)

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
