    Structural lightning protection design considerations

    Air terminals and fixings

    		 furse

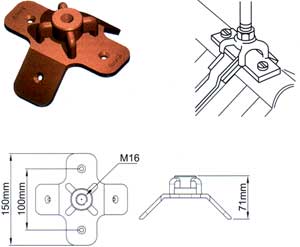

    Ridge Saddle

    Rod Diameter
    Thread Diameter
    Maximum conductor width
    Material
    Weight each
    Part no.
    15mm
    16mm
    31mm
    Copper
    1.07kg
    SD115

    Recommended fixing - countersunk woodscrew 1 1/2 " x no.10 and wall plug. For supporting lightning conductor air rods on ridges.

    ridge saddle

    Strike pad



    Description
    Material
    Weight each
    Part no.
    Strike pad
    Copper
    0.41kg
    PL010
    Strike pad
    Aluminium
    0.13kg
    PL005

    Description
    Weight each
    Part no.
    copper stem for use with PL010
    0.07kg
    SM010

    This product is supplied with a set screw to enable the lightning conductors to be attached to the strike pad.



    strike pad

    pdf
