Gemu Diaphragm Valves

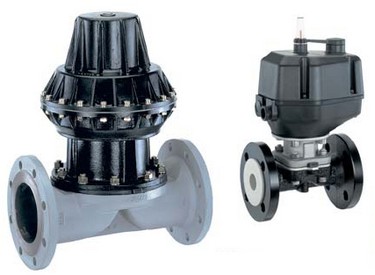

Diaphragm / Full bore diaphragm valves, metal

  Nominal size: DN 4 - DN 300
  Operating pressure: 0 - 10 bar (up to PN 16)
  Max. operating temp.: -10 to 150°C
  Body materials: Cast iron, SG iron, cast steel, brass, stainless steel, lined with hard or soft rubber, PP, PFA, PVDF, ECTFE etc.
  Body configuration: Straight through body (2/2-way valve),T-valve body (3/2-way valve), multi-port valves (individual)
  Operator: Manual, pneumatic, motorized

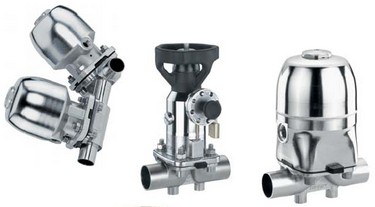

Diaphragm valves for Pharma, Food and Biotech

  Nominal size: DN 4 - DN 150
  Operating pressure: 0 - 10 bar (up to PN 16)
  Max. operating temp.: -10 to 150°C
  Body materials: Stainless steel (investment casting, forged body, block material), special alloys
  Body configuration: Straight through body (2/2-way valve), T-valve body (3/2-way valve), tank bottom valve (B600), valve confi gurations (GMP-SAP, W600), multi-port valve (M600)
  Operator: Manual, pneumatic, motorized

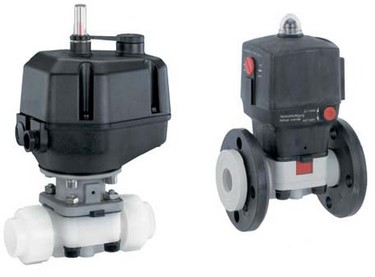

Diaphragm valves, plastic

  Nominal size: DN 10 - DN 100
  Operating pressure: 0 - 10 bar (up to PN 10)
  Max. operating temp.: -10 to 90°C
  Body materials: PVC-U, ABS, PP, PVDF, PFA, Inliner PP-H-Outliner PP reinforced
  Body configuration: Straight through body (2/2-way valve), T-valve body (3/2-way valve), multi-port valves from PVC, PP and PVDF on request
  Operator: Manual, pneumatic, motorized

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
