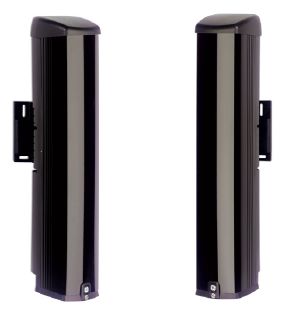

HomeSecurity › UTC Aritech SB4200-N AIR Four-Beam Detector (120-200m, depending on visibility)


UTC Aritech SB4200-N AIR Four-Beam Detector (120-200m, depending on visibility)



The new UTC SB active infrared beams' series includes two-beam and four-beam detectors, which generate an alarm when 1 or 2 beams are interrupted, ignoring birds, small animals, dead leaves, etc.

They consist of two identical detector modules equipped with detector cells integrating both transmission and reception functions. These modules are installed facing each other over the distance to be protected providing a non-physical invisible detection zone.

Detectors are based on a system of pulsed infrared beams, and operate on four user-selectable frequencies (channels), which allow avoiding any risk of interference between detectors.

Thanks to an integrated alignment tool, which provide visual and audible signal, beams are much quicker and easier to align.

Heater is also integrated on the beams.

UTC Aritech SB4200-N AIR Four-Beam Detector (120-200m, depending on visibility)

  4 active infrared (AIR) beams
  Outdoor range 120-200 m (depending on visibility)
  4 selectable channels
  On board regulated heater
  Disqualification
  Integrated alignment tool (visual/audio)
  Receiver and Transceiver in one module
  Modular pillar for 180° & 360° view
  Very strong pillars up to 3 m


Datasheet
Aritech Brochure

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
