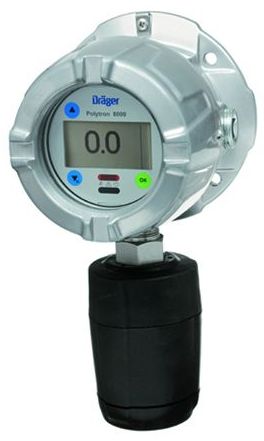

Drager Polytron 8000


The microprocessor-based transmitter can be equipped with various electrochemical DragerSensors. This way, you can easily detect oxygen and various toxic gases in the ambient air. In addition, the Polytron 8000 can also be integrated into your digital fieldbus system, thus providing additional diagnostic functions.

SIMPLE INSTRUMENT MANAGEMENT THANKS TO DIGITAL COMMUNICATION

With its HART ability, the Drager Polytron 8000 allows remote access using the Drager PolySoft software for the quick and convenient evaluation of the instrument status. Integration in existing management systems (e.g. PactWare) is also possible using DTM. In addition, fieldbus systems such as Foundation Fieldbus or Profibus are supported by corresponding interfaces.

PROVEN - AND STILL GETTING BETTER: DR�GER MEASUREMENT TECHNOLOGY

Drager has been developing and manufacturing sensors and gas detectors for industrial use for more than 40 years. And with each new instrument generation, we drive our measurement technology a bit further. With the Polytron 8000, you will definitely benefit from this experience and power of innovation:

  durable sensors
  short response times
  high sensitivity
  high accuracy
  low sensitivity to other gases or changing ambient conditions

OPTIONAL: TWO MOUNTING SETS FOR EASY FLANGE-MOUNTING

The housing has four mounting holes. Two different mounting sets are available for installing the Polytron 8000: a duct-mount and a pipe-mount set. This means that the transmitter can be easily installed anywhere - e.g., on a smooth wall, a pipe or an exhaust duct.

OPTIONAL: THREE RELAYS FOR CONTROLLING EXTERNAL EQUIPMENT

On request, the Drager Polytron 8000 can be equipped with three integrated relays. This enables you to use it as an independent gas detection system with two arbitrarily adjustable concentration alarms and one fault alarm. Audio alarms, signal lights, or similar devices can, thus, be controlled locally - without an additional cable between the transmitter and a central controller. The sensor signal can be evaluated using the 4 to 20 mA signal.



Get a Quote

INTELLIGENT SENSORS

The Drager Polytron 8000 can detect over 100 different gases. DragerSensors are specifically designed for the demands of 24 hours a day, 365 days per year operation. The large DragerSensor size gives them their renowned long life and superior measurement performance. The integrated sensor memory contains all relevant sensor data. This also allows the Polytron 8000 to accept pre-calibrated sensors, the Drager Polytron 8000 is a virtually maintenancefree transmitter.

FURTHER ADVANTAGES:

  Easy and cost-effective: one-man calibration
  Quick and easy wiring
  Available as flameproof or increased safety version
  Aluminium or 316 L stainless steel housing for the most extreme industrial conditions
  Extremely user-friendly software thanks to a minimum number of menu items
  Backlit display: easy to read, even in the dark and without a flash light
  Traffic light status indicator (green = no danger, yellow = error, flashing red = gas alarm)
  Intelligent sensors for predictive maintenance
  Freely adjustable measuring ranges (within permitted ranges)
  Matrix display allows the flexible setting of measuring ranges and units
  SIL 2 certified by the German T�V S�d
