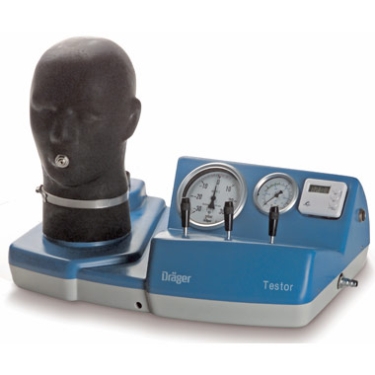

Drager Testor 2100

Because this rugged tabletop test device requires little space, it can be integrated smoothly into your workshop, and is also simple to operate.

Test capabilities:

  Full face masks
  Lung demand valves
  Pressure reducer (medium pressure function)
  Compressed air breathing apparatus
  Chemical protection suits

Comfortable handling - An intuitive control panel with low-pressure and medium-pressure manometer as well as joy-stick operation (for inflating and deflating the test head; generating positive and negative pressure) makes the testing procedure comfortable and straightforward.

The Testor 2100 is supplied with compressed air through a plug nipple, which is attached on the right side. The inflatable and detachable test head is used for testing full face masks. A round thread connection has been integrated for testing chemical protection suits. A plug-in coupling on the left side of the test device supplies the lung demand valve or the nozzle that inflates the chemical protection suits. An electronic timer with an audible signal indicates when the test has been completed.

The Drager Testor 2100 is suitable for leakage tests under vfdb guideline 0804.

Datasheet

Drager Testor 3100

Besides offering the same functions as the Drager Testor 2100, the Drager Testor 3100 is a PC-combined test device that can also carry out high-pressure tests.

Test capabilities:

  Full face masks
  Lung demand valves
  Pressure reducer
  Compressed air breathing apparatus
  Chemical protection suits

The all-purpose device for static tests The connections for PC, power supply, and high pressure sensor are located on the back side of the Testor 3100.

PC-controlled testing - The Testor 3100 offers all advantages that come with electronic test operation and data processing. The user software included with delivery controls all test processes. All the results of testing are automatically compared with the specified device parameters and are consistently documented fully in a test record. Moreover, the software provides the possibility to view the history of all performed tests in the past.

The Drager Testor 3100 is suitable for leakage tests under vfdb guideline 0804.

Drager Testor 2100 Consisting of: basic device, inflatable test head, instructions - R53400

Drager Testor 3100 Consisting of: basic device, inflatable test head, instructions, Adaptor II software, integrated electronics, external high-pressure sensor, connecting cable for PC, USB cable for power supply - AG02660

Upgrade kit Drager Testor 2100 to Drager Testor 3100 - AG02650 (Only possible if the Drager Trestor 2100 was purchased after March 2005)
