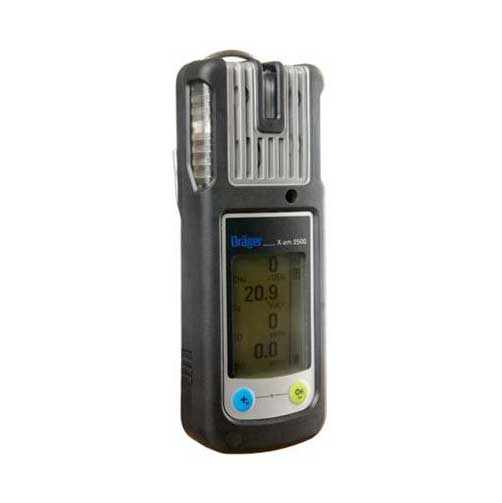

Drager X-am 2500
The Drager X-am 2500 was especially developed for use as
personal protection. The 1 to 4 gas detector reliably detects
combustible gases and vapours, as well as O2, CO, NO2, SO2
and H2S. Reliable and fully mature measuring technology,
durable sensors and easy handling guarantee a high degree
of safety with extremely low operating costs.
DURABLE ELECTROCHEMICAL
SENSORS -
Fully developed, high performance Drager
sensors in an extra small format for CO,
H2S, O2, SO2 and NO2 gases enable safe
use in industry, mining and in refineries.
The impressive hydrogen sulphide sensor
has a high resolution, so it can reliably
measure even very low workplace limits.
The non-consumptive and lead-free sensor
for oxygen is characterized by an especially
long service life of more than 5 years. Our
CO and H2S sensors also have this long
service life expectation, so they contribute
to especially low operating costs.
POISON RESISTANT EX SENSOR -
The innovative, catalytic Ex sensor is impressive
due to its high resistance to silicone
and hydrogen sulphide. Together with the
high degree of drift stability, this resistance
enables an extraordinarily long service life of
more than 4 years. Its high sensitivity with
regard to flammable gases and vapours is
confirmed by technical approval for measuring
according to IEC/EN 60079-29-1 from
methane to nonane. This approval also
demonstrates the suitability of this instrument
for use in refineries and in the chemical
industry as well.
MAXIMUM SAFETY -
The Drager X-am 2500 has Ex approval for
zone 0, so it is clearly designed for very high
user safety in areas subject to explosion
hazard. The functional design ensures that
gas can enter from above and from the side
- even if the instrument is inside a pocket or
if the front gas entry is accidentally covered.
MAINTENANCE: FAST, EASY,
INEXPENSIVE -
From functional test to complete documentation,
users have access to practical
solutions that provide safety for implementation
at any time. The Drager Bump Test
Station, which does not require a local
power source, and the automatic Drager
X-dock testing and calibration station for
comprehensive equipment management
are ideal system additions that save time
and effort. Together with the Drager
X-dock, the high quality Drager sensors
enable quick bump tests of 8 to 15 seconds1)
with very low gas consumption. This significantly
reduces your equipment operating
costs.
DIFFUSION OR PUMP -
For clearance measurements for tanks and
shafts or when searching for leaks, an
optional external pump with a hose up to
30 m long is the optimum solution. When
the measuring instrument is inserted, the
pump function starts automatically. The
switch from diffusion to pump operation
can be handled quickly and easily without
tools or screws.
|
|

ERGONOMIC AND ROBUST -
Thanks to its low weight and ergonomic
design, the Drager X-am 2500 offers a high
degree of wearing comfort. The practical
two button control panel and easy menu
navigation allow the instrument to be used
intuitively, despite its comprehensive
functionality. The integrated protective
rubber coating and sensors that are not
sensitive to shock provide additional safety
in case of impacts or vibrations. Moreover,
the Drager X-am 2500 is not sensitive
to electromagnetic radiation, e.g. from
wireless devices. The Drager X-am 2500
is water and dust resistant in accordance
with protection class IP 67, so full functionality
is guaranteed even if it falls into
the water.
RELIABLE POWER SUPPLY -
The Drager X-am 2500 can operate with
either alkaline batteries or with rechargeable
NiMH batteries. This enables a reliable
power supply for more than 12 hours,
and with the high capacity battery pack
more than 13 hours. Depending on the
requirements, the batteries can be charged
either in the workshop or in a vehicle.
Operating time without Ex sensor is typically
more than 250 hours.

Data Sheet
|
Ordering Information
Drager X-am 2500 Kits
X-am 2500 Kit Single Gas EX 3360229
X-am 2500 Kit Dual gas Ex/O2 3360228
X-am 2500 Kit Three gas Ex/O2/H2S 3360226
X-am 2500 kit Three gas Ex/O2/CO 3360227
X-am 2500 kit Four gas Ex/O2/H2S/CO 3359309
Drager X-am 2500
X-am 2500 Ex, O2, CO, H2S-LC 8323918
X-am 2500 Ex, O2, CO 8323916
X-am 2500 Ex, O2, H2S-LC 8323914
X-am 2500 Ex, O2 8323912
X-am 2500 Ex 8323910
|

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
