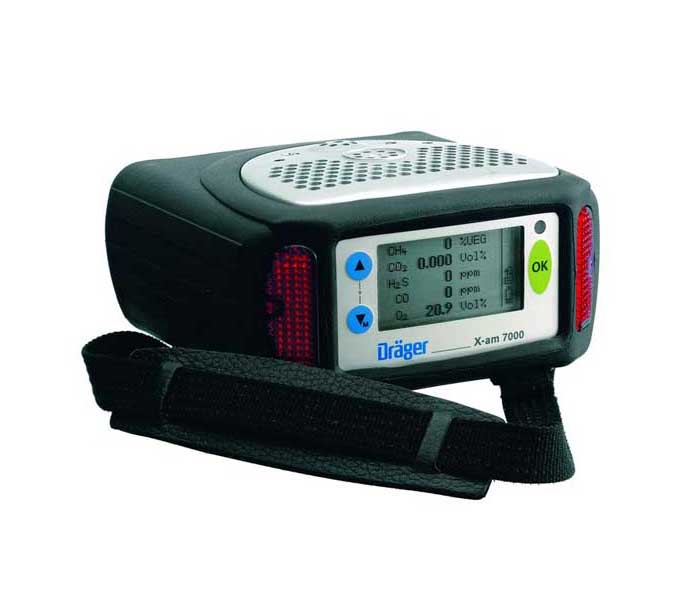

Drager X-am 7000
Drager X-am 7000 is the innovative solution for the simultaneous and continuous
detection of up to five gases. A combination of more than 25 sensors allows flexible
solutions to individual monitoring tasks. The Drager X-am 7000 can be equipped
with three electrochemical, and two catalytic bead, infrared or photoionisation
sensors. It is the ideal companion in a great number of applications where reliable
monitoring of Oxygen, toxic and combustibles gases and vapors in the ambient air
is necessary.
Flexibility through sensor variety
The extensive portfolio of over 25 different
DragerSensors allows the detection of
more than 100 gases and vapors. The
measuring range of the EC, Cat-Ex, IR and
PID sensors can be changed to another
gas within a list of gases by a push of a
button - without the necessity of re-calibrating.
In this way the instrument can be
adapted easily to various applications.
DragerSensors are renowned for fast
response, minor cross sensitivities, high
accuracy and long life.
Intelligent and interchangeable sensors
Each sensor is recognized automatically by
the instrument. All sensors are pre-calibrated,
and a reconfiguration of the Drager
X-am 7000 is done by simply changing a
sensor. I.e. no additional service or maintenance
is necessary.
Intuitive software functions
The software menu of the Drager X-am
7000 was designed in partnership with our
customers making it simple and easy to
use. Functions such as TWA and STEL
values, as well as functions, like peak hold
can be viewed or switched on quickly and
with minimal training.
Leak search functionality
Searching a leak has been revolutionized by
the Drager X-am 7000. In the trackingmode,
the instrument generates an increasing
or decreasing rate of beeps, depending
on the gas concentration detected.
Rugged and waterproof
Additional to the built-in dust and splash
water protection, the Drager X-am 7000
can be submersed without damage. A specially
designed rubber-boot protects the
instrument against damage from a drop of
1.5 m (5 ft.).
Built for longevity
NThe completely new design of the rechargeable
battery block with intelligent charging
management guarantees full functionality of
the instrument over a period of up to 20
hours (depending on the battery type). An
alcaline battery pack is also available. The
DragerSensors used in the Drager X-am
7000 have a typical life of over 5 years. If,
in time, an exchange is necessary, the modular
approach of the instrument allows this
in a few simple steps.
|
|

Multiple Warning Systems
Alarm conditions can not be ignored
because of the sound of an extremely loud
multi-tone horn. In addition the visual
alarm can be seen through 360° ensuring
it attracts the users attention. By generating
a life-signal every six seconds the
Drager X-am 7000 confirms it is functioning
normally.
Information at a glance
The large graphic Display and the alarm autozoom function guarantee easy recognition
of the values and symbols displayed
for immediate judgement about the situation
or hazards. All information is provided
in plain text.
Data management
A built-in data memory logs up to 3000
sets of values - that is data logging of 100
hours when recording one set per minute.
The data can be transmitted and evaluated
on a PC using an infrared interface together
with the Drager GasVision software
package.
Strong Built-in Pump
The built-in high power pump allows to
sample gas through an up to 45 m/150 ft.
long tube. The operation of the pump is
continuously monitored, and the instrument
will generate an alarm if the flow is too
low.

Datasheet Manual
|
Ordering Information
Four gas IREx, O2, CO, H2S, diffusion, standard battery, datalogging 3359319
Four gas CatEx, O2, CO, H2S, diffusion, standard battery, datalogging 3359320
Four gas IREx, O2, CO, H2S, pumped, extended battery, datalogging 3359321
Four gas CatEx, O2, CO, H2S, pumped, extended battery, datalogging 3359322
Four gas IREx, O2, CO, H2S, diffusion, standard battery, non-datalogging 3359323
Four gas CatEx, O2, CO, H2S, diffusion, standard battery, non-datalogging 3359324
Four gas IREx O2, CO, H2S, pumped, extended battery, non-datalogging 3359325
Four gas CatEx, O2, CO, H2S, pumped, extended battery, non-datalogging 3359326
Three gas Marine version O2, CO, H2S diffusion, standard battery 3359327
X-am 7000 Diffusion 3310836
X-am 7000 Diffusion data-logging 3310837
X-am 7000 Pumped 3310839
X-am 7000 Pumped data-logging 3310838
X-am 7000 Marine Version 3354585
|
